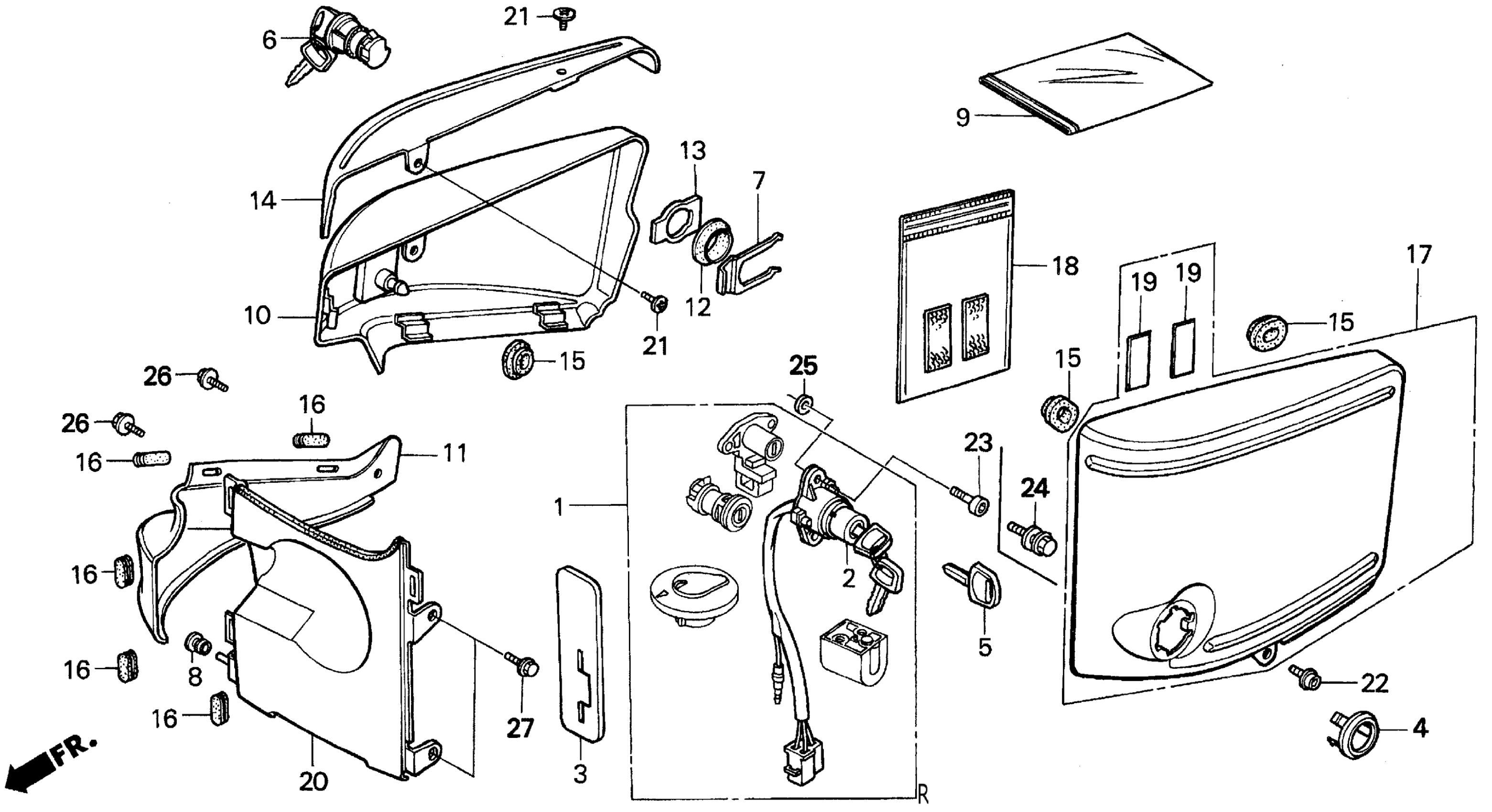

Honda VT1100CA (95) SHADOW 1100, USA, VIN# 1HFSC180-SA900001 VT1100C SIDE COVER Diagram

#

Description
Price

1

LOCK SET (NOT AVAILABLE)

35010-MAA-670

Unavailable

2

SWITCH ASSY., COMBINATION (NOT AVAILABLE)

35100-MAA-007

Unavailable

3

COVER, IGNITION SWITCH (SOURCE: VINTAGE PARTS INC.)

35104-MM8-000

Unavailable

4

RING, IGNITION SWITCH

35106-MM8-000

$41.42

5

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$9.74

5

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$9.74

6

LOCK, FILLER LID

37220-439-007

$54.29

7

SPRING, LOCK KEY SETTING

37222-463-000

$8.05

8

BUSH, ARM

52237-GJ5-003

Unavailable

9

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

10

COVER A, R. SIDE

83500-MM8-880

Unavailable

11

COVER B, R. SIDE

83501-MM8-000

$284.30

12

RUBBER, SIDE COVER LOCK

83502-MM8-000

$17.90

13

COLLAR, LOCK SET

83503-MM8-000

$1.49

14

COVER, SIDE (OUTER) This part replaces 83510-MM8-880.

83510-MM8-000

Unavailable

15

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

16

GROMMET, SIDE COVER

83602-MM8-000

$4.43

17

COVER ASSY., L. SIDE

83610-MM8-880

Unavailable

18

BAG, OWNER'S MANUAL

83642-ML0-000

$9.43

19

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.92

20

COVER, CENTER This part replaces 83700-MM8-000.

83700-MAA-A00

$569.05

20

COVER, CENTER This part replaces 83700-MM8-880.

83700-MAA-A00

$569.05

21

SCREW, SPECIAL (5X12)

90001-MG9-670

$4.94

22

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.66

23

BOLT, SOCKET (6X20)

90072-ME9-000

$4.93

25

COLLAR, SEAT

91552-763-A00

$2.65

26

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

27

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
