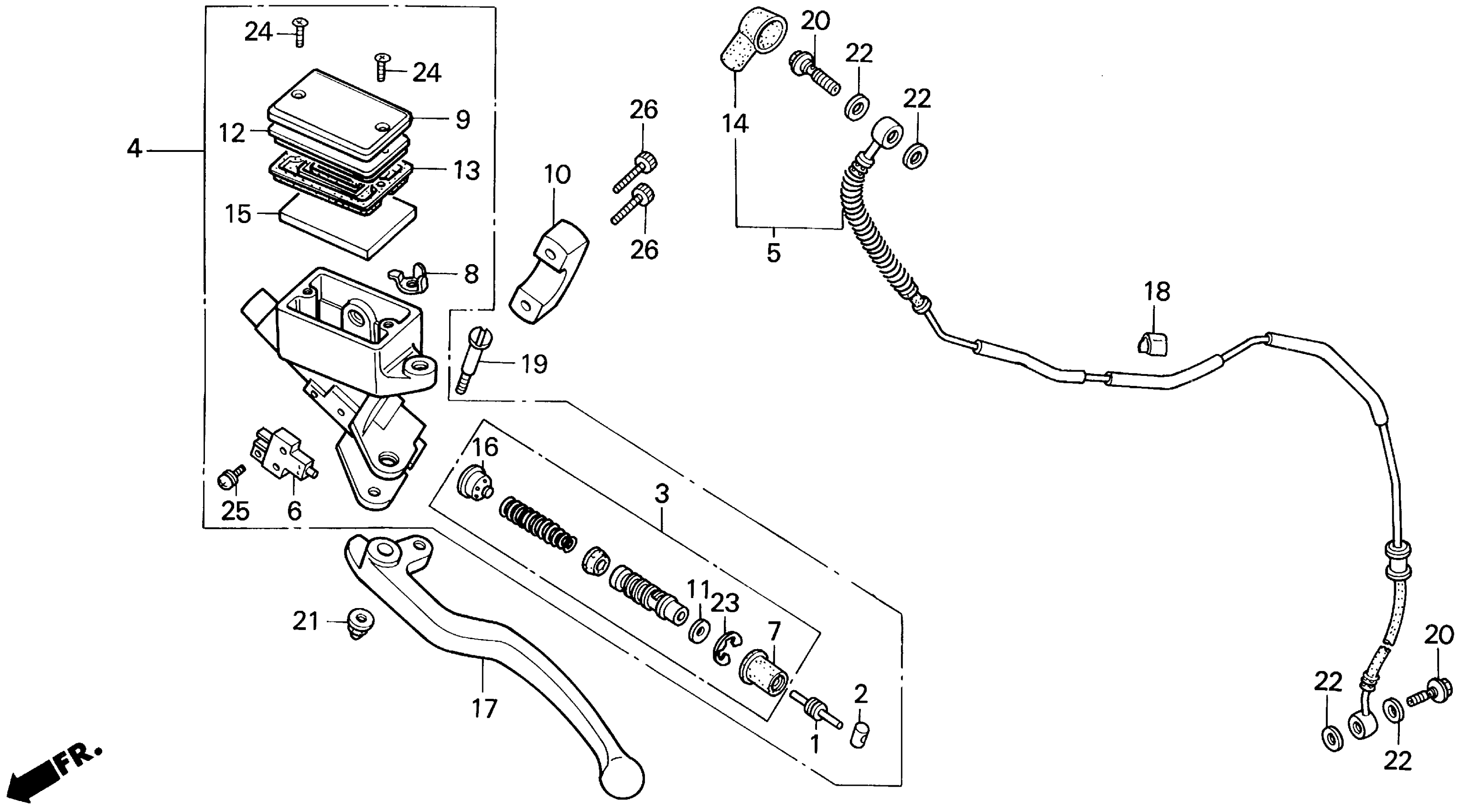

Honda VT1100CA (95) SHADOW 1100, USA, VIN# 1HFSC180-SA900001 VT1100C CLUTCH MASTER CYL. 95-96 Diagram

#

Description
Price

1

ROD, PUSH

22884-MB0-006

$20.66

2

BUSH

22885-MB0-006

$12.95

3

PISTON SET, CLUTCH MASTER CYLINDER

22886-MG8-671

Unavailable

4

MASTER CYLINDER SUB-ASSY., CLUTCH (NOT AVAILABLE)

22890-MAA-405

Unavailable

5

PIPE, CLUTCH (NOT AVAILABLE)

22900-MM8-000

Unavailable

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$18.22

7

BOOT

45504-410-003

$12.16

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP, MASTER CYLINDER

45513-MM8-671

Unavailable

10

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-MM8-671

Unavailable

11

PLATE, STOPPER

45518-MB0-006

$1.84

12

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

13

DIAPHRAGM

45520-MA5-672

$18.13

14

BOOT, MASTER CYLINDER

45522-422-000

$8.68

15

FLOAT, FR. MASTER CYLINDER (NOT AVAILABLE)

45523-MG9-006

Unavailable

16

VALVE, CHECK (NOT AVAILABLE)

46140-MG8-006

Unavailable

17

LEVER, L. HANDLE This part replaces 53178-MJ0-921.

53178-MM5-006

$21.90

17

LEVER, L. HANDLE

53178-MM5-006

$21.90

18

CLAMP, MICROPHONE WIRE (NOT AVAILABLE)

61108-MJ1-830

Unavailable

19

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

20

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

20

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

21

NUT, CAP (6MM)

90201-415-000

$2.05

22

WASHER, OIL BOLT

90545-300-000

$3.99

23

CIRCLIP (INNER) (18MM)

90651-377-003

$1.93

24

SCREW, FLAT (4X12)

93600-04012-1A

$1.49

25

SCREW-WASHER (4X12)

93893-04012-07

$1.49

25

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

26

BOLT, SOCKET (6X22)

96600-06022-10

$2.10

26

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$2.10
