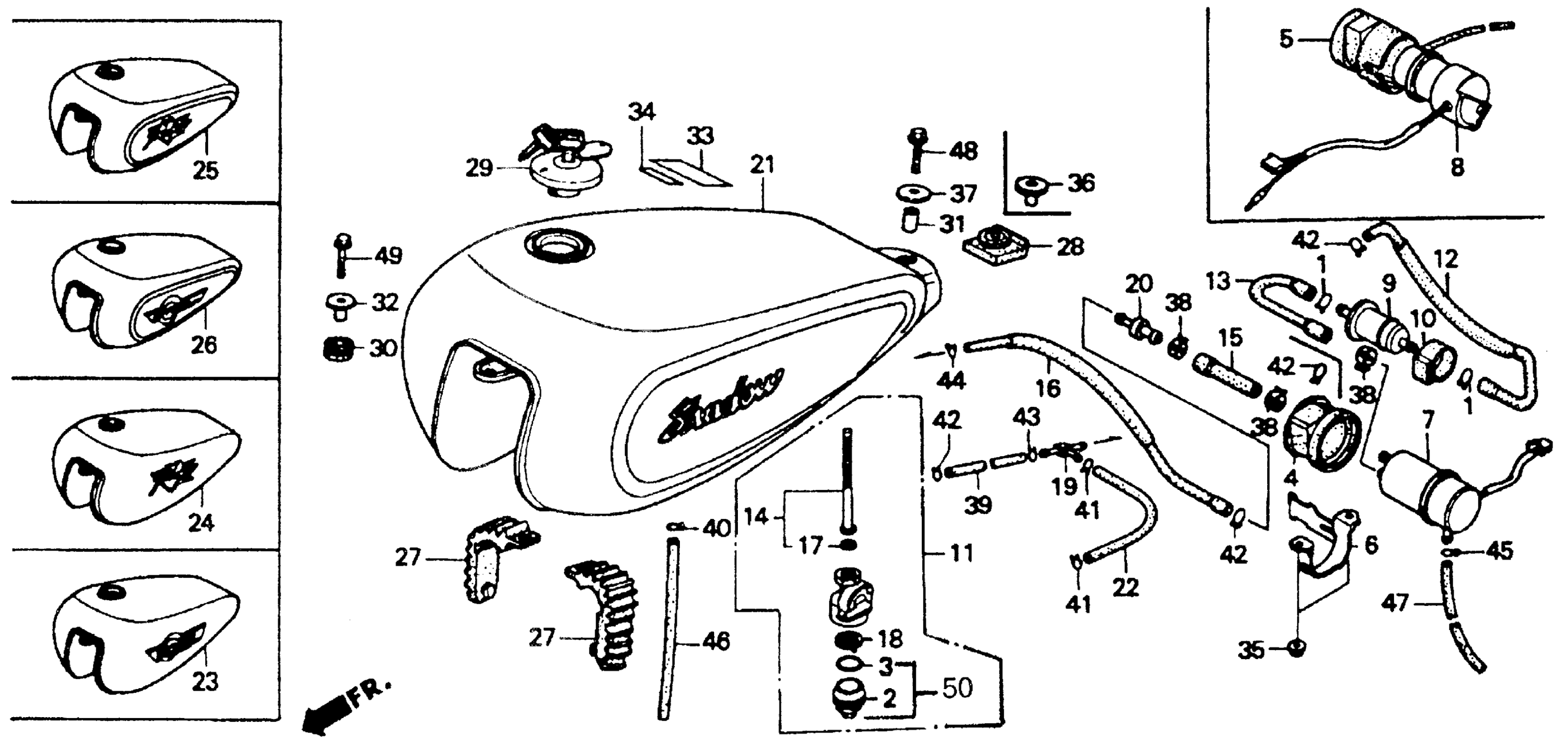

Honda VT1100CA (94) SHADOW 1100, JPN, VIN# 1HFSC180-RA800001 FUEL TANK Diagram

CLIP, OIL DRAIN

15707-634-000

$5.13

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

RUBBER, FUEL PUMP

16701-MAA-000

$20.06

BAND, FUEL PUMP

16703-MM8-000

Unavailable

PUMP, FUEL (MSDS) This part replaces 16710-MAA-005.

16710-MAA-843

$261.67

PUMP, FUEL (MSDS) This part replaces 16710-MAA-842.

16710-MAA-843

$261.67

PUMP, FUEL

16710-MAA-843

$261.67

FILTER, FUEL

16900-MG8-003

$23.49

RUBBER, FUEL STRAINER

16905-MG7-000

$7.95

PETCOCK ASSY.

16950-MM8-020

$114.42

TUBE A, FUEL

16951-MM8-000

Unavailable

TUBE B, FUEL

16952-MAA-000

Unavailable

FILTER SET, FUEL This part replaces 16952-422-015.

16952-469-005

Unavailable

FILTER SET, FUEL

16952-469-005

Unavailable

TUBE C, FUEL

16953-MAA-000

Unavailable

TUBE D, FUEL

16954-MAA-000

Unavailable

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

FILTER, CUP

16959-HB3-005

Unavailable

JOINT, FUEL TUBE

16961-MK7-000

$21.68

JOINT, FUEL TUBE

16966-MR1-000

$7.57

TUBE, L. CARBURETOR FUEL

17515-MG8-000

$11.70

TANK SET, FUEL (NH1BA) *NH1* (TYPE1) (WL) (BLACK)

17520-MAA-670ZA

Unavailable

TANK SET, FUEL (R176KA) (TYPE11) (WL)

17520-MAA-670ZB

Unavailable

TANK SET, FUEL (R176BB) (TYPE23) (WL)

17520-MAA-670ZD

Unavailable

TANK SET, FUEL (B138BB) (TYPE26) (WL)

17520-MAA-670ZE

Unavailable

TANK SET, FUEL (NH1AB) *NH1* (TYPE35) (WL) (BLACK)

17520-MAA-670ZK

Unavailable

TANK SET, FUEL (R176AB) (TYPE36) (WL)

17520-MAA-670ZL

Unavailable

TANK SET, FUEL (B138AB) (TYPE37) (WL)

17520-MAA-670ZM

Unavailable

TANK SET, FUEL (PB255AB) (TYPE40) (WL)

17520-MAA-670ZN

Unavailable

TANK SET, FUEL (BG101BB) (TYPE51) (WL)

17520-MAA-670YA

Unavailable

TANK SET, FUEL (BG101AB) (TYPE52) (WL)

17520-MAA-670YB

Unavailable

TANK SET, FUEL (B142BB) (TYPE49) (WL)

17520-MAA-670ZX

Unavailable

TANK SET, FUEL (B142AB) (TYPE50) (WL)

17520-MAA-670ZY

Unavailable

TANK SET, FUEL (R176BA) (TYPE9) (WL)

17520-MAA-670YC

Unavailable

TANK SET, FUEL (B138BA) (TYPE12) (WL)

17520-MAA-670ZC

Unavailable

TANK SET, FUEL (NH1AA) *NH1* (TYPE29) (WL) (BLACK)

17520-MAA-670ZF

Unavailable

TANK SET, FUEL (R176AA) (TYPE30) (WL)

17520-MAA-670ZG

Unavailable

TANK SET, FUEL (B138AA) (TYPE31) (WL)

17520-MAA-670ZH

Unavailable

TANK SET, FUEL (B138EA) (TYPE34) (WL)

17520-MAA-670ZJ

Unavailable

TANK SET, FUEL (B142BA) (TYPE43) (WL)

17520-MAA-670ZR

Unavailable

TANK SET, FUEL (B142AA) (TYPE44) (WL)

17520-MAA-670ZS

Unavailable

TANK SET, FUEL (BG101BA) (TYPE45) (WL)

17520-MAA-670ZT

Unavailable

TANK SET, FUEL (BG101AA) (TYPE46) (WL)

17520-MAA-670ZU

Unavailable

RUBBER, FR. FUEL TANK

17611-MM8-000

$29.62

RUBBER, RR. FUEL TANK

17613-MM8-000

$39.01

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$70.93

RUBBER, HEADLIGHT BRACKET

33157-MJ0-000

$5.79

COLLAR, FORK RUBBER BUSH

52486-074-000

$3.77

COLLAR, SETTING

61104-422-000

$6.91

LABEL, DRIVE (TYPE2)

87560-MW0-670ZB

Unavailable

LABEL, FUEL (TYPEG)

87586-MR6-670ZA

$3.24

NUT, U (6MM)

90301-473-003

$4.07

WASHER, TANK MOUNTING

90455-896-700

$3.13

CLAMP, CANISTER HOSE

90682-SA0-671

$7.67

BULK HOSE, FUEL (5.5X3000) (5.5X65)

95001-55003-60M

$47.32

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (B10)

95002-02100

$1.90

CLIP, TUBE (D12)

95002-41200-08

$2.34

CLIP, TUBE (C9)

95002-50000

$1.49

BULK HOSE, VACUUM (4.5X1000) (4.5X740)

95005-45001-10M

$23.47

BULK HOSE, VACUUM (5X3000) (5X250)

95005-50003-30M

$20.85

BOLT, FLANGE (8X35)

95701-08035-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

CUP SET, FUEL STRAINER

16953-GT4-305

$24.18
