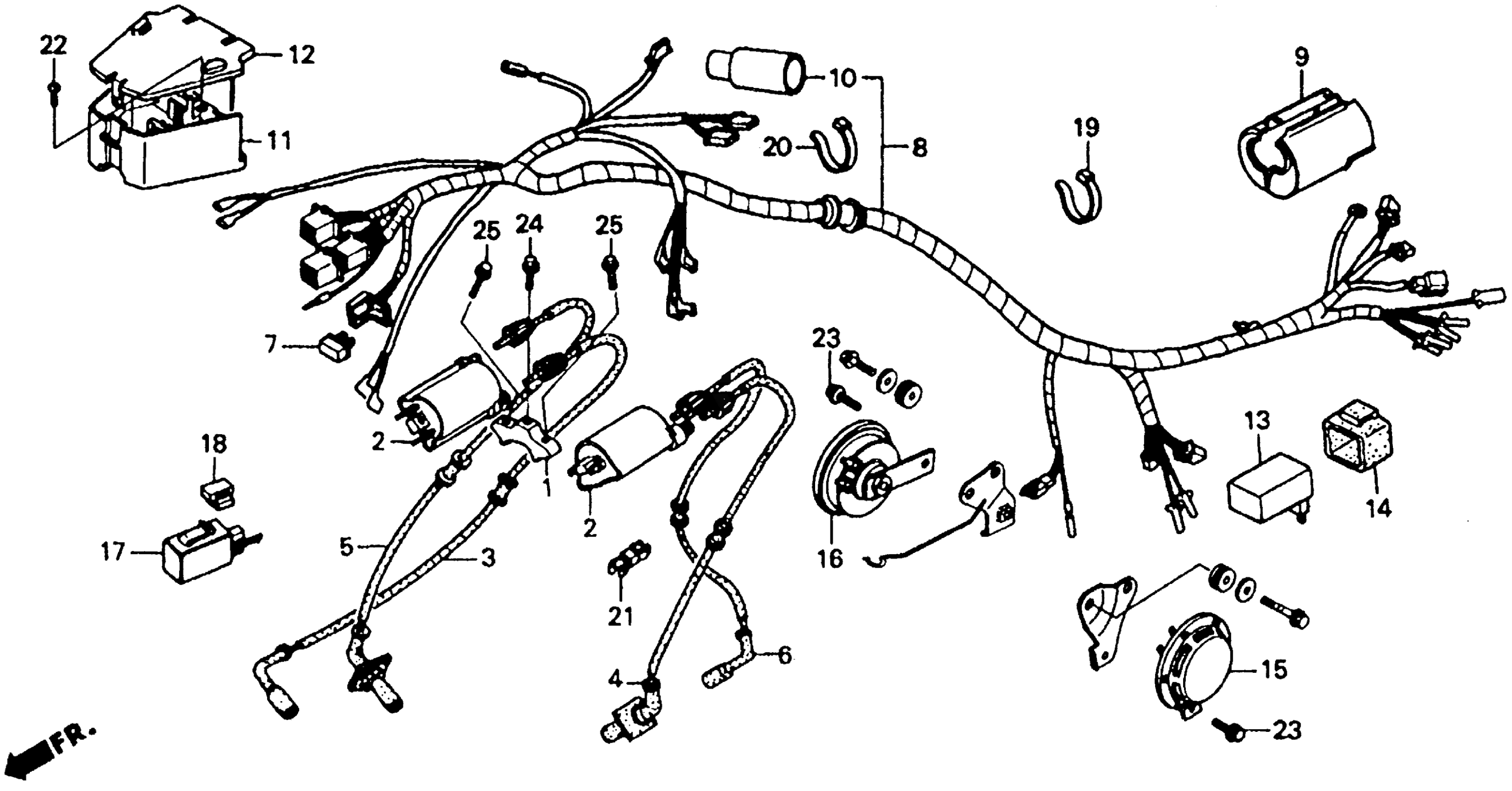

Honda VT1100CA (90) SHADOW 1100, USA, VIN# 1HFSC180-LA500001 TO 1HFSC180-LA501740 WIRE HARNESS Diagram

#

Description
Price

1

BRACKET, IGNITION COIL

30505-MM8-000

Unavailable

2

COIL, IGNITION

30510-MM8-003

$100.62

3

CAP ASSY. 1, IGNITION

30751-MM8-770

$31.57

4

CAP ASSY. 2, IGNITION

30752-MM8-770

Unavailable

5

CAP ASSY. 3, IGNITION

30753-MM8-770

$60.06

6

CAP ASSY. 4, IGNITION

30754-MM8-740

Unavailable

6

CAP ASSY. 4, IGNITION This part replaces 30754-MM8-770.

30754-MM8-740

Unavailable

7

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$26.68

7

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$26.68

7

RECTIFIER, SILICON

31700-MM8-610

$22.75

8

WIRE HARNESS

32100-MM8-680

Unavailable

9

BOX, RR. CONNECTOR

32102-MM8-000

Unavailable

11

BOX, FR. CONNECTOR

32510-MM8-000

Unavailable

12

COVER, FR. CONNECTOR BOX

32511-MM8-000

$13.71

15

HORN ASSY. (HIGH) (SOURCE: VINTAGE PARTS INC.) This part replaces 38110-MM8-680.

38110-MM8-612

Unavailable

16

HORN ASSY. (LOW)

38120-MM8-680

Unavailable

17

RELAY, TURN SIGNAL (TATEISHI) This part replaces 38301-ME9-771.

38301-MF5-771

$73.32

17

RELAY, TURN SIGNAL (TATEISHI)

38301-MF5-771

$73.32

17

RELAY, TURN SIGNAL (TATEISHI) This part replaces 38301-MF5-773.

38301-MF5-771

$73.32

18

SUSPENSION, TURN SIGNAL RELAY

38306-GE7-000

$4.42

18

SUSPENSION, TURN SIGNAL RELAY

38306-MF5-770

$5.26

20

BAND, WIRE

90651-KV6-003

$2.80

21

CLIP, CABLE

90655-MB1-920

Unavailable

22

SCREW, PAN (5X8)

93500-05008-0A

$0.80

22

SCREW, PAN (5X8) This part replaces 93500-05008-1A.

93500-05008-0A

$0.80

23

BOLT, FLANGE (8X16)

95701-08016-00

$1.64

24

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

25

BOLT, FLANGE (6X20)

95701-06020-08

$0.35
