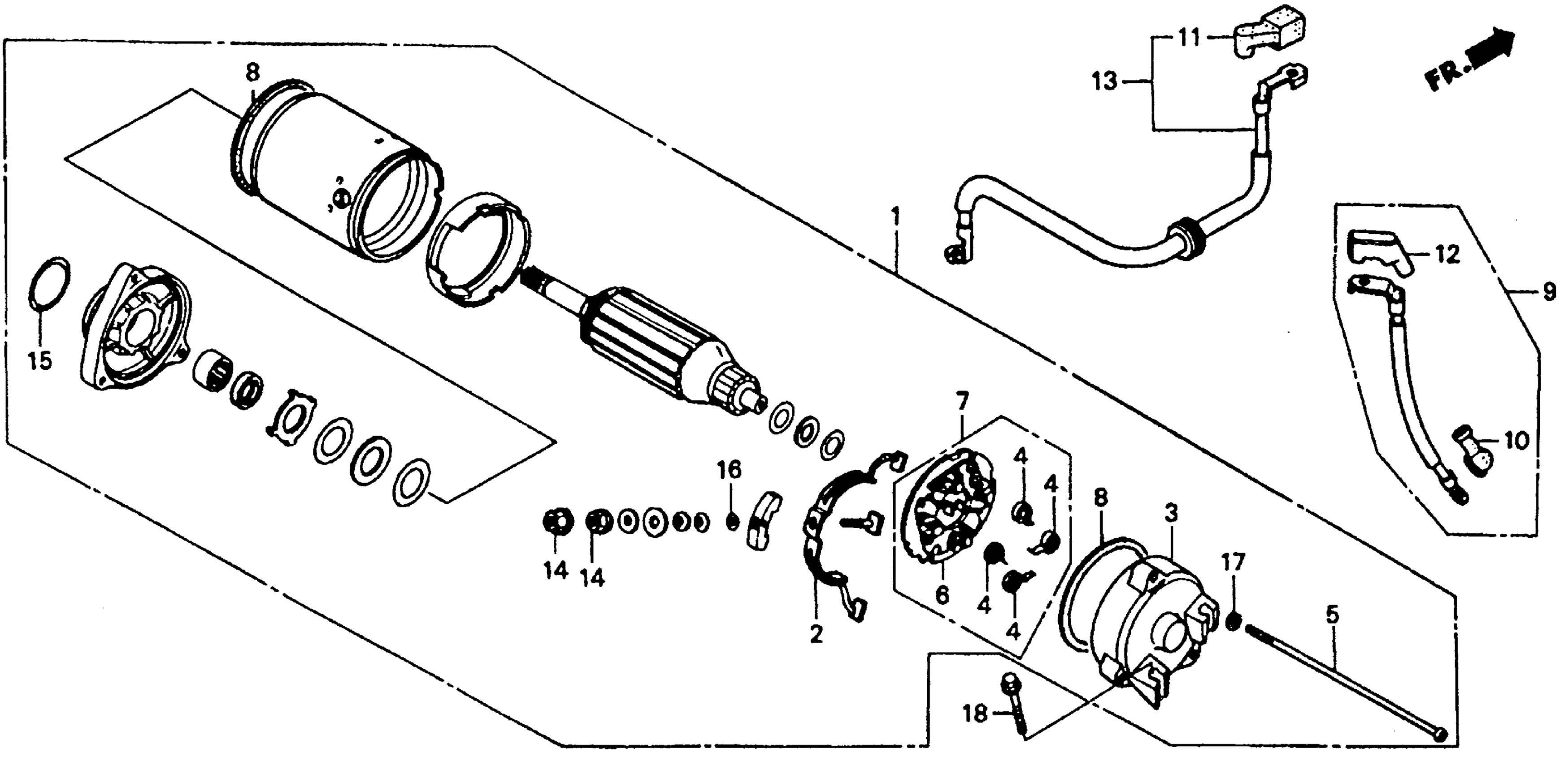

Honda VT1100CA (90) SHADOW 1100, USA, VIN# 1HFSC180-LA500001 TO 1HFSC180-LA501740 STARTER MOTOR Diagram

MOTOR ASSY., STARTER

31200-MAA-008

Unavailable

MOTOR ASSY., STARTER This part replaces 31200-MM8-008.

31200-MAA-008

Unavailable

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$31.18

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31201-MG8-008.

31201-KG7-000

$31.18

BRACKET, RR.

31203-MK7-008

Unavailable

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

BOLT, SETTING

31205-MG7-000

Unavailable

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MG8-008.

31206-MM5-008

$19.33

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

RING, SEAL

31207-179-711

$4.22

CABLE, STARTER MOTOR

32410-MM8-000

Unavailable

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

COVER, BATTERY GROUND

32417-MM8-000

Unavailable

COVER A, MAGNETIC SWITCH TERMINAL

32418-MM8-000

Unavailable

CABLE, BATTERY GROUND

32601-MM8-000

Unavailable

NUT-WASHER (6MM)

90071-MB0-000

$1.97

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

O-RING (24.4X3.1)

91312-MG7-003

$6.34

O-RING

91320-MB0-000

$2.43

WASHER, SPRING (5MM)

94111-05000

$1.49

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
