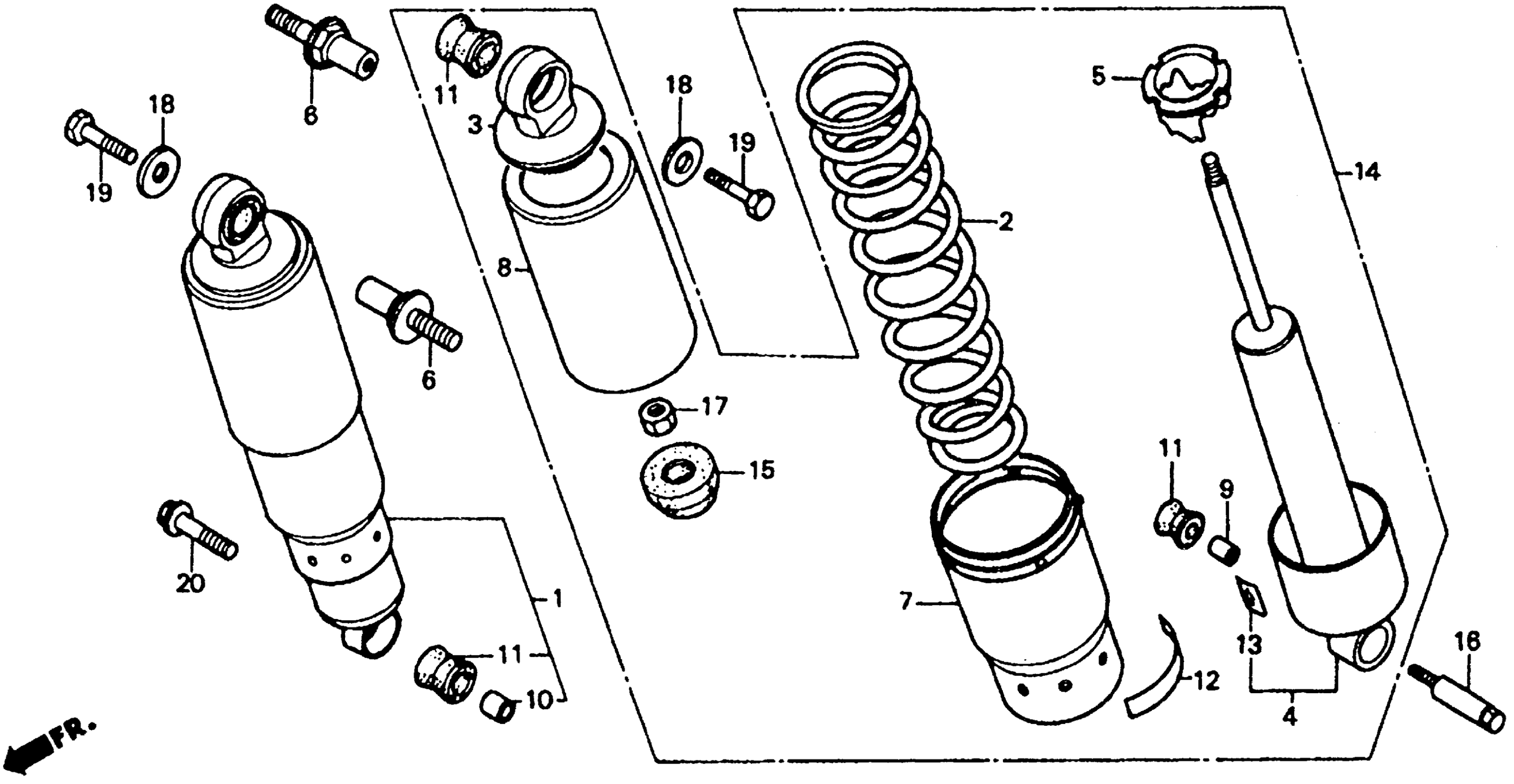

Honda VT1100CA (90) SHADOW 1100, USA, VIN# 1HFSC180-LA500001 TO 1HFSC180-LA501740 REAR SHOCK ASORBER Diagram

SHOCK ABSORBER ASSY., R. RR. (SHOWA) (NOT AVAILABLE)

52400-MM8-013

Unavailable

SPRING, RR. SHOCK ABSORBER (28.42N/MM,2.9KGF/MM) (SHOWA) (NOT AVAILABLE)

52401-MM8-003

Unavailable

JOINT (UPPER) (SHOWA)

52403-MM8-013

Unavailable

DAMPER, RR. (SHOWA)

52410-MM8-003

Unavailable

ADJUSTER, SPRING (SHOWA)

52422-MM8-003

Unavailable

BOLT, RR. SHOCK ABSORBER This part replaces 52452-MM8-000.

52452-MAH-A40

$22.75

SEAT, SPRING (SHOWA) This part replaces 52458-MM8-003.

52458-MM8-881

Unavailable

SEAT, SPRING (SHOWA)

52458-MM8-881

Unavailable

CASE, RR. SHOCK ABSORBER (UPPER)

52460-MM8-003

Unavailable

COLLAR, RR. SHOCK ABSORBER

52486-MG9-671

$10.62

COLLAR, RR. SHOCK ABSORBER

52486-463-000

$7.77

BUSH, RR. SHOCK ABSORBER

52489-KR3-003

$5.08

LABEL A

52496-MB4-003

$7.56

LABEL B, RR. SHOCK ABSORBER

52497-KR3-003

Unavailable

SHOCK ABSORBER ASSY., L. RR. (SHOWA)

52500-MM8-013

Unavailable

RUBBER, STOPPER (NOT AVAILABLE)

52517-410-003

Unavailable

BOLT, RR. SHOCK ABSORBER

90159-MG9-000

$17.60

NUT, HEX. (11MM) (NOT AVAILABLE)

90301-376-003

Unavailable

WASHER (8.5X26)

90504-ME4-000

$3.26

BOLT, HEX. (8X35)

95301-08012-02

Unavailable

BOLT, FLANGE (10X35) This part replaces 95800-10035-02.

95801-10035-02

$2.31
