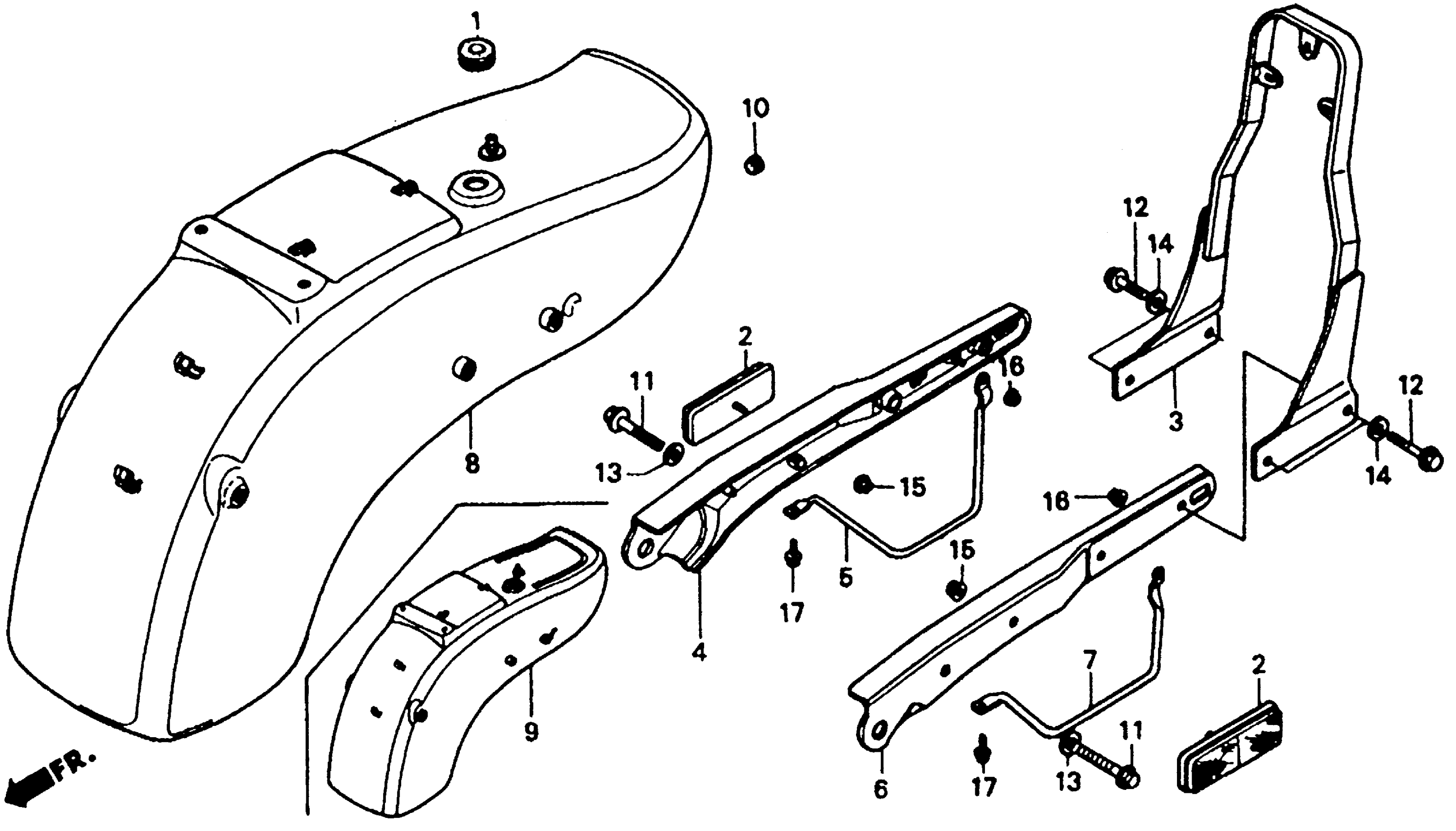

Honda VT1100CA (90) SHADOW 1100, USA, VIN# 1HFSC180-LA500001 TO 1HFSC180-LA501740 REAR FENDER Diagram

GROMMET, WIRE HARNESS

32983-447-000

$2.92

REFLECTOR, REFLEX

33741-MM8-671

Unavailable

GRAB RAIL (UPPER) This part replaces 77320-MM8-000.

77320-MM8-880

$165.61

GRAB RAIL (UPPER)

77320-MM8-880

$165.61

GRAB RAIL, R.

77330-MM8-000

$86.43

WIRE, R. GRAB RAIL

77331-MM8-000

Unavailable

GRAB RAIL, L.

77340-MM8-000

Unavailable

WIRE, L. GRAB RAIL

77341-MM8-000

Unavailable

FENDER, RR. *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

80100-MM8-000ZB

Unavailable

FENDER, RR. *PB210M* (INDIAN LAKE BLUE METALLIC) (NOT AVAILABLE)

80100-MM8-000ZC

Unavailable

RUBBER, NUMBER PLATE BRACKET CUSHION

84702-MF2-670

$4.57

BOLT, SPECIAL FLANGE (10X34)

90101-MM8-000

$5.19

BOLT, SPECIAL FLANGE (8X30)

90106-MB3-000

$4.63

WASHER, PLAIN (10MM)

90502-MM8-610

$2.92

WASHER, PLAIN (8MM)

90501-MM8-610

$2.33

NUT, FLANGE (5MM)

94050-05000

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X14)

96001-06014-07

$1.49
