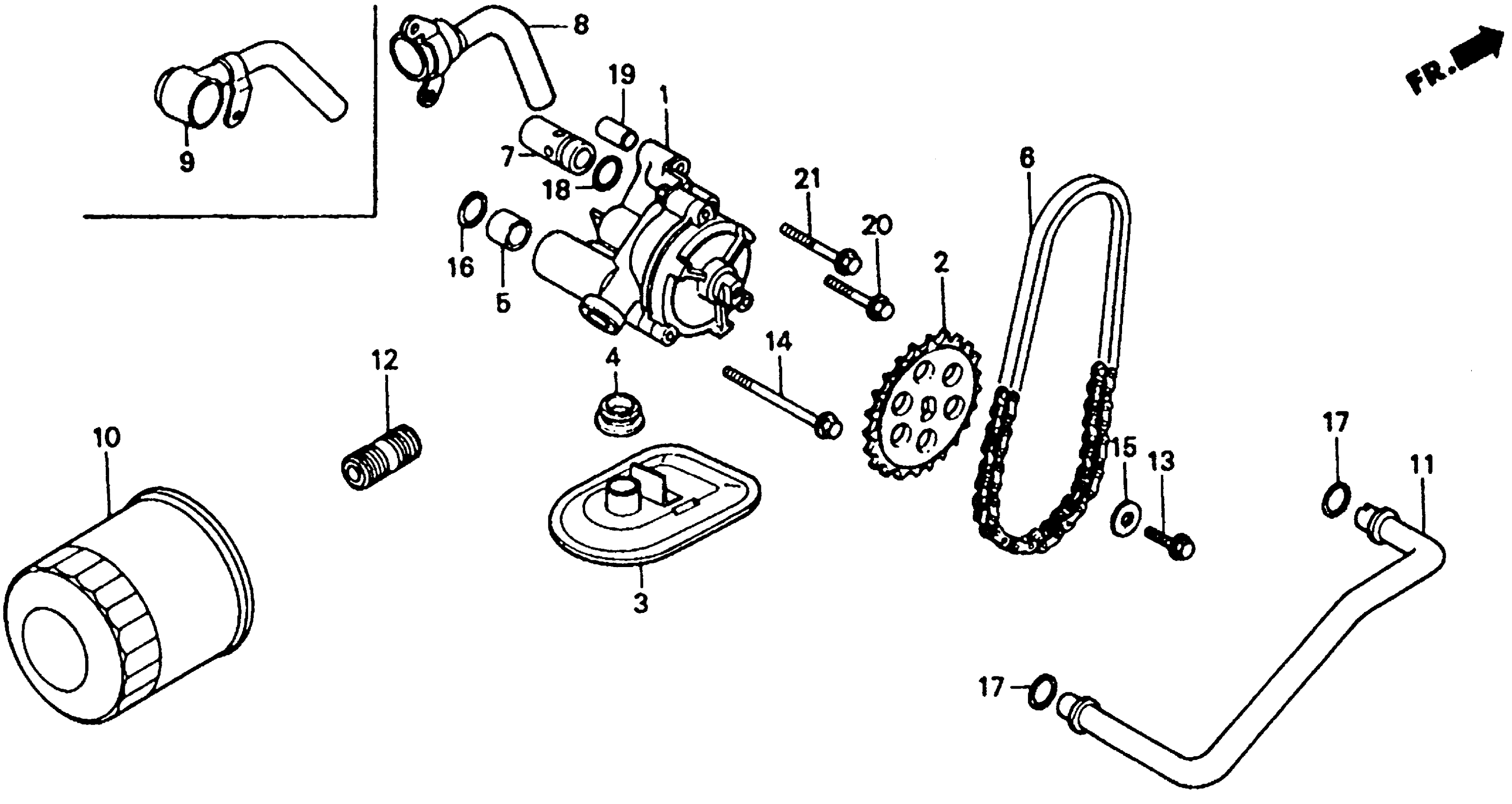

Honda VT1100CA (90) SHADOW 1100, USA, VIN# 1HFSC180-LA500001 TO 1HFSC180-LA501740 OIL PUMP Diagram

PUMP ASSY., OIL

15100-MG8-000

Unavailable

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MB0-010

Unavailable

STRAINER, OIL

15153-MK7-770

Unavailable

GASKET, OIL STRAINER

15154-425-000

$7.99

COLLAR, O-RING

15155-300-000

$3.47

CHAIN, STARTING (56L) This part replaces 15161-ME5-003.

28101-KB4-671

$38.46

VALVE ASSY., RELIEF

15220-ME9-770

$43.41

PIPE, OIL RELIEF

15240-MG8-000

Unavailable

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-003.

15410-MFJ-D02

$15.84

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$15.84

PIPE, OIL

15511-MG8-000

$21.32

BOSS, OIL FILTER

90019-MB0-000

$8.61

BOLT, HEX. (6X16)

90021-KE8-010

$2.28

BOLT, FLANGE (6X75)

90052-ME9-000

Unavailable

WASHER (6X2.3)

90488-MB0-000

$4.37

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (14.6X3.6) (NOK) This part replaces 91309-MB0-003.

91308-MA6-005

$4.19

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

O-RING (14.8X2.2)

91313-MG7-004

$3.67

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
