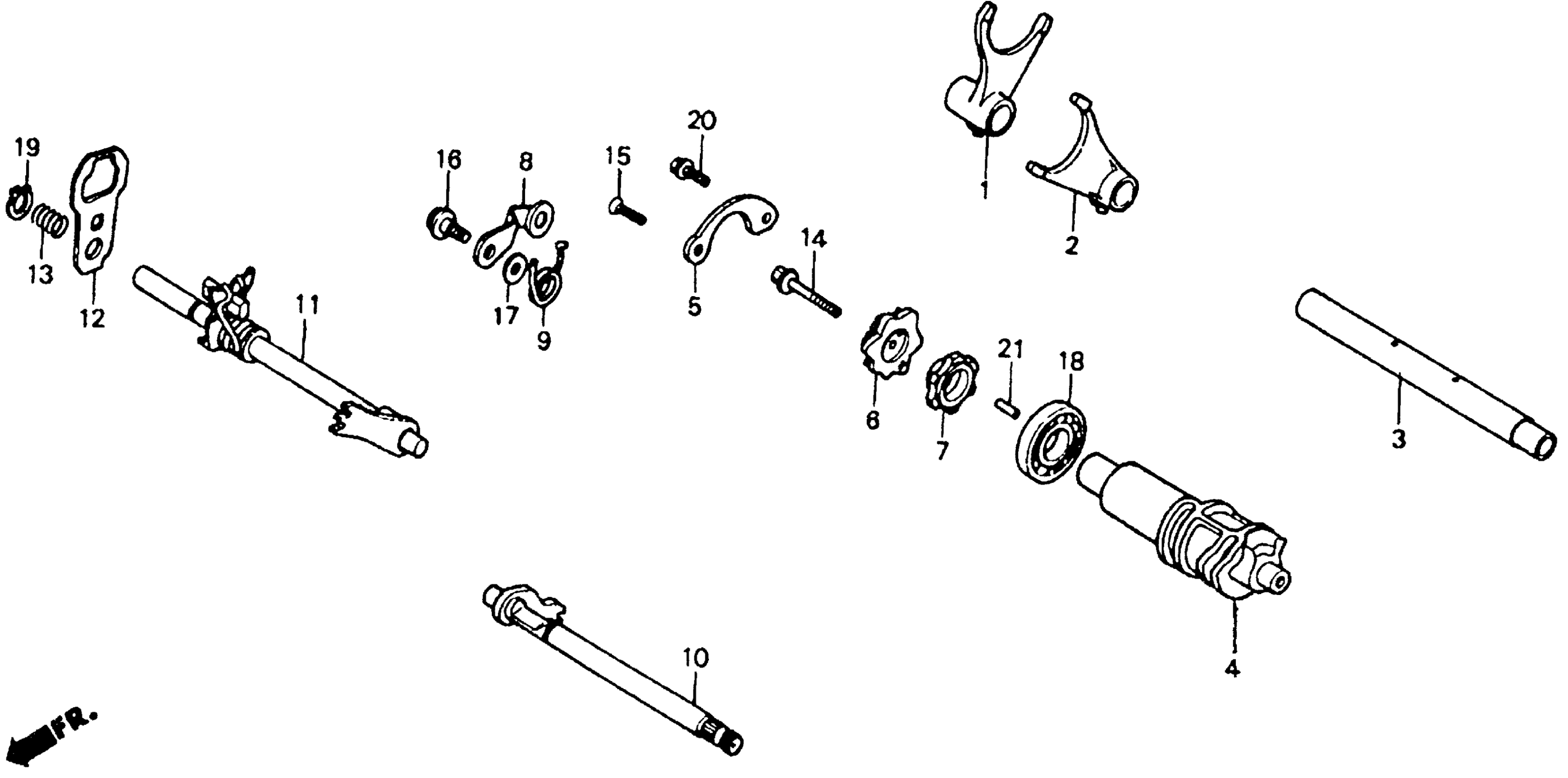

Honda VT1100CA (90) SHADOW 1100, USA, VIN# 1HFSC180-LA500001 TO 1HFSC180-LA501740 GEARSHIFT DRUM Diagram

FORK, R. GEARSHIFT

24211-MM8-000

Unavailable

FORK, CENTER GEARSHIFT This part replaces 24212-MG8-000.

24212-MAA-A00

Unavailable

SHAFT, GEARSHIFT FORK

24261-MM8-000

Unavailable

DRUM, GEARSHIFT

24302-MM8-000

Unavailable

PLATE, SHIFT DRUM BEARING SETTING

24310-MK7-670

$10.13

CAM, GEARSHIFT

24411-MM8-000

Unavailable

ROTOR, POSITIVE STOPPER

24413-KA6-003

Unavailable

STOPPER, GEARSHIFT DRUM

24430-MG8-000

Unavailable

SPRING, SHIFT DRUM STOPPER

24435-MM8-000

Unavailable

SPINDLE, GEARSHIFT (A)

24610-MG8-000

Unavailable

SPINDLE B, GEARSHIFT

24615-MG8-000

Unavailable

PLATE, GEARSHIFT

24621-MG8-000

Unavailable

SPRING, GEARSHIFT PLATE

24631-362-000

Unavailable

BOLT, FLANGE (6X32)

90021-ME9-000

$2.93

SCREW, FLAT (6X16)

90022-ME9-000

$2.30

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.41

BEARING, RADIAL BALL (17X32X7)

91006-MCK-A01

Unavailable

BEARING, RADIAL BALL (17X32X7) This part replaces 91006-MG8-003.

91006-MCK-A01

Unavailable

CIRCLIP (OUTER) (12MM)

94510-12000

$1.78

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

ROLLER (3X10)

96222-30100

$1.49
