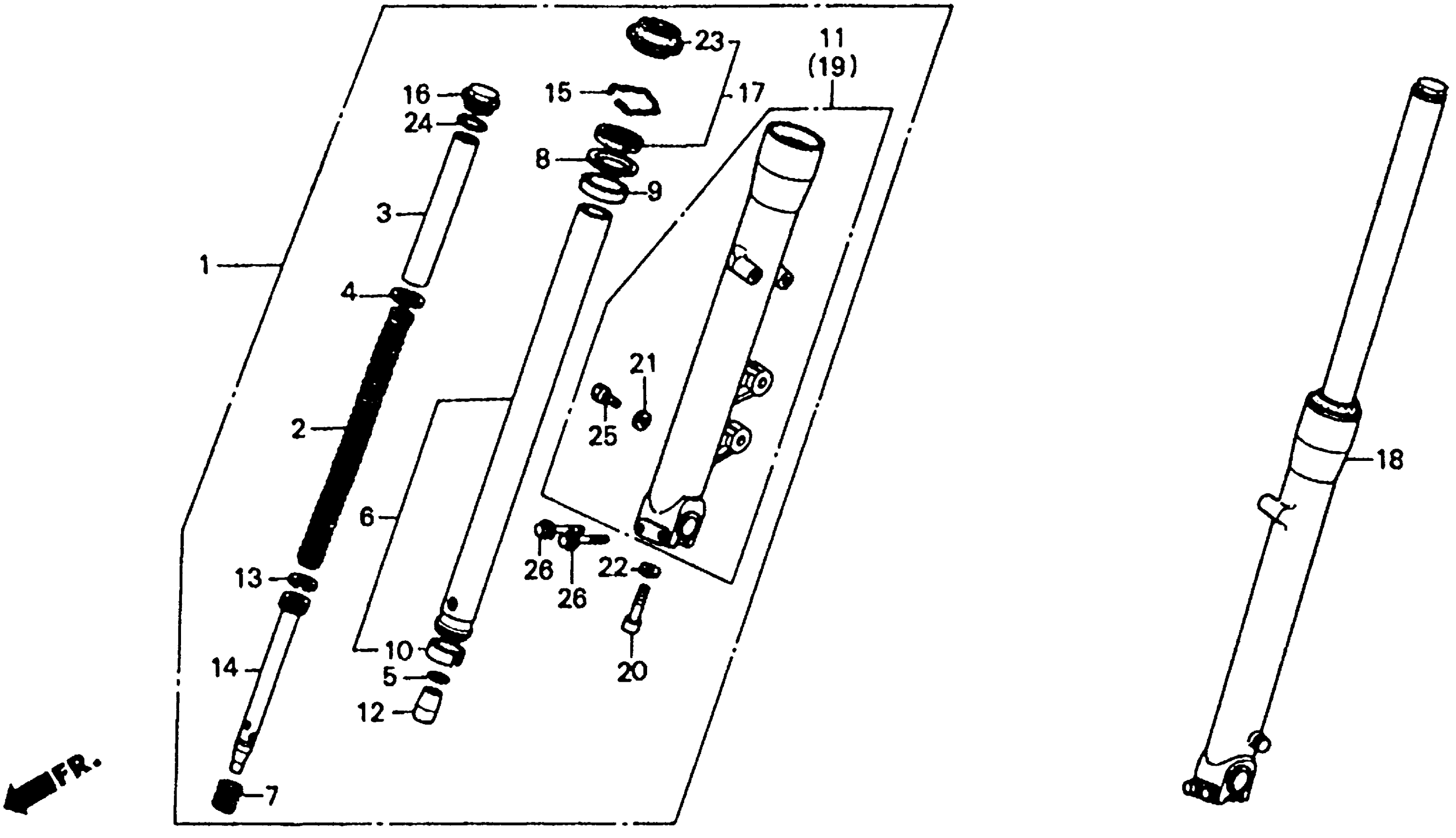

Honda VT1100CA (90) SHADOW 1100, USA, VIN# 1HFSC180-LA500001 TO 1HFSC180-LA501740 FRONT FORK Diagram

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-MM8-003

Unavailable

SPRING, FR. FORK (0.4, 0.69KG/MM) (SHOWA)

51401-MM8-003

Unavailable

COLLAR, SPRING (SHOWA)

51402-KV3-003

Unavailable

PLATE, SPRING JOINT

51404-MB4-003

$4.94

RING, STOPPER

51405-MB7-611

$2.92

PIPE, FR. FORK (SHOWA)

51410-MM8-003

Unavailable

SPRING, REBOUND

51411-MB4-003

Unavailable

RING, BACK-UP

51412-MB4-003

$9.65

RING, BACK-UP (SHOWA) This part replaces 51412-MB4-305.

51412-MB4-003

$9.65

BUSH, GUIDE (SHOWA) This part replaces 51414-MB4-003.

51414-KCR-003

$14.02

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

BUSH, SLIDER (SHOWA) This part replaces 51415-MM8-003.

51415-KCR-003

$12.27

CASE, R. (LOWER)

51420-MAA-A01

Unavailable

CASE, R. (LOWER) This part replaces 51421-MM8-003.

51420-MAA-A01

Unavailable

PIECE, OIL LOCK (NOT AVAILABLE)

51432-MG8-671

Unavailable

RING, PISTON

51437-MB4-003

$9.57

PIPE, SEAT (SHOWA)

51440-MM8-003

Unavailable

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

BOLT, FR. FORK

51455-MG9-771

$45.36

SEAL SET, FR. FORK (SHOWA) This part replaces 51490-MM8-305.

51490-MN8-305

$35.20

SEAL SET, FR. FORK (SHOWA)

51490-MN8-305

$35.20

FORK ASSY., L. FR. (SHOWA)

51500-MM8-003

Unavailable

CASE, L. (LOWER)

51520-MAA-A01

Unavailable

CASE, L. (LOWER) This part replaces 51521-MM8-003.

51520-MAA-A01

Unavailable

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

DUST SEAL

91254-MM8-003

$17.88

O-RING

91356-MB4-003

$3.54

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

BOLT, FLANGE (8X45)

96300-08045-00

$2.08
