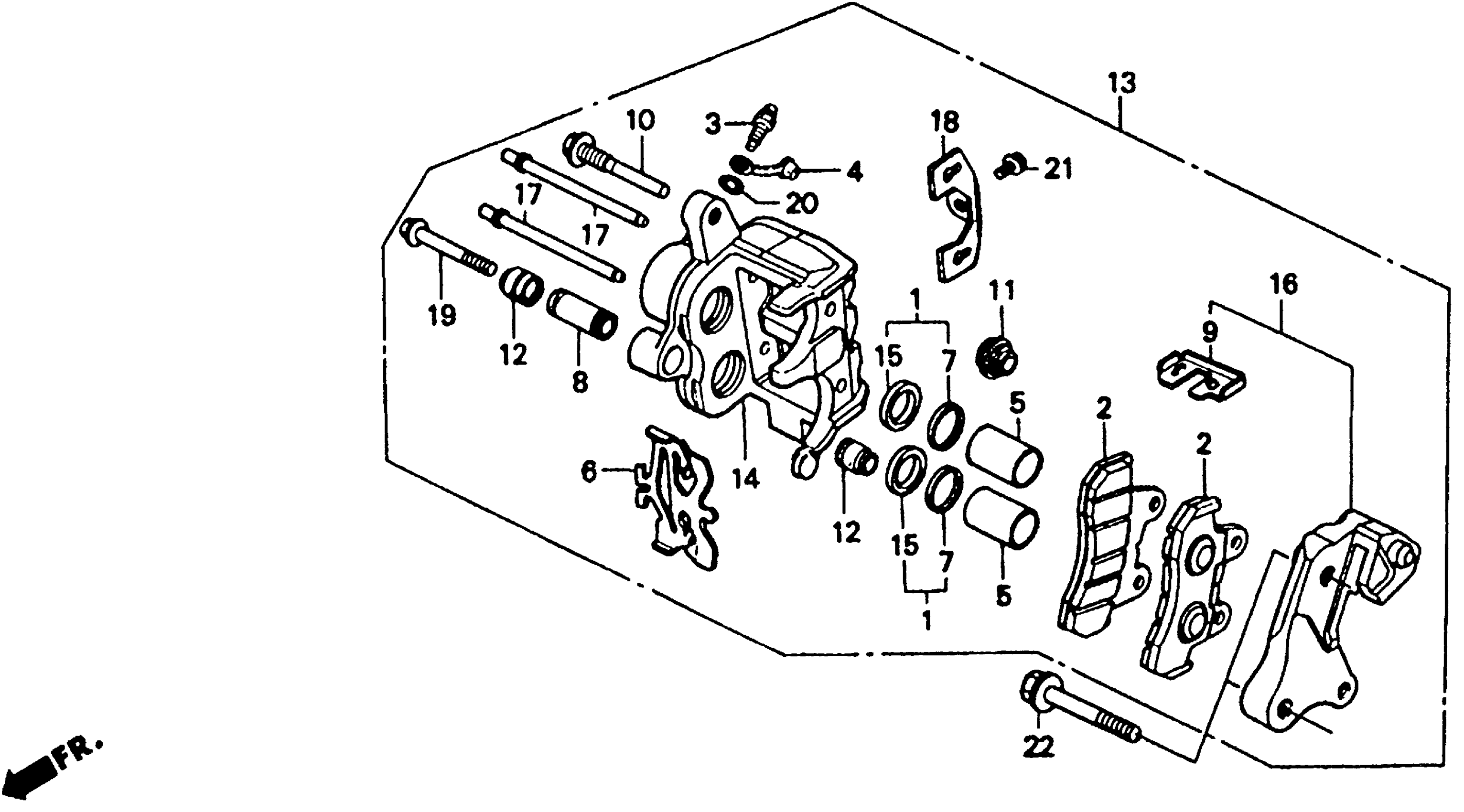

Honda VT1100CA (90) SHADOW 1100, USA, VIN# 1HFSC180-LA500001 TO 1HFSC180-LA501740 FRONT BRAKE CALIPER 87-93 Diagram

BRAKE PAD KIT

451A0-MM8-670

$39.30

PAD, RR. (ASK) (SEE KIT P/N END OF BLOCK)

43105-MB4-017

$24.10

PAD, RR. (SEE KIT P/N END OF BLOCK)

43105-MB6-018

Unavailable

SCREW, BLEEDER

43352-MG9-006

$5.44

CAP, BLEEDER This part replaces 43353-MG9-006.

43353-461-771

$5.05

CAP, BLEEDER This part replaces 43353-443-761.

43353-461-771

$5.05

CAP, BLEEDER

43353-461-771

$5.05

PISTON

45107-MA3-006

$50.26

SPRING, PAD

45108-MA3-006

$6.28

DUST SEAL

45109-166-006

$6.41

SLEEVE

45111-MA3-006

$13.38

RETAINER, BRACKET

45112-445-631

$8.98

PIN, BOLT

45131-MA3-006

$17.59

BOOT B

45133-MA3-006

$5.46

BOOT, PIN

45133-166-016

$3.85

CALIPER ASSY., R. FR. (NISSIN)

45200-MM8-673

Unavailable

CALIPER ASSY., R. FR. (NISSIN)

45200-MM8-674

Unavailable

CALIPER, R. FR. BRAKE

45201-MM8-671

Unavailable

SEAL, PISTON

45209-166-006

$8.64

BRACKET, R. FR. BRAKE

45210-MM8-671

Unavailable

PIN, HANGER

45215-MA3-006

$12.77

PLATE

45217-MA3-006

$4.45

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

O-RING (5.8X1.9) (NISSIN)

91355-MG9-006

$3.15

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, FLANGE (10X40) This part replaces 95800-10040-02.

95801-10040-02

$2.89

BOLT, FLANGE (10X40)

95801-10040-02

$2.89
