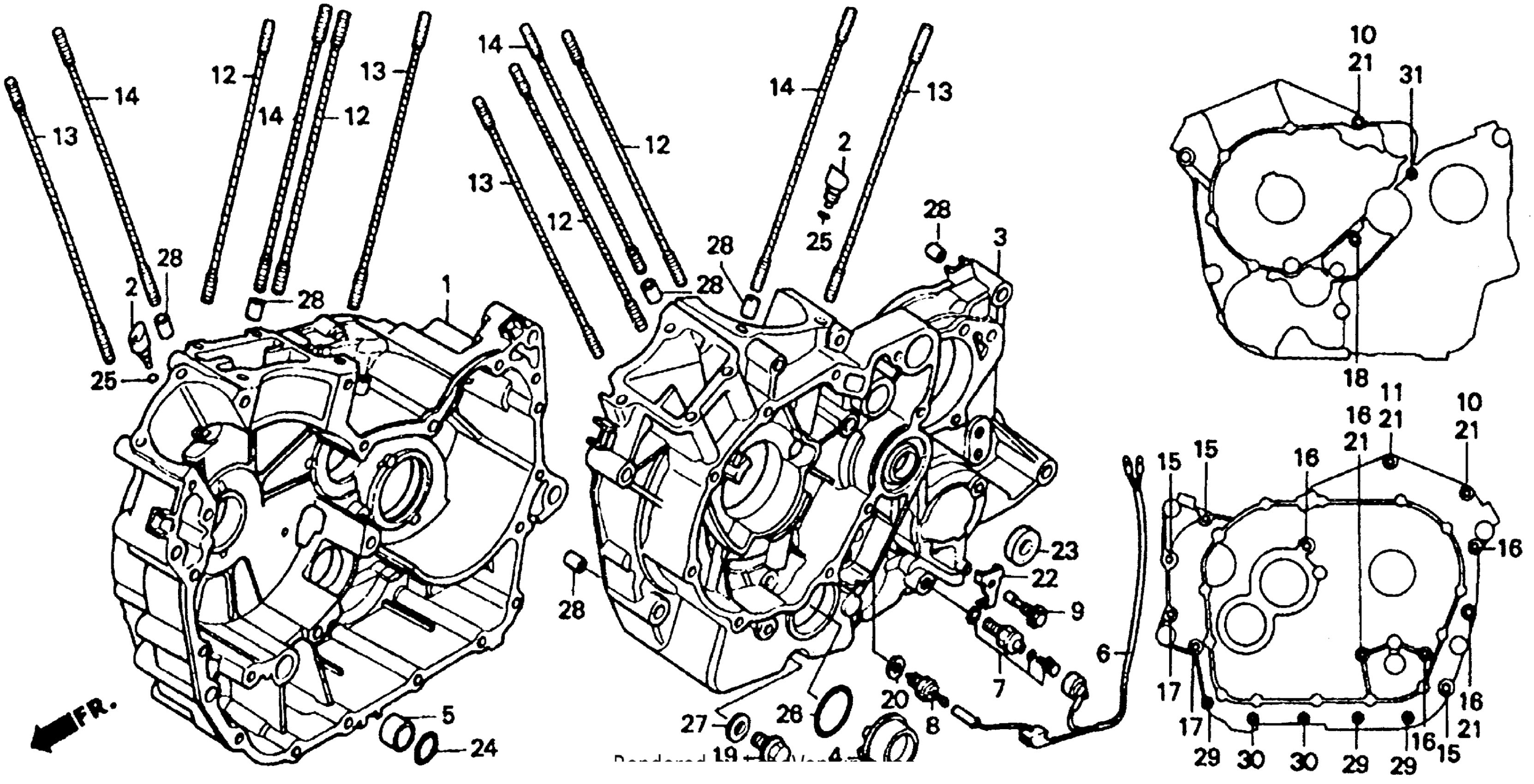

Honda VT1100CA (90) SHADOW 1100, USA, VIN# 1HFSC180-LA500001 TO 1HFSC180-LA501740 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-MM8-680

Unavailable

2

JET, OIL

11146-MG8-000

Unavailable

3

CRANKCASE, L.

11200-MM8-680

Unavailable

4

PLUG, L. CRANKCASE

11211-MK7-770

$29.02

5

COLLAR, O-RING

15155-300-000

$3.47

6

SUB-HARNESS A

32101-MM8-000

Unavailable

7

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

7

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

8

SWITCH ASSY., NEUTRAL

35600-KE8-003

$18.90

8

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-KE8-010.

35600-KE8-003

$18.90

9

BOLT, ORIFICE (1.6MM)

90002-MG8-000

$18.00

10

BOLT, FLANGE (8X125)

90005-MM8-680

Unavailable

11

BOLT, FLANGE (8X136)

90006-MM8-680

$6.92

12

BOLT, STUD (8X267)

90011-MG8-003

Unavailable

13

BOLT, STUD (10X269)

90012-MG8-003

Unavailable

14

BOLT, STUD (10X257)

90013-MG8-003

Unavailable

15

BOLT, FLANGE (8X45)

90052-MM8-680

$4.89

16

BOLT, FLANGE (8X80)

90053-MM8-680

$5.67

17

BOLT, FLANGE (8X100)

90054-MM8-680

Unavailable

18

BOLT, FLANGE SOCKET (8X110)

90055-MG8-000

Unavailable

19

BOLT, PLUG (14MM)

90081-MC7-000

$10.96

20

WASHER, NEUTRAL SWITCH

90405-MG8-000

Unavailable

21

WASHER, SEALING (8MM)

90441-MG8-000

$2.28

22

PLATE, SEALING (6MM)

90444-MG8-000

$4.89

23

OIL SEAL (8X25X7) (ARAI)

91204-MG8-003

$4.33

24

O-RING (13.8X2.5)

91303-377-000

$3.42

25

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

26

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

27

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

28

PIN A, DOWEL (14X20)

94301-14200

$2.28

29

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

30

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

31

BOLT, FLANGE (6X100)

96001-06100-00

$1.95
