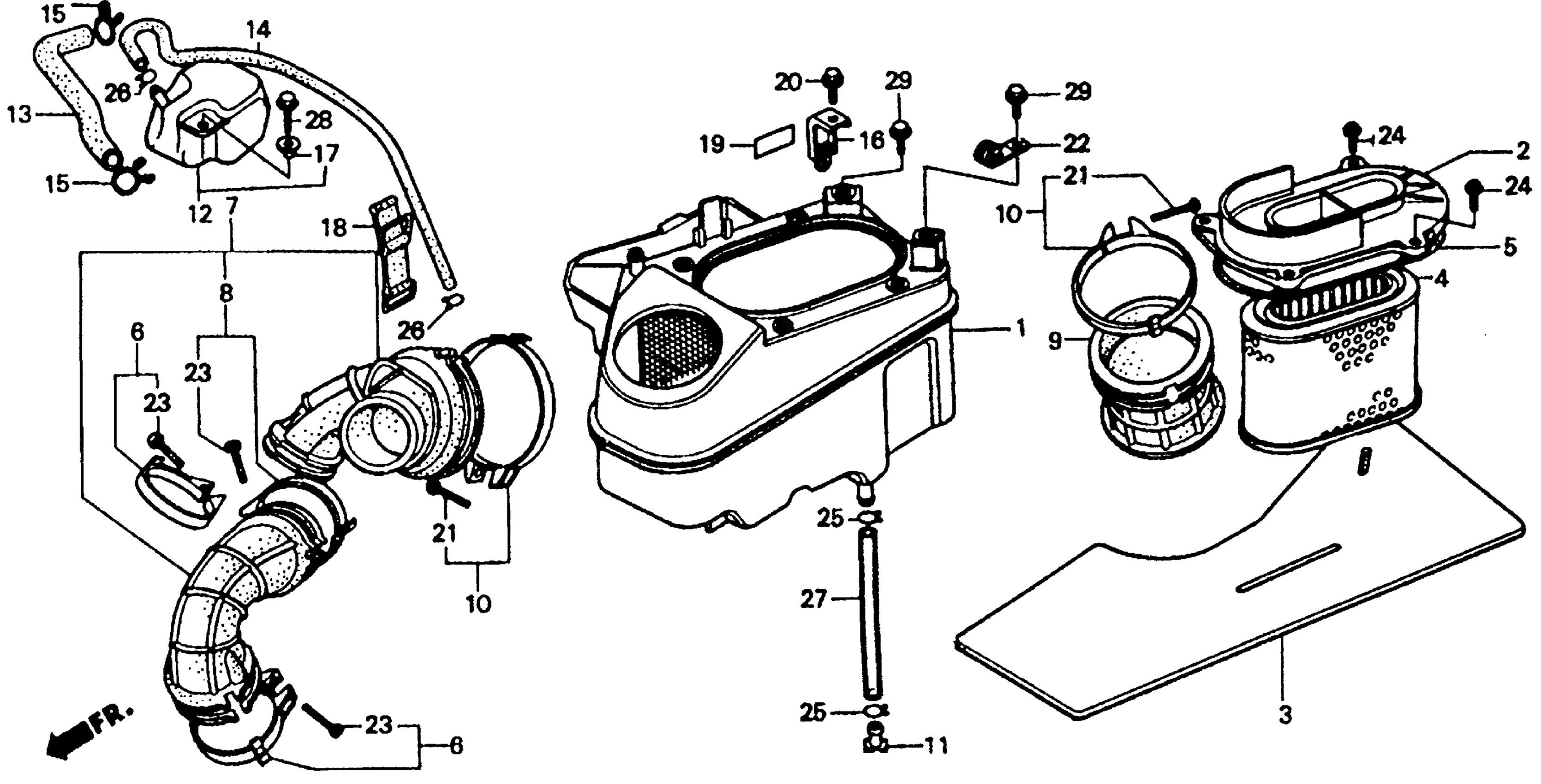

Honda VT1100CA (90) SHADOW 1100, USA, VIN# 1HFSC180-LA500001 TO 1HFSC180-LA501740 AIR CLEANER Diagram

CASE SUB, AIR CLEANER This part replaces 17210-MM8-010.

17210-MM8-020

$77.10

CASE SUB, AIR CLEANER

17210-MM8-020

$77.10

COVER, AIR CLEANER HOUSING This part replaces 17212-MM8-000.

17212-MM8-010

$8.56

COVER, AIR CLEANER HOUSING

17212-MM8-010

$8.56

ELEMENT, AIR CLEANER This part replaces 17215-MM8-010.

17215-MM8-020

$29.99

GASKET, AIR CLEANER HOUSING COVER

17217-MG8-300

$7.87

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17254-MM8-000.

95018-60250

$6.25

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17257-HA0-000.

95018-60250

$6.25

CONNECTING TUBE A

17255-MM8-000

$51.64

BAND, AIR CLEANER CONNECTING TUBE (52) This part replaces 17256-MM8-000.

95018-52250

$5.14

TUBE B, AIR CLEANER CONNECTING

17258-MM8-300

$53.13

BAND C, CONNECTING TUBE

17259-MM8-000

$17.59

PLUG, BREATHER TUBE

17370-419-700

$3.74

TANK, STORAGE

17551-MM8-000

$46.61

TUBE A, BREATHER

17552-MM8-000

Unavailable

TUBE B, BREATHER

17553-MM8-000

Unavailable

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

STAY, FILLER NECK

19111-MM8-000

Unavailable

COLLAR, FR. FENDER

61105-KM7-910

$3.10

BAND, SIDE COVER

83606-356-000

$23.26

BOLT, FLANGE (6MM)

90116-ME9-000

$3.35

SCREW, PAN (4X28)

90140-943-010

Unavailable

SCREW, PAN (4X20)

93500-04020-0G

$1.49

SCREW-WASHER (5X16)

93891-05016-07

$1.49

CLIP, TUBE (B12)

95002-02120

$2.00

CLIP, TUBE (B12.5)

95002-02130

$1.49

BULK HOSE, VINYL (7X11X8000) (7X11X230)

95003-19008-60M

Unavailable

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
