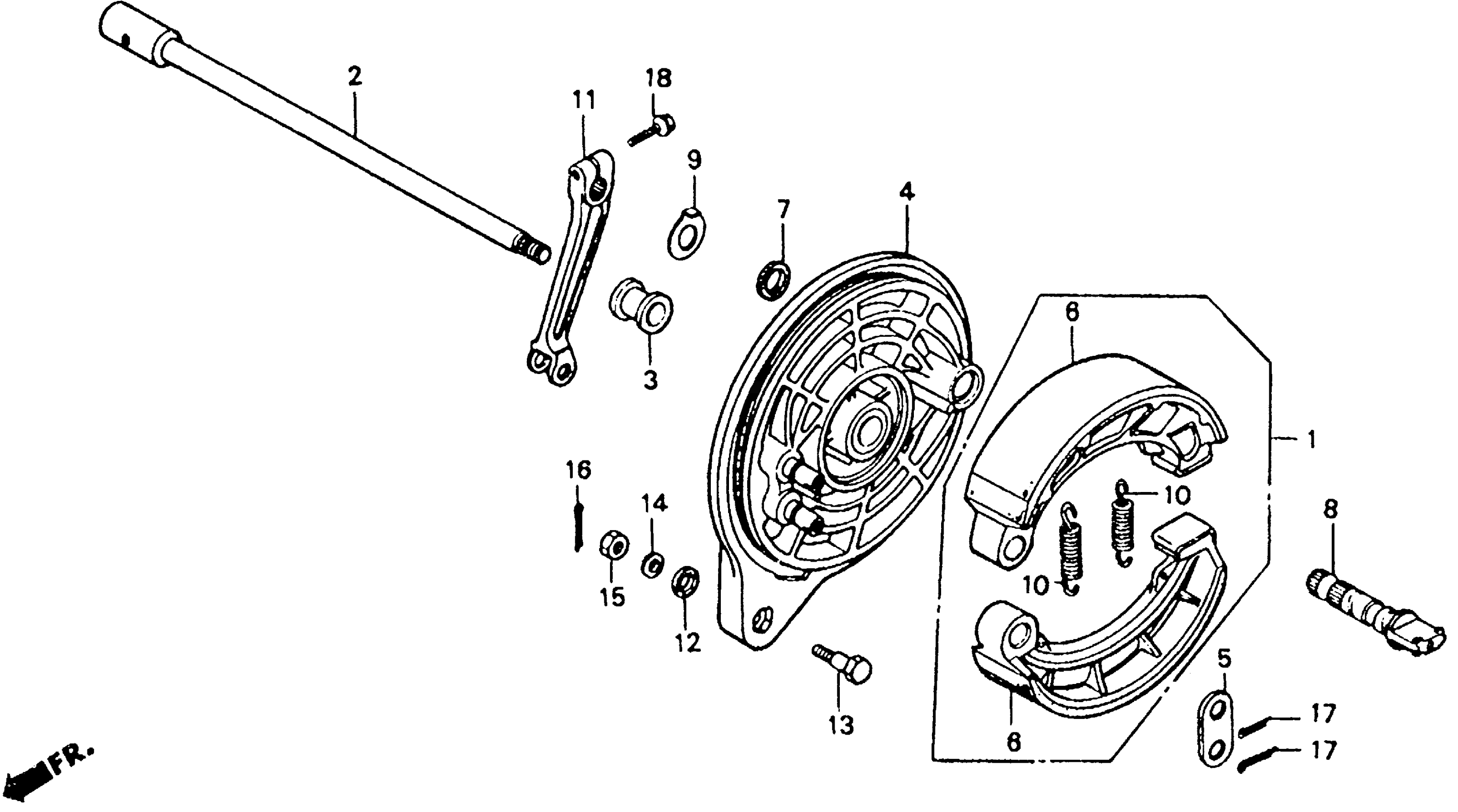

Honda VT1100CA (88) SHADOW 1100, USA, VIN# 1HFSC180-JA300101 TO 1HFSC180-JA304552 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE This part replaces 06430-MJ1-006.

06430-MM8-881

$55.16

NI

SHOE KIT, BRAKE

06430-MM8-881

$55.16

NI

SHOE KIT, BRAKE This part replaces 431A2-MJ1-006.

06430-MM8-881

$55.16

2

AXLE, RR. WHEEL

42301-MM8-000

Unavailable

3

COLLAR, RR. WHEEL SIDE

42313-MJ1-830

Unavailable

4

PANEL, RR.

43100-MJ1-832

Unavailable

5

WASHER, ANCHOR PIN

43102-319-000

$6.21

6

SHOE KIT, BRAKE

06430-MM8-881

$55.16

6

SHOE KIT, BRAKE This part replaces 43120-MJ1-006.

06430-MM8-881

$55.16

6

SHOE KIT, BRAKE This part replaces 43120-MJ1-405.

06430-MM8-881

$55.16

7

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

8

CAM, RR. BRAKE This part replaces 43141-MB0-000.

43141-MB0-010

$41.60

8

CAM, RR. BRAKE

43141-MB0-010

$41.60

9

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

10

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

11

ARM, RR. BRAKE

43410-MJ1-000

$57.50

12

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

13

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

14

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

14

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

15

NUT, HEX. (8MM)

94001-08000-0S

$1.49

16

PIN, COTTER (2.0X15)

94201-20150

$1.49

17

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

17

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

17

PIN, COTTER (2.5MM)

94201-25300

$1.49

18

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

18

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
