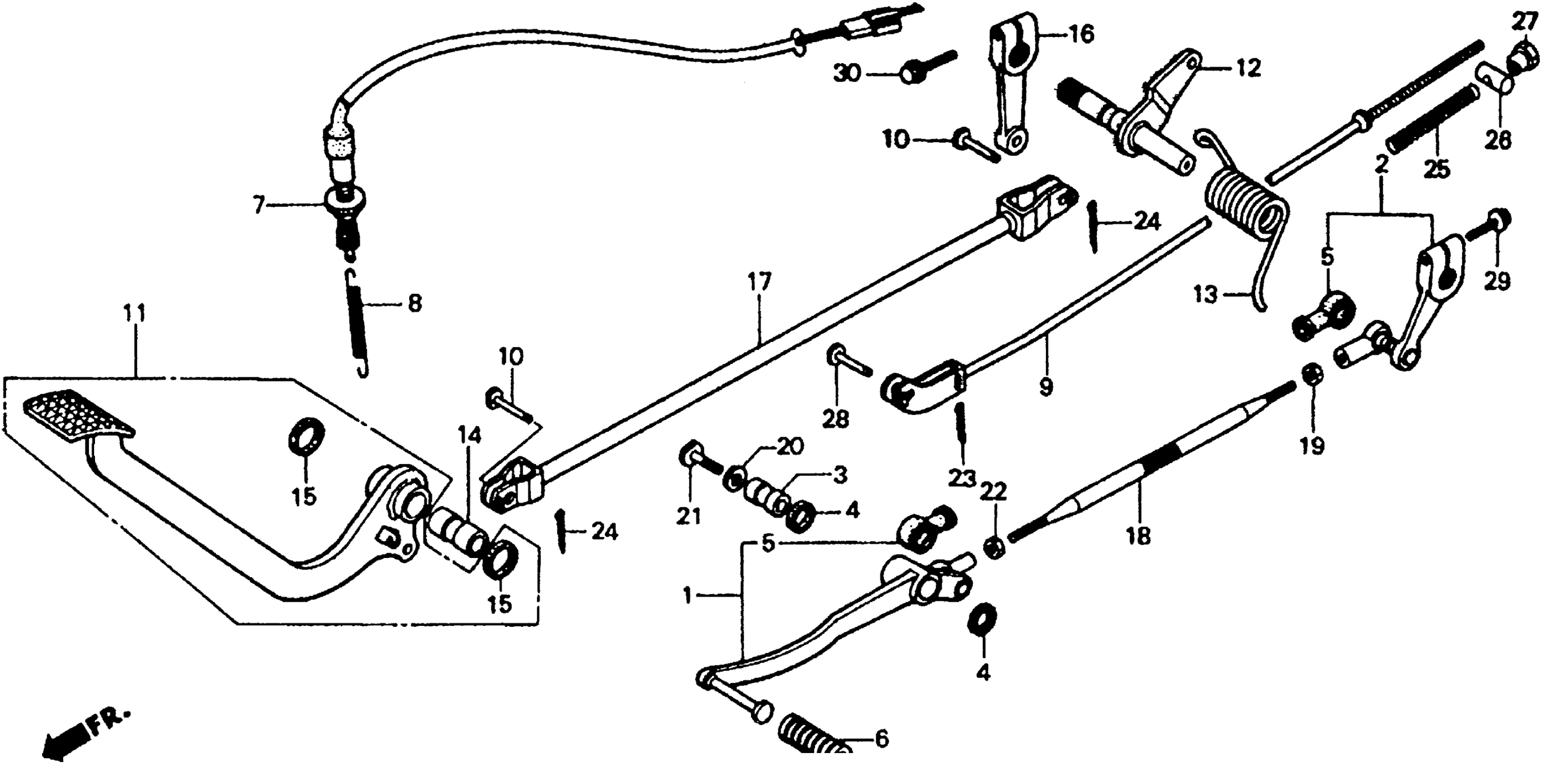

Honda VT1100CA (88) SHADOW 1100, USA, VIN# 1HFSC180-JA300101 TO 1HFSC180-JA304552 PEDAL Diagram

PEDAL, GEARSHIFT

24701-MM8-000

Unavailable

ARM, GEARSHIFT

24702-MM8-000

$59.54

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MK3-000

$9.79

RUBBER, DUST SEAL

24706-MK3-770

$4.28

COVER, DUST

24724-422-000

$6.37

RUBBER, CHANGE PEDAL

24781-KR3-770

$3.23

SWITCH ASSY., RR. STOP This part replaces 35350-MM8-000.

35350-KE5-405

Unavailable

SWITCH ASSY., RR. STOP

35350-KE5-405

Unavailable

SWITCH ASSY., RR. STOP This part replaces 35350-MM8-010.

35350-KE5-405

Unavailable

SPRING, STOP SWITCH

35357-ME9-000

$4.53

ROD, RR. BRAKE

43451-MM8-000

$19.53

PIN, MIDDLE ROD JOINT

43456-MK7-000

Unavailable

PEDAL, RR. BRAKE This part replaces 46500-MM8-000.

46500-MM8-880

Unavailable

PEDAL, RR. BRAKE

46500-MM8-880

Unavailable

ARM, RR. BRAKE MIDDLE

46510-MM8-000

Unavailable

SPRING, BRAKE RETURN

46514-MM8-000

Unavailable

COLLAR, RR. BRAKE PIVOT

46515-MM8-000

$10.75

DUST SEAL (17X20X2.5)

46525-KK0-003

Unavailable

ARM, RR. BRAKE PEDAL PIVOT

46530-MM8-000

Unavailable

ROD, RR. BRAKE MIDDLE

46540-MM8-000

Unavailable

BOLT, TIE ROD This part replaces 90065-MM8-000.

90065-MM8-880

Unavailable

BOLT, TIE ROD

90065-MM8-880

Unavailable

NUT, GOVERNOR ARM FIXING

90201-700-000

$0.71

WASHER (8MM)

90514-921-000

$1.00

BOLT, HEX. (8X35)

92201-08035-0A

Unavailable

NUT, HEX. (6MM)

94002-06000-0S

$1.21

PIN, COTTER (1.6X12)

94201-16120

$0.96

PIN, COTTER (2.0X15)

94201-20150

$0.96

SPRING A, BRAKE ROD

95014-73100

$1.19

JOINT, BRAKE ARM

95015-32001

$0.87

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.78

PIN B, BRAKE ROD JOINT

95015-52000

$1.97

BOLT, FLANGE (6X20) This part replaces 95700-06020-02.

95701-06020-02

$1.07

BOLT, FLANGE (6X20)

95701-06020-02

$1.07

BOLT, FLANGE (8X25) This part replaces 95700-08025-02.

95701-08025-02

$2.10

BOLT, FLANGE (8X25)

95701-08025-02

$2.10
