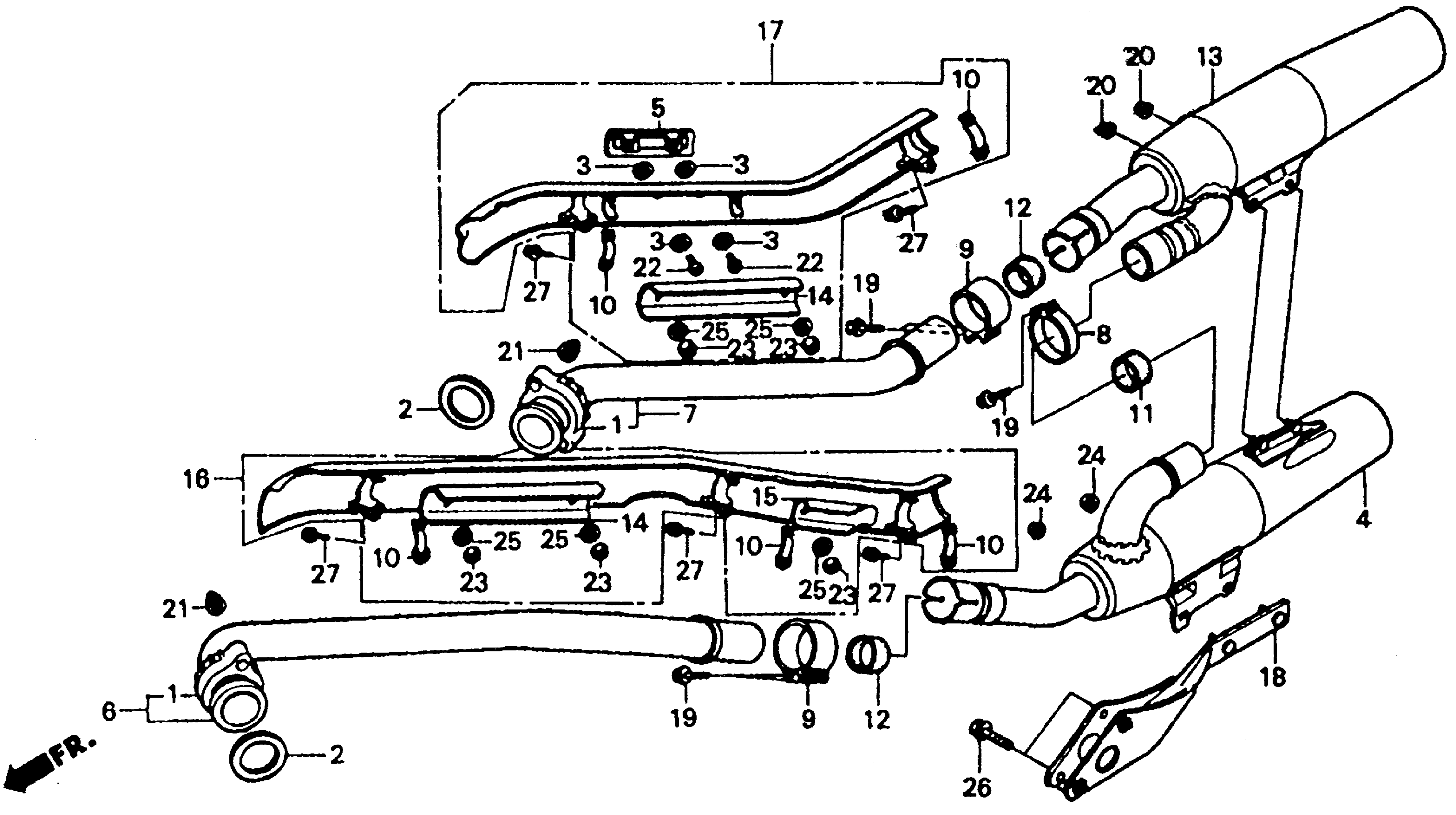

Honda VT1100CA (88) SHADOW 1100, USA, VIN# 1HFSC180-JA300101 TO 1HFSC180-JA304552 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-MG8-000

Unavailable

2

GASKET, EX. PIPE This part replaces 18291-ME9-000.

18291-MM8-880

$7.16

2

GASKET, EX. PIPE This part replaces 18291-ME9-306.

18291-MM8-880

$7.16

2

GASKET, EX. PIPE

18291-MM8-880

$7.16

3

GASKET, MUFFLER PROTECTOR

18292-GY1-860

$2.94

3

GASKET, MUFFLER PROTECTOR This part replaces 18292-KS3-920.

18292-GY1-860

$2.94

3

GASKET, MUFFLER PROTECTOR This part replaces 18292-147-000.

18292-GY1-860

$2.94

4

MUFFLER (LOWER)

18310-MM8-003

Unavailable

5

SUB-COVER, EX. PIPE

18315-MM8-000

Unavailable

6

PIPE, FR. EX.

18320-MM8-770

Unavailable

7

PIPE, RR. EX.

18370-MM8-770

Unavailable

8

BAND, R. RR. MUFFLER

18375-MG7-000

$29.64

9

BAND, MUFFLER

18376-KG0-003

$18.83

10

BAND, EX. PIPE COVER

18376-MM8-000

$7.90

11

GASKET, RR. MUFFLER

18392-MG7-750

$13.66

12

GASKET, MUFFLER

18392-MK4-000

$13.66

13

MUFFLER (UPPER)

18410-MM8-003

Unavailable

14

COVER A, EX. PIPE (INNER) This part replaces 18411-MM8-003.

18411-MM8-880

$30.95

15

COVER B, EX. PIPE (INNER) This part replaces 18412-MM8-000.

18412-MM8-880

Unavailable

15

COVER B, EX. PIPE (INNER)

18412-MM8-880

Unavailable

16

COVER ASSY., FR. EX. PIPE This part replaces 18421-MM8-000.

18421-MM8-880

Unavailable

16

COVER ASSY., FR. EX. PIPE

18421-MM8-880

Unavailable

17

COVER ASSY., RR. EX. PIPE This part replaces 18422-MM8-000.

18422-MM8-880

Unavailable

17

COVER ASSY., RR. EX. PIPE

18422-MM8-880

Unavailable

18

BRACKET, MUFFLER

18455-MM8-000

Unavailable

19

BOLT, FLANGE (8X35)

90161-ML7-000

$3.67

20

NUT, FLANGE CAP (8MM)

90161-MM8-000

$2.92

21

NUT, CAP (8MM)

90304-ME1-670

$5.94

22

SCREW, PAN (5X8)

93500-05008-0H

$1.49

23

NUT, HEX. (6MM)

94002-06000-0S

$1.49

24

NUT, FLANGE (8MM)

94050-08000

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

BOLT, FLANGE (8X45) This part replaces 95700-08045-07.

95701-08045-07

$2.17

26

BOLT, FLANGE (8X45)

95701-08045-07

$2.17

27

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
