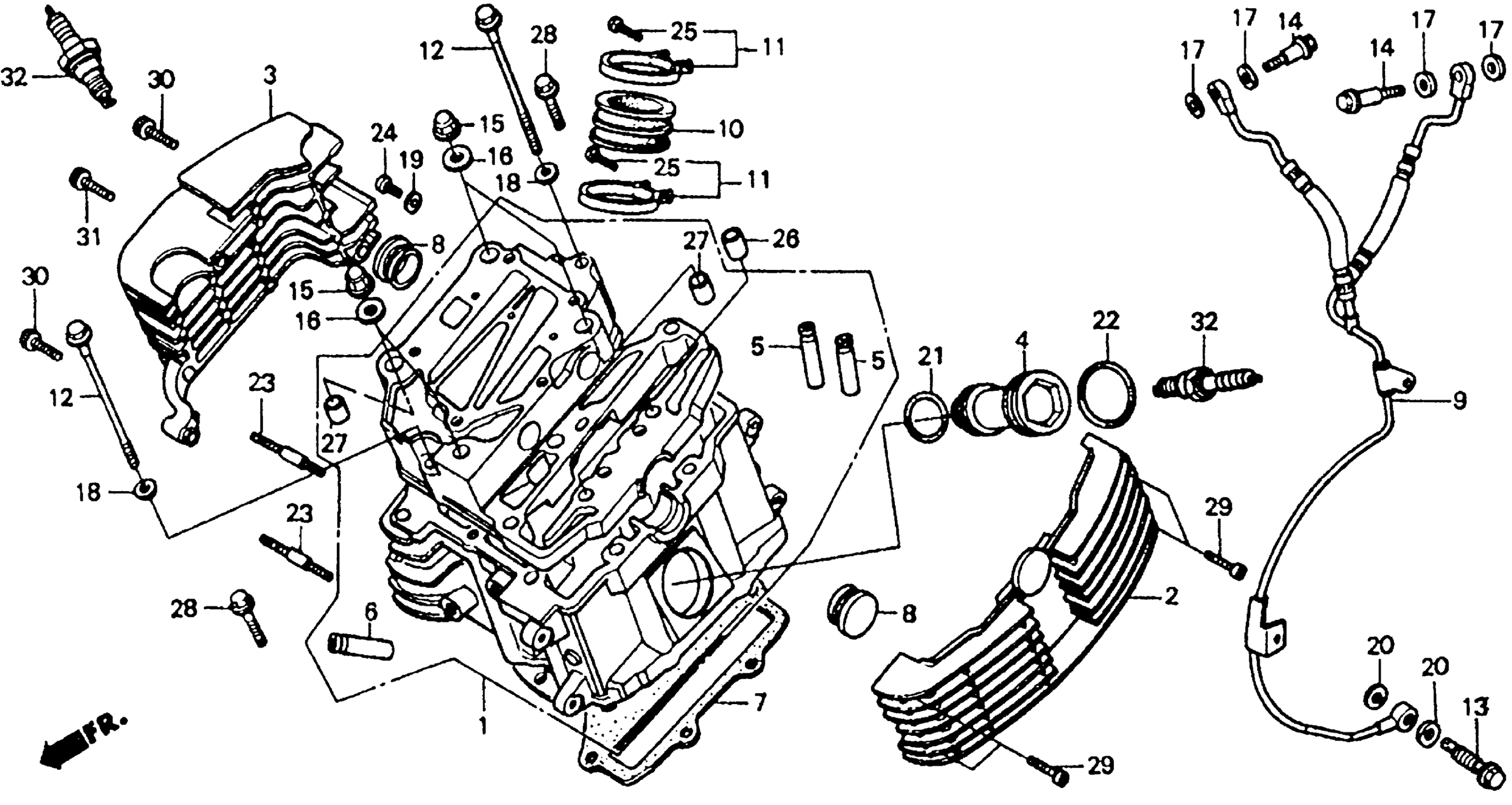

Honda VT1100CA (88) SHADOW 1100, USA, VIN# 1HFSC180-JA300101 TO 1HFSC180-JA304552 FRONT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., FR.

12010-MAA-010

Unavailable

1

CYLINDER HEAD ASSY., FR. This part replaces 12010-MM8-000.

12010-MAA-010

Unavailable

2

FIN A, FR. CYLINDER HEAD

12211-MM8-000

Unavailable

3

FIN B, FR. CYLINDER HEAD

12221-MM8-000

Unavailable

4

SLEEVE, PLUG

12225-MG8-000

$38.87

5

GUIDE, VALVE

12231-MG8-305

$20.08

6

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

6

GUIDE, IN VALVE

12233-MG8-405

Unavailable

7

GASKET, CYLINDER HEAD

12251-MG8-004

Unavailable

8

PLUG, CAMSHAFT

12312-ME9-750

$10.12

9

PIPE, OIL FEED This part replaces 15520-MG8-010.

15520-MM8-680

Unavailable

9

PIPE, OIL FEED

15520-MM8-680

Unavailable

10

INSULATOR, CARBURETOR

16211-MG8-000

$19.41

11

BAND, INSULATOR (NOT AVAILABLE)

16219-MG8-770

Unavailable

12

BOLT, FLANGE (8X150)

90015-MG8-000

$6.07

13

BOLT, OIL CONTROL

90045-ME9-000

Unavailable

14

BOLT, SPECIAL (6X49)

90130-ME9-000

Unavailable

15

NUT, CAP (10MM)

90209-MM8-000

$6.00

16

WASHER (10MM) This part replaces 90403-ML4-610.

90403-ML4-611

$6.21

17

WASHER, SEALING (7MM)

90441-MC0-000

$2.39

18

WASHER, SEALING (8MM)

90441-ME9-000

$2.61

19

WASHER, SEALING (5MM)

90452-323-000

$1.59

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

22

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

23

BOLT 2, STUD (8X35)

92900-08035-0B

$2.46

23

BOLT 2, STUD (8X35) This part replaces 92900-08035-0E.

92900-08035-0B

$2.46

24

SCREW, PAN (5X8)

93500-05008-0A

$1.49

25

SCREW, PAN (5X25)

93500-05025-0G

$1.49

26

PIN A, DOWEL (10X16)

94301-10160

$2.28

27

PIN A, DOWEL (14X20)

94301-14200

$2.28

28

BOLT, FLANGE (6X35)

95701-06035-07

$1.80

29

BOLT, SOCKET (6X25)

96700-06025-07

Unavailable

30

BOLT, SOCKET (6X35)

96700-06035-07

Unavailable

31

BOLT, SOCKET (6X45)

96700-06045-07

Unavailable

32

SPARK PLUG (DPR6EA-9) (NGK)

98069-56916

$2.62

32

SPARK PLUG (X20EPR-U9) (DENSO)

98069-56926

$2.54

32

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

32

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

32

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

32

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54
