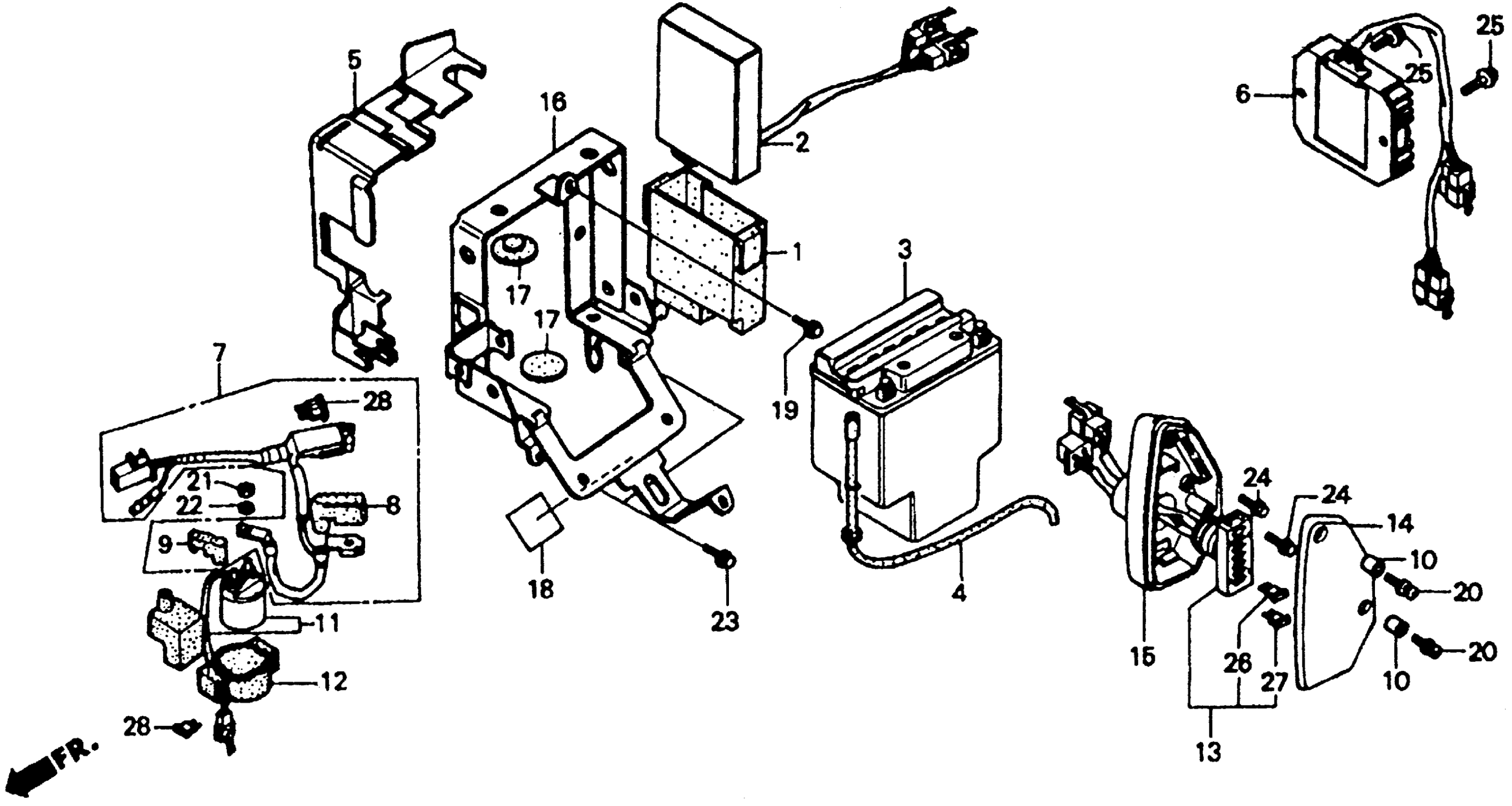

Honda VT1100CA (88) SHADOW 1100, USA, VIN# 1HFSC180-JA300101 TO 1HFSC180-JA304552 BATTERY Diagram

#

Description
Price

1

RUBBER, SPARK UNIT

30405-MM8-000

Unavailable

2

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30410-MM8-006

Unavailable

3

BATTERY (HYB16A-A) This part replaces 31500-ME9-672.

31500-ME9-677AH

Unavailable

3

BATTERY (HYB16A-A) This part replaces 31500-ME9-673.

31500-ME9-677AH

Unavailable

3

BATTERY (HYB16A-A) This part replaces 31500-ME9-674.

31500-ME9-677AH

Unavailable

3

BATTERY (HYB16A-A) This part replaces 31500-ME9-676.

31500-ME9-677AH

Unavailable

3

BATTERY (HYB16A-A) This part replaces 31500-ME9-677.

31500-ME9-677AH

Unavailable

4

TUBE, BATTERY BREATHER

31502-MB1-405

Unavailable

4

TUBE, BATTERY BREATHER This part replaces 31502-MM8-000.

31502-MB1-405

Unavailable

5

COVER, BATTERY

31506-MM8-000

Unavailable

6

RECTIFIER ASSY., REGULATOR

31600-MAA-000

Unavailable

6

RECTIFIER ASSY., REGULATOR This part replaces 31600-MM8-008.

31600-MAA-000

Unavailable

7

CABLE, STARTER BATTERY

32401-MM8-000

Unavailable

8

COVER, BATTERY TERMINAL

32414-MM8-000

Unavailable

9

COVER A, MAGNETIC SWITCH TERMINAL

32418-HA7-670

Unavailable

10

COLLAR, FR. TURN SIGNAL

33609-GK4-620

$2.33

11

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)

35850-MM8-000

Unavailable

12

RUBBER, SHOCK ABSORBER

35856-KR0-007

$10.12

13

PLATE ASSY., FUSE This part replaces 38200-MM8-005.

38200-MM8-881

Unavailable

13

PLATE ASSY., FUSE

38200-MM8-881

Unavailable

14

COVER, FUSE BOX

38205-MM8-000

Unavailable

15

PLATE, FUSE BOX

38211-MM8-000

Unavailable

16

BOX, BATTERY

50320-MM8-000

Unavailable

17

RUBBER, BATTERY BOX

83618-323-000

$2.47

18

MARK, BATTERY CAUTION

87506-MM8-300

Unavailable

19

BOLT, SPECIAL (6X12)

90014-PC0-000

$6.26

20

SCREW-WASHER (5X12)

93891-05012-07

$1.49

21

NUT, HEX. (6MM)

94002-06080-0S

$1.49

22

WASHER, SPRING (6MM)

94111-06800

$1.49

23

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

24

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

25

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

26

FUSE, BLADE (10A)

98200-31000

$1.49

27

FUSE, BLADE (15A)

98200-31500

$1.49

28

FUSE, BLADE (30A)

98200-33000

$1.49
