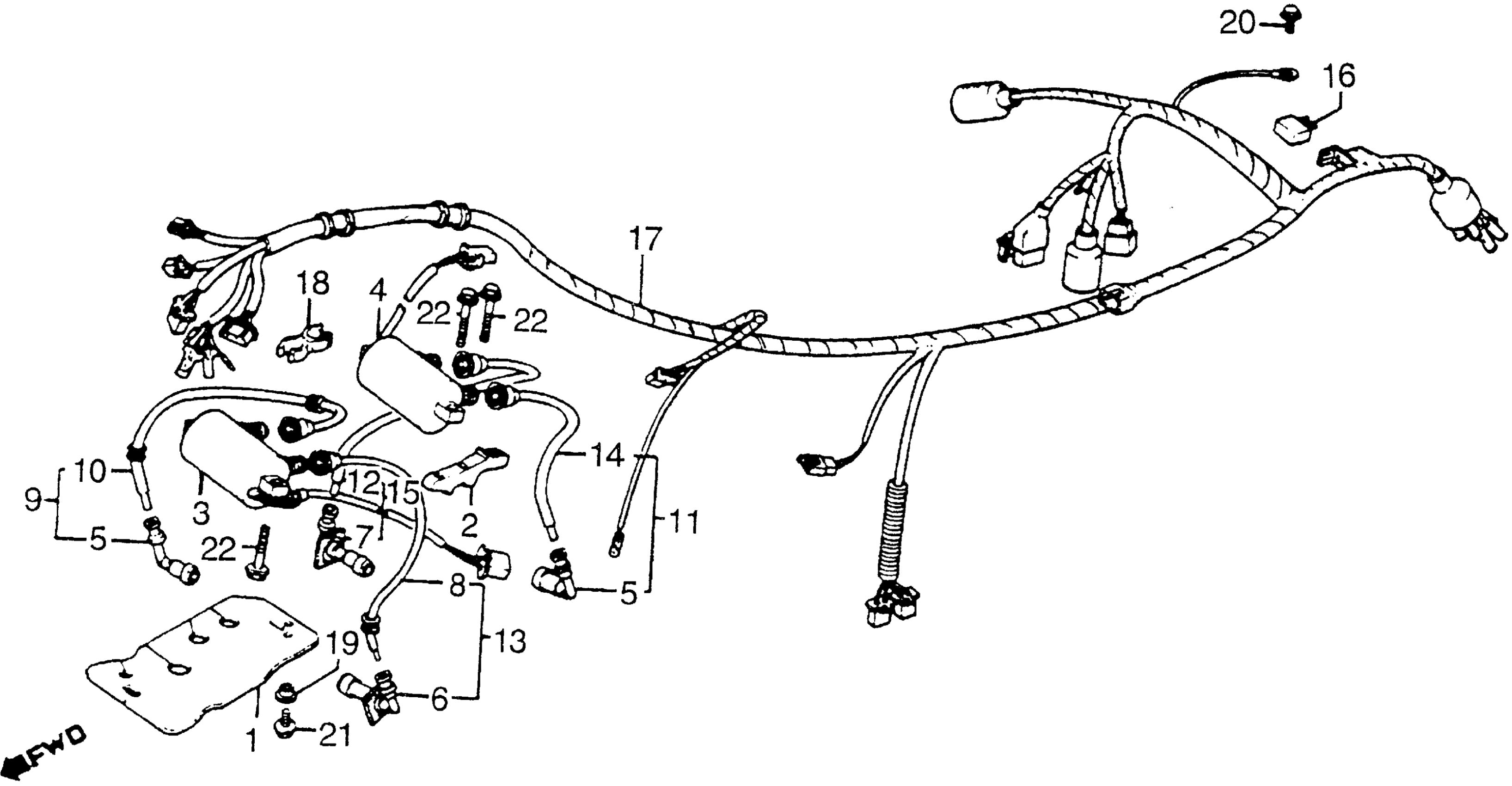

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 WIRE HARNESS + IGNITION COIL + RECTIFIER Diagram

GUARD B, HEAT (NOT AVAILABLE)

17221-MG8-000

Unavailable

BRACKET, IGNITION COIL (NOT AVAILABLE)

30505-MG8-770

Unavailable

COIL, FR. IGNITION (NOT AVAILABLE) This part replaces 30510-MG8-770.

30510-MG8-003

Unavailable

COIL, RR. IGNITION (NOT AVAILABLE) This part replaces 30530-MG8-770.

30530-MG8-003

Unavailable

CAP ASSY. 1, SPARK PLUG (NOT AVAILABLE)

30751-MG8-770

Unavailable

CAP ASSY. 2, SPARK PLUG (NOT AVAILABLE)

30752-MG8-770

Unavailable

CAP ASSY. 3, SPARK PLUG (NOT AVAILABLE)

30753-MG8-770

Unavailable

CAP ASSY. 4, SPARK PLUG (NOT AVAILABLE)

30754-MG8-770

Unavailable

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS (NOT AVAILABLE) This part replaces 32100-MG8-770.

32100-MG8-771

Unavailable

WIRE HARNESS (NOT AVAILABLE)

32100-MG8-771

Unavailable

CLAMP, IGNITION WIRE

32802-MB2-000

Unavailable

COLLAR, FENDER COVER (NOT AVAILABLE)

80112-443-850

Unavailable

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
