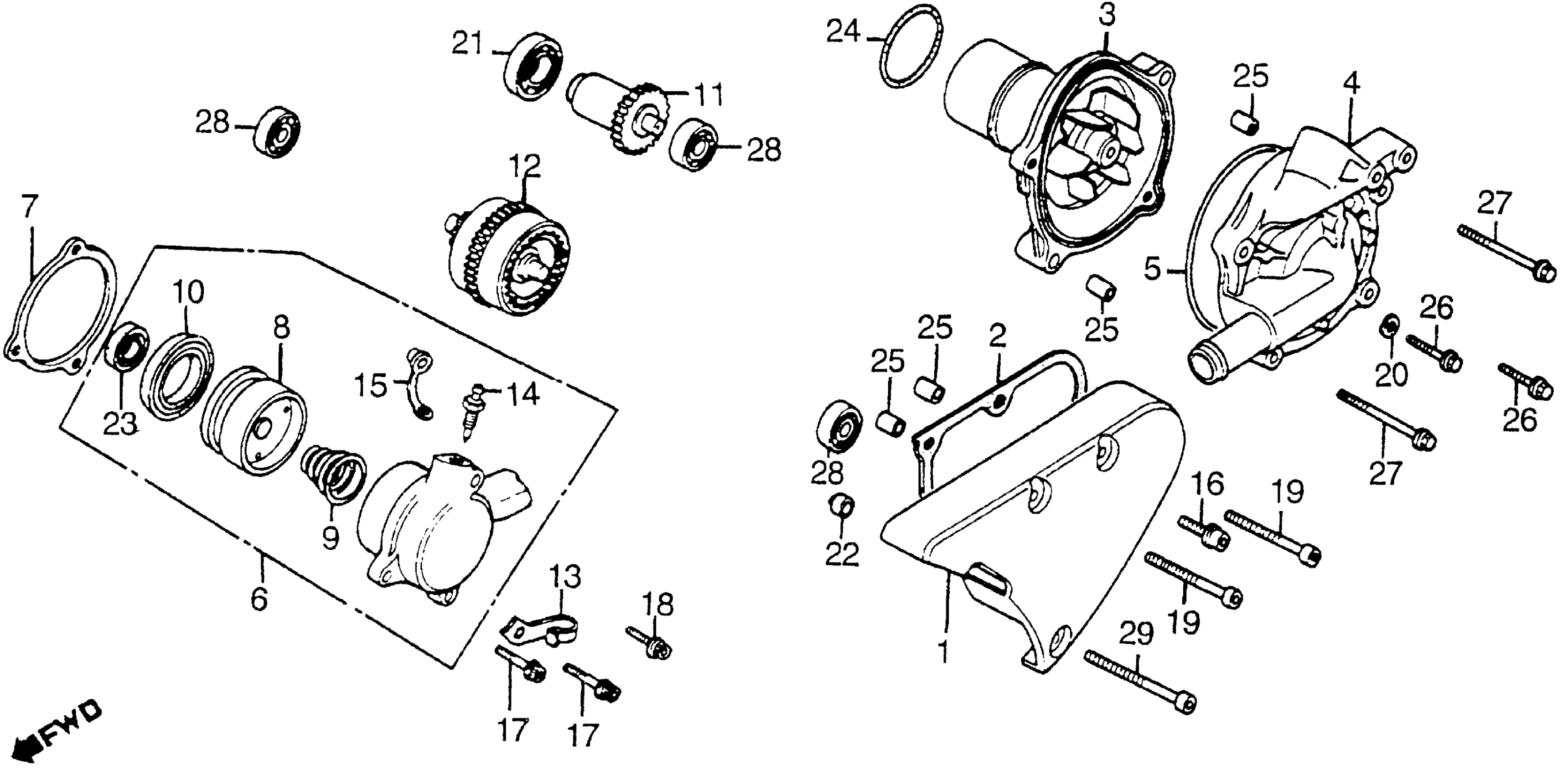

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 WATER PUMP Diagram

#

Description
Price

1

COVER, STARTER (NOT AVAILABLE)

11364-MG8-000

Unavailable

2

GSKT, STARTER COVER This part replaces 11365-MG8-000.

11365-MG8-306

Unavailable

3

WATER PUMP This part replaces 19200-ME9-010.

19200-ME9-040

Unavailable

3

WATER PUMP This part replaces 19200-ME9-020.

19200-ME9-040

Unavailable

3

WATER PUMP This part replaces 19200-ME9-030.

19200-ME9-040

Unavailable

3

WATER PUMP

19200-ME9-040

Unavailable

4

COVER, WATER PUMP

19221-MAA-000

Unavailable

4

COVER, WATER PUMP This part replaces 19221-MG8-000.

19221-MAA-000

Unavailable

4

COVER, WATER PUMP This part replaces 19221-MK7-770.

19221-MAA-000

Unavailable

4

COVER, WATER PUMP This part replaces 19221-MK7-771.

19221-MAA-000

Unavailable

4

COVER, WATER PUMP This part replaces 19221-MK7-772.

19221-MAA-000

Unavailable

5

GASKET, WATER PUMP COVER

19226-ME9-000

$5.47

6

CYLINDER ASSY., CLUTCH SLAVE (NOT AVAILABLE)

22860-MG8-000

Unavailable

7

INSULATOR, CLUTCH SLAVE CYLINDER

22862-MB0-000

$8.38

8

PISTON, SLAVE CYLINDER

22863-MB0-003

$28.75

9

SPRING, SLAVE CYLINDER

22864-MB0-003

$5.81

10

CUP, PISTON

22865-MB0-003

$12.45

11

SHAFT, STARTER DRIVE (36T)

28130-MG8-000

Unavailable

12

LIMIT ASSY., TORQUE (15T)

28140-MG8-000

Unavailable

13

CLAMP, CABLE (NOT AVAILABLE)

32111-MG8-000

Unavailable

14

SCREW, BLEEDER

22866-MF2-711

$4.76

15

CAP, BLEEDER

43353-461-771

$4.70

16

BOLT, FLANGE SOCKET (6X28)

90076-MG8-000

$4.13

17

BOLT, FLANGE SOCKET (6X25)

90080-MG8-000

$3.62

18

BOLT, FLANGE SOCKET (6X35)

90081-MG8-000

Unavailable

19

BOLT, SOCKET (6X45)

90085-MG8-000

Unavailable

20

WASHER, SEALING (6MM)

90441-706-000

$1.06

21

BEARING, RADIAL BALL (6804) (KOYO)

91002-MG8-003

$22.28

22

CAP, RUBBER

91201-MG8-000

$2.67

23

OIL SEAL (8X18X5)

91209-MB0-003

$3.77

24

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.67

25

PIN, DOWEL (8X14)

94301-08140

$2.04

26

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.64

26

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

27

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$1.97

27

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

27

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

28

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.56

29

BOLT, SOCKET (6X80)

96700-06080-00

Unavailable
