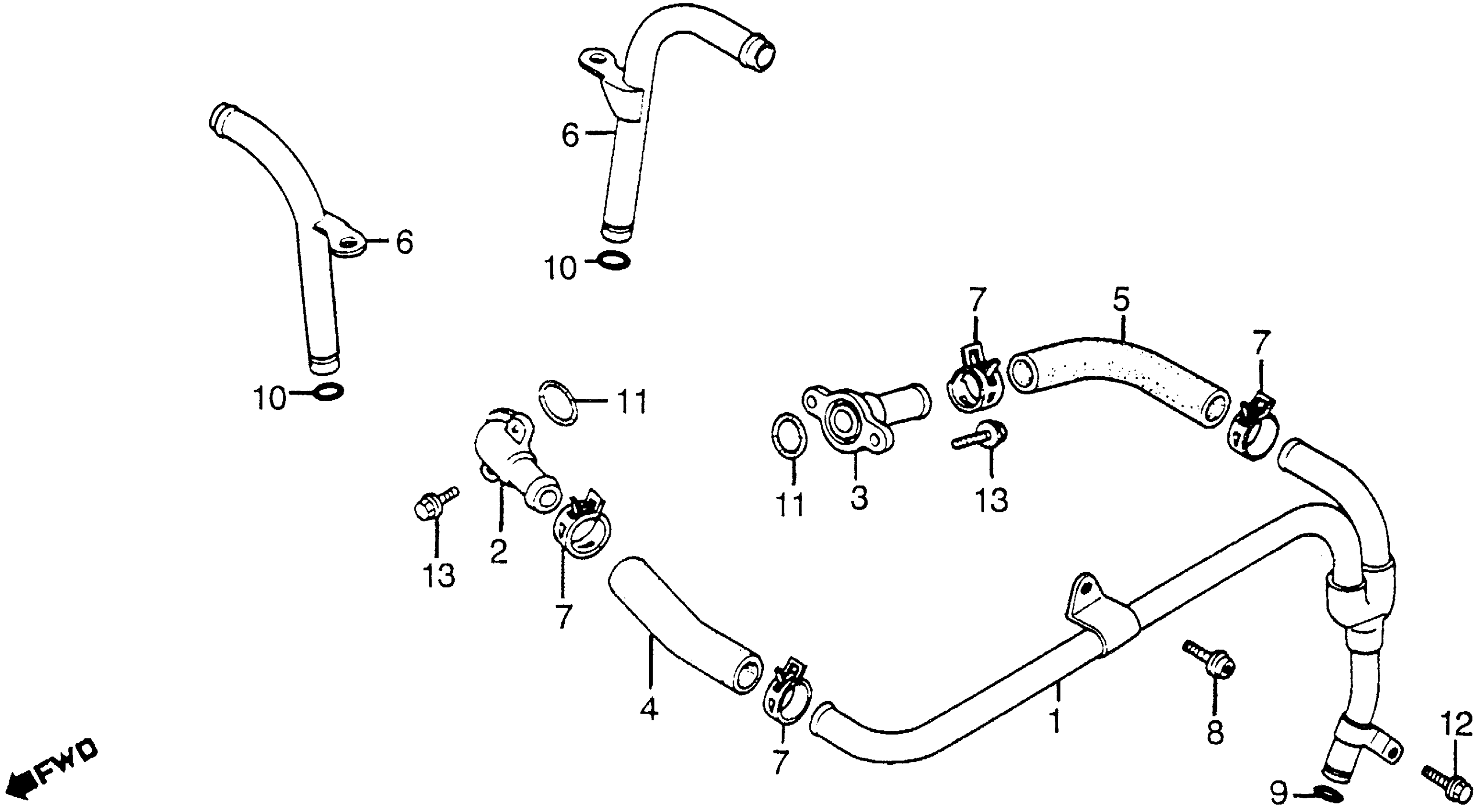

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 WATER PIPE Diagram

PIPE, INLET WATER This part replaces 19501-MG8-000.

19501-MM8-790

Unavailable

PIPE, INLET WATER This part replaces 19501-MM8-000.

19501-MM8-790

Unavailable

PIPE, INLET WATER

19501-MM8-790

Unavailable

JOINT A, WATER HOSE

19503-MG8-000

Unavailable

JOINT B, WATER HOSE

19504-MG8-000

Unavailable

HOSE A, IN. WATER (NOT AVAILABLE)

19505-MG8-000

Unavailable

HOSE B, IN. WATER (NOT AVAILABLE)

19506-MG8-000

Unavailable

PIPE A, OUTLET WATER (NOT AVAILABLE)

19511-MG8-000

Unavailable

CLIP B, HOSE

19514-ME9-003

$5.64

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.66

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

SEAL, WATER PIPE

91315-ME9-003

$4.53

SEAL, WATER PIPE This part replaces 91315-ME9-004.

91315-ME9-003

$4.53

O-RING

91356-169-003

$2.92

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X20) This part replaces 96000-06020-00.

96001-06020-00

$1.49

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
