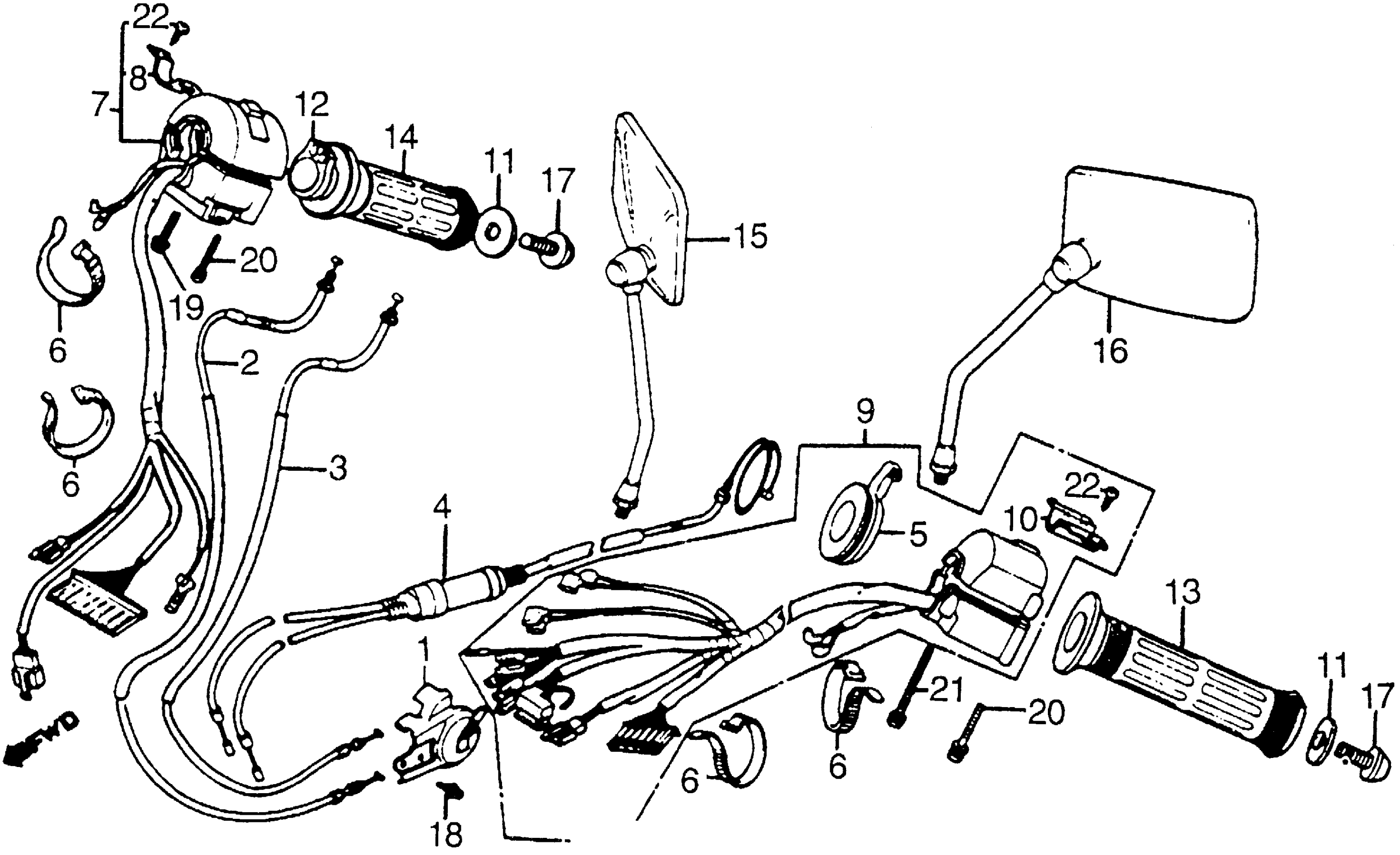

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 SWITCHES + CABLES Diagram

#

Description
Price

1

COVER, THROTTLE LINK (NOT AVAILABLE)

16111-MG8-000

Unavailable

2

CABLE A, THROTTLE (NOT AVAILABLE)

17910-MG8-000

Unavailable

3

CABLE B, THROTTLE (NOT AVAILABLE)

17920-MG8-000

Unavailable

4

CABLE, CHOKE (NOT AVAILABLE)

17950-MG8-000

Unavailable

5

LEVER, CHOKE

17962-KE8-701

Unavailable

6

BAND, WIRE

32161-367-690

$2.92

7

SWITCH ASSY., STARTER ENGINE STOP (NOT AVAILABLE) This part replaces 35130-MG8-672.

35130-MG8-673

Unavailable

7

SWITCH ASSY., STARTER ENGINE STOP (NOT AVAILABLE)

35130-MG8-673

Unavailable

8

PLATE, STOP SWITCH SETTING This part replaces 35152-KE8-702.

35152-KE8-703

$7.61

8

PLATE, STOP SWITCH SETTING

35152-KE8-703

$7.61

9

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) | Use up to Frame SN GA102899 This part replaces 35200-MG8-671.

35200-MG8-672

Unavailable

9

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-MG8-672

Unavailable

10

PLATE, TURN SIGNAL SWITCH SETTING

35204-KE8-702

$9.79

11

WASHER, HANDLE

53109-MG8-000

Unavailable

12

PIPE, THROTTLE GRIP

53141-300-010

$20.93

13

GRIP SET, L. HANDLEBAR (NOT AVAILABLE)

53167-MK3-325

Unavailable

14

GRIP, R. HANDLEBAR This part replaces 53168-MK3-305.

53168-MK3-315

Unavailable

14

GRIP, R. HANDLEBAR (NOT AVAILABLE)

53168-MK3-315

Unavailable

15

MIRROR, R.

88110-MG8-770

Unavailable

16

MIRROR, L.

88120-MG8-770

Unavailable

17

BOLT, SOCKET (8X14)

90116-MF5-000

Unavailable

18

SCREW-WASHER (4X6)

93892-04006-00

$1.49

19

SCREW-WASHER (5X20)

93892-05020-07

$1.49

20

SCREW-WASHER (5X28)

93892-05028-07

$1.49

21

SCREW-WASHER (5X45)

93892-05045-07

$1.49

22

SCREW, TAPPING (3X8)

93901-32120

$1.49
