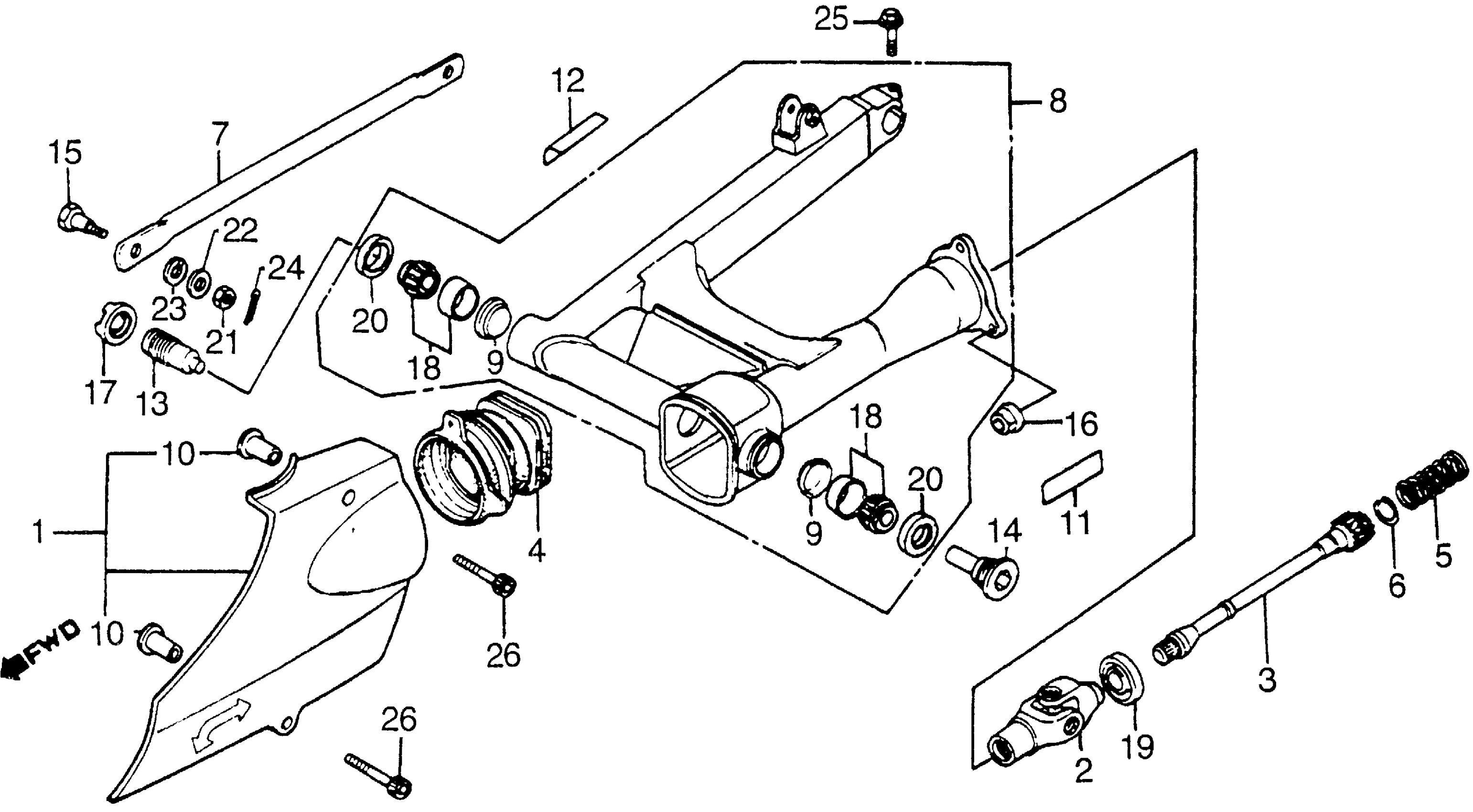

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 SWINGARM Diagram

#

Description
Price

1

COVER, L. RR. (NOT AVAILABLE)

11341-MG8-000

Unavailable

2

JOINT, YOKE

40200-MG8-003

Unavailable

3

SHAFT, DRIVE

40201-MG8-003

Unavailable

4

BOOT, JOINT

40207-MG8-000

$12.00

5

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

6

RING, STOPPER

40221-MB0-000

$4.53

7

ARM, RR. BRAKE STOPPER

43431-415-010

Unavailable

8

SWINGARM ASSY., RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-MG8-000ZA

Unavailable

9

HOLDER, SWINGARM GREASE

52112-MA1-300

$7.04

10

COLLAR, FAIRING SETTING (NOT AVAILABLE)

64532-MA6-720

Unavailable

11

LABEL, TIRE CAUTION (NOT AVAILABLE)

87505-MG8-670

Unavailable

12

MARK, ACCESSORY & LOADING CAUTION (NOT AVAILABLE)

87512-447-630

Unavailable

13

BOLT, R. RR. SWINGARM PIVOT (NOT AVAILABLE)

90121-MB0-000

Unavailable

14

BOLT, L. SWINGARM PIVOT

90122-MB0-000

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

16

NUT, HEX. (10MM)

90308-357-000

$4.85

17

NUT, SWINGARM PIVOT LOCK

90355-469-000

$17.54

18

BEARING (30203J) This part replaces 91066-MC7-003.

91066-MC7-004

Unavailable

18

BEARING (30203J)

91066-MC7-004

Unavailable

19

OIL SEAL (27X43X7)

91261-ME9-005

$12.13

20

DUST SEAL (26X40X5)

91268-463-003

$6.61

21

NUT, HEX. (8MM)

94001-08000-0S

$1.49

22

WASHER, PLAIN (8MM)

94101-08000

$1.49

23

WASHER, SPRING (10MM)

94111-10000

$1.49

24

PIN, SPLIT (2.0X15)

94201-20150

$1.49

25

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

25

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

26

BOLT, SOCKET (6X32)

96700-06032-00

$1.80
