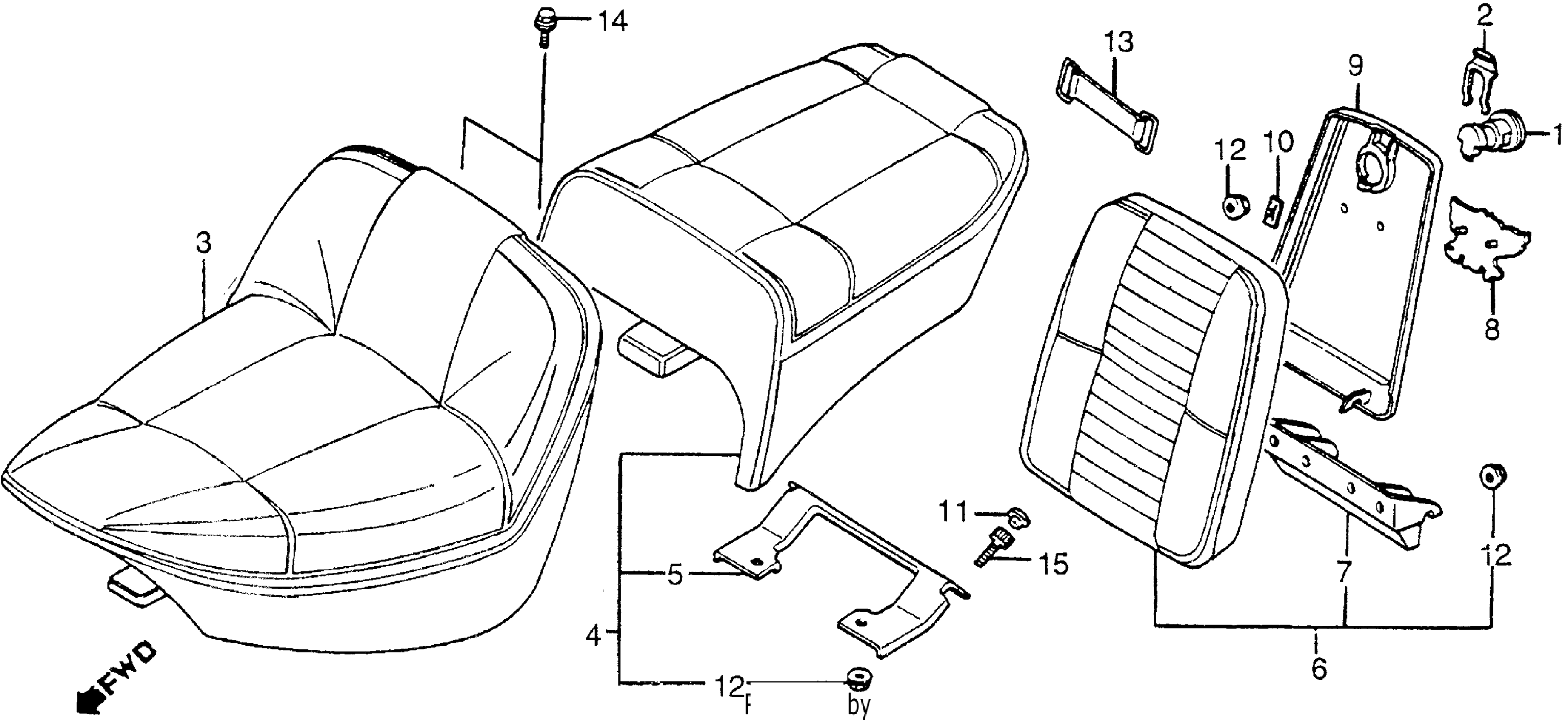

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 SEAT Diagram

#

Description
Price

1

LOCK, FILLER LID

37220-439-007

$54.29

2

SPRING, LOCK KEY SETTING

37222-463-000

$8.05

3

SEAT ASSY. (NOT AVAILABLE)

77100-MG8-000

Unavailable

4

SEAT ASSY., PILLION (NOT AVAILABLE)

77300-MG8-000

Unavailable

5

STAY, SEAT SETTING (NOT AVAILABLE)

77315-MG8-300

Unavailable

6

SEAT ASSY., BACK (NOT AVAILABLE)

81125-MG8-000

Unavailable

7

STAY B, SEAT SETTING (NOT AVAILABLE)

81130-MG8-300

Unavailable

8

EMBLEM, TOOL COVER (NOT AVAILABLE)

87125-MG8-300

Unavailable

9

COVER, TOOL (NOT AVAILABLE)

89005-MG8-000

Unavailable

10

NUT, SPEED (3MM)

90313-567-000

$3.97

11

CAP, SOCKET BOLT (NOT AVAILABLE)

91456-MA2-770

Unavailable

12

NUT, FLANGE (6MM)

94050-06080

$1.49

13

BAND, TOOL BOX

83606-198-900

Unavailable

14

BOLT, FLANGE SOCKET (6X16)

90010-MJ6-000

$2.99

15

BOLT, SOCKET (6X16) | Use up to Frame SN GA103439

96600-06016-00

$1.66

15

BOLT, SOCKET (6X16) | Use up to Frame SN GA103439 This part replaces 96700-06016-00.

96600-06016-00

$1.66

15

BOLT, SOCKET (6X16) | Use up to Frame SN GA103439 This part replaces 96700-06016-17.

96600-06016-00

$1.66

15

BOLT, FLANGE SOCKET (6X16) | Use from Frame SN GA103440

90010-MJ6-000

$2.99
