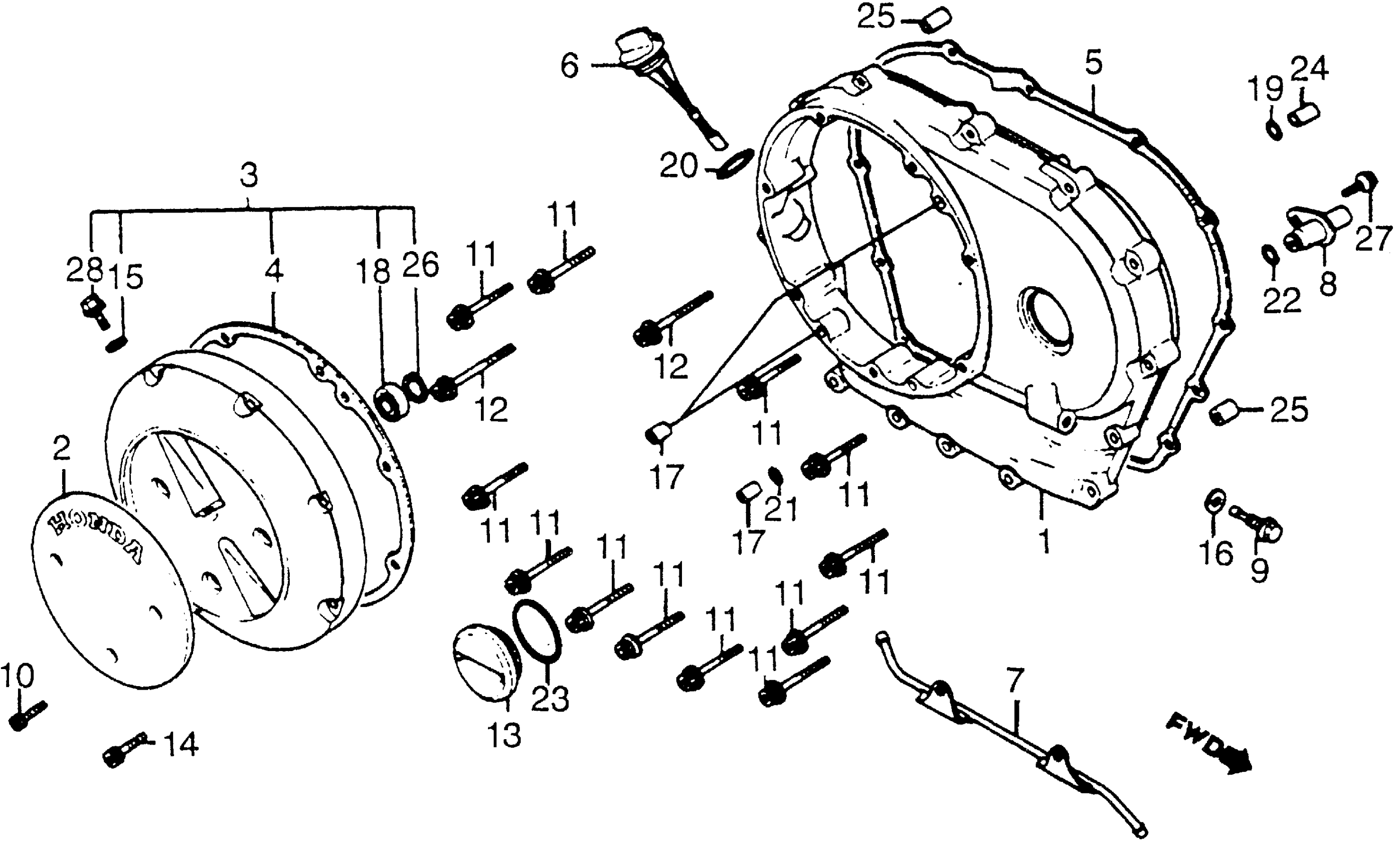

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE (NOT AVAILABLE)

11330-MG8-000

Unavailable

BASE, EMBLEM (NOT AVAILABLE)

11362-MG8-000

Unavailable

COVER, CLUTCH (NOT AVAILABLE)

11370-MG8-000

Unavailable

GASKET, CLUTCH COVER This part replaces 11372-MG8-000.

11372-MM8-880

$11.72

GASKET, CLUTCH COVER This part replaces 11372-MG8-306.

11372-MM8-880

$11.72

GASKET, CLUTCH COVER

11372-MM8-880

$11.72

GASKET, R. CRANKCASE COVER This part replaces 11394-MG8-000.

11394-MG8-306

Unavailable

GASKET, R. CRANKCASE COVER

11394-MG8-306

Unavailable

DIPSTICK, OIL This part replaces 15650-MG8-000.

15650-MM4-000

Unavailable

VALVE ASSY., CLUTCH REGULATOR

22360-MG8-000

Unavailable

BOLT, CLUTCH OIL CONTROL | Use up to Engine SN 2109893 This part replaces 90001-MG8-000.

90001-MG8-010

Unavailable

BOLT, CLUTCH OIL CONTROL

90001-MG8-010

Unavailable

BOLT, SOCKET (4X10)

90073-ME9-000

$3.85

BOLT, FLANGE SOCKET (6X38)

90077-MG8-000

Unavailable

BOLT, SOCKET (6X50) (NOT AVAILABLE) This part replaces 90078-MG8-000.

90009-KN8-730

Unavailable

CAP (45MM) (NOT AVAILABLE)

90087-KE9-000

Unavailable

BOLT, SOCKET (6X30)

90117-GB2-000

$4.53

WASHER (11MM)

90425-300-000

$2.66

WASHER, SEALING (8MM)

90441-MG8-000

$2.28

PIN, DOWEL (6X15)

90702-MG8-000

$2.97

OIL SEAL (7X18X5) (ARAI)

91220-MG8-003

$4.33

O-RING B (6.8X2.5) (ARAI)

91304-MC7-003

$2.92

O-RING (21.5X3.2)

91307-425-003

$2.59

O-RING (5.7X2.2) (ARAI)

91308-MB0-003

$2.22

O-RING (7X1.7)

91312-107-000

$3.18

O-RING (41.5X2)

91358-MG7-004

Unavailable

PIN A, DOWEL (7X12)

94301-07120

$2.05

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (INNER) (18MM)

94520-18000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.55

BOLT, FLANGE (6X10)

96001-06010-00

$1.55
