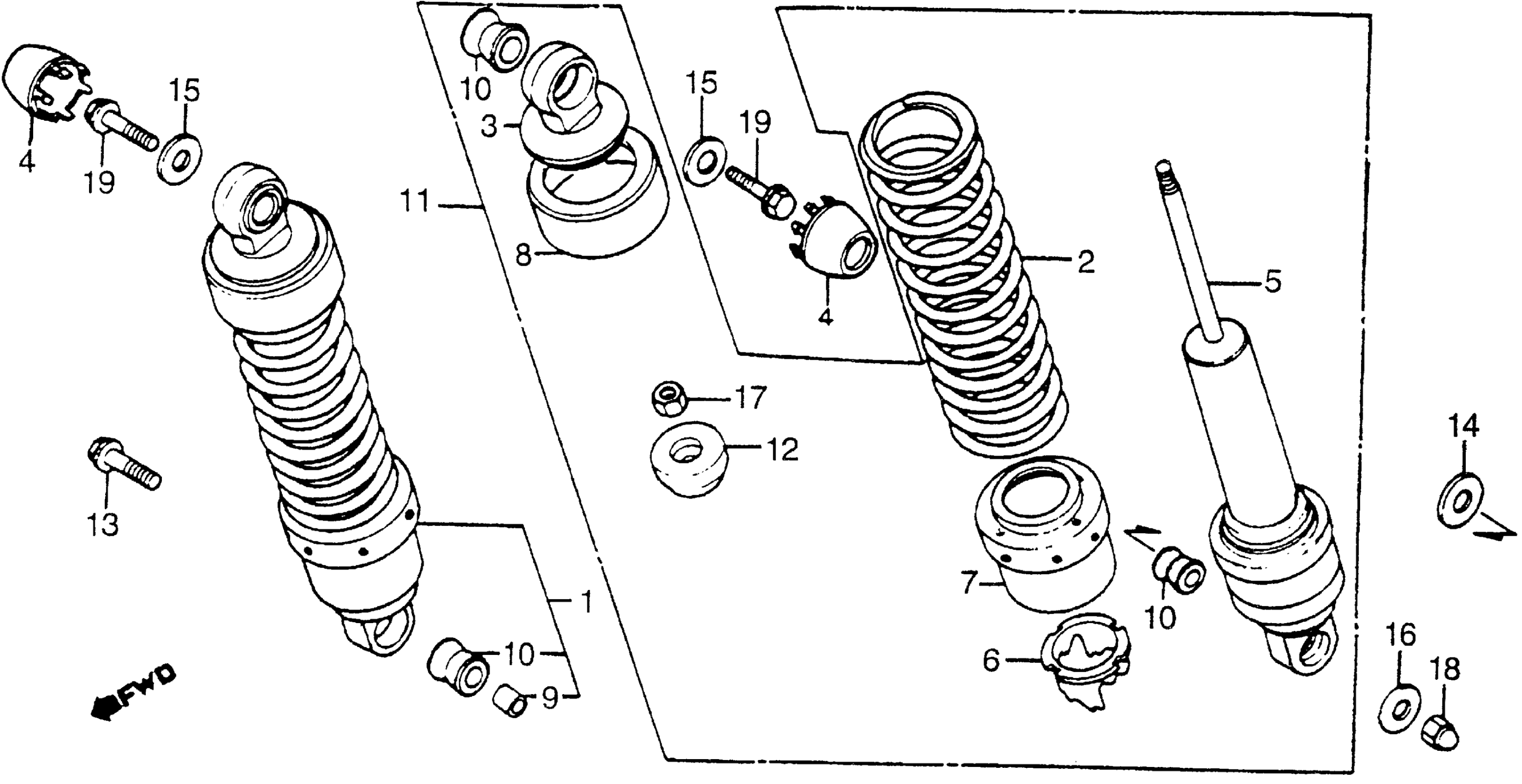

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., R. RR.

52400-MG8-405

Unavailable

1

SHOCK ABSORBER ASSY., R. RR. This part replaces 52400-MG8-671.

52400-MG8-405

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-MG8-671

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE)

52403-MK3-003

Unavailable

4

CAP, RR. SHOCK ABSORBER JOINT (UPPER)

52405-MK3-000

Unavailable

5

DAMPER, RR. (NOT AVAILABLE)

52410-MG8-671

Unavailable

6

ADJUSTER, SPRING This part replaces 52422-ME9-003.

52422-ME9-013

Unavailable

6

ADJUSTER, SPRING

52422-ME9-013

Unavailable

7

SEAT, SPRING (NOT AVAILABLE)

52458-ME9-003

Unavailable

8

CASE, RR. SHOCK ABSORBER (UPPER)

52460-MB1-871

Unavailable

9

COLLAR, RR. SHOCK ABSORBER

52486-463-000

$7.77

10

BUSH, RUBBER (UPPER) (SHOWA)

52489-461-771

$6.34

11

SHOCK ABSORBER ASSY., L. RR.

52400-MG8-405

Unavailable

11

SHOCK ABSORBER ASSY., R. RR. This part replaces 52500-MG8-671.

52400-MG8-405

Unavailable

12

RUBBER, STOPPER

52517-MK3-003

Unavailable

13

BOLT, FLANGE (10X35) | Use up to Frame SN GA102989 This part replaces 90178-MJ8-000.

95801-10035-02

$2.31

13

BOLT, FLANGE (10X35) | Use up to Frame SN GA102989

95801-10035-02

$2.31

13

BOLT, FLANGE (10X35) | Use from Frame SN GA102990 This part replaces 95800-10035-02.

95801-10035-02

$2.31

14

WASHER, PLAIN (16MM)

90439-463-000

$1.50

15

WASHER (8.5X26)

90504-MA6-000

$1.66

16

WASHER (10.3MM)

90521-292-000

$3.42

17

NUT, HEX. (12MM)

94002-12000-0S

$2.06

18

NUT, CAP (10MM)

94021-10020-0S

$2.08

19

BOLT, FLANGE (8X18) This part replaces 95700-08018-00.

95701-08018-00

$1.80

19

BOLT, FLANGE (8X18)

95701-08018-00

$1.80
