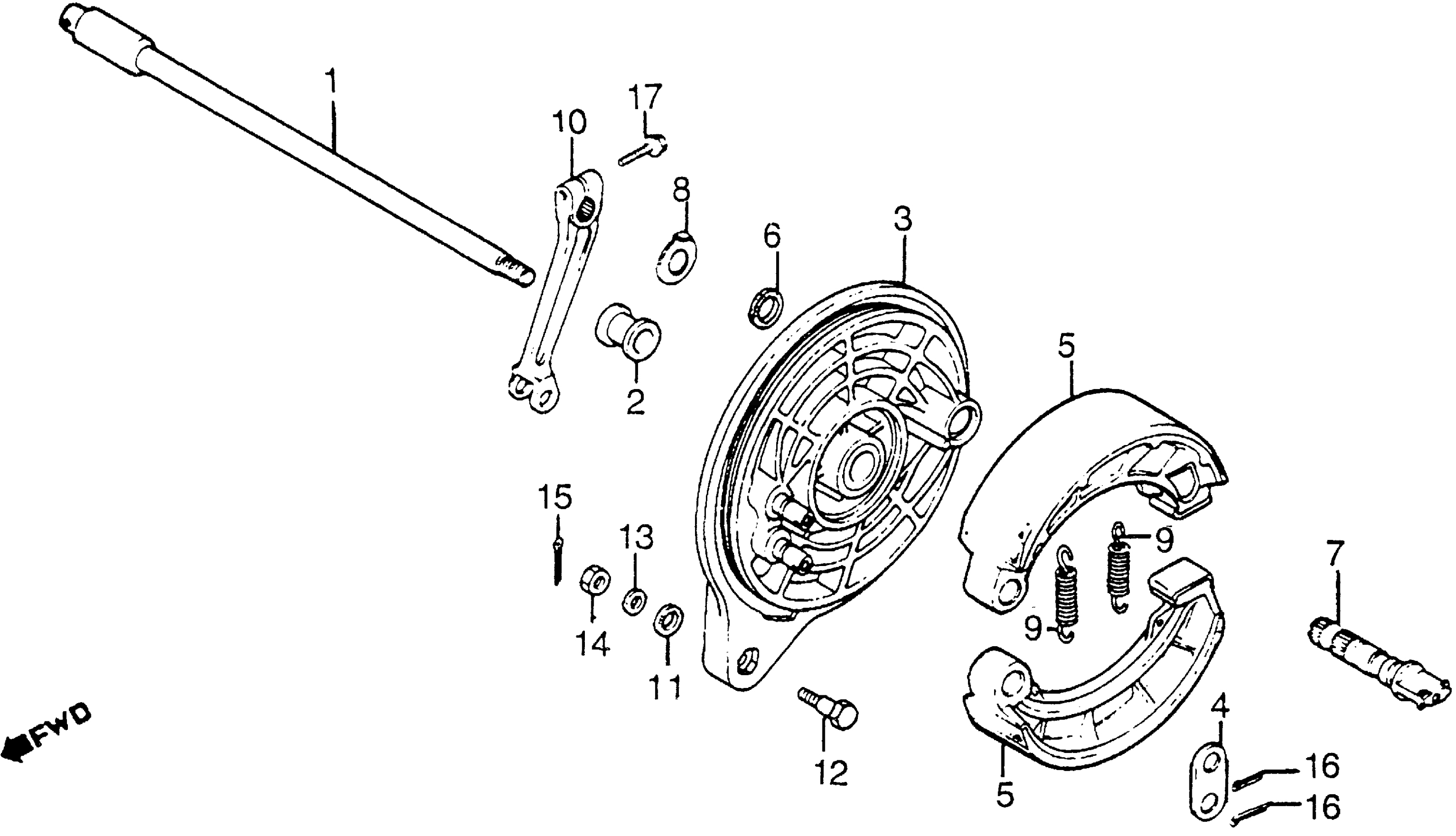

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE This part replaces 06430-MJ1-006.

06430-MM8-881

$55.16

NI

SHOE KIT, BRAKE

06430-MM8-881

$55.16

NI

SHOE KIT, BRAKE This part replaces 431A2-MJ1-006.

06430-MM8-881

$55.16

1

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-MK3-000

Unavailable

2

COLLAR, RR. WHEEL SIDE

42313-MK3-000

Unavailable

3

PANEL, RR. This part replaces 43100-MJ1-831.

43100-MJ1-832

Unavailable

3

PANEL, RR.

43100-MJ1-832

Unavailable

4

WASHER, ANCHOR PIN

43102-319-000

$6.21

4

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$6.21

5

SHOE KIT, BRAKE

06430-MM8-881

$55.16

5

SHOE KIT, BRAKE This part replaces 43120-MJ1-006.

06430-MM8-881

$55.16

5

SHOE KIT, BRAKE This part replaces 43120-MJ1-405.

06430-MM8-881

$55.16

6

DUST SEAL, BRAKE CAM

43134-300-000

$2.09

7

CAM, RR. BRAKE This part replaces 43141-MB0-000.

43141-MB0-010

$41.60

7

CAM, RR. BRAKE

43141-MB0-010

$41.60

8

INDICATOR, RR. BRAKE

43145-ME5-000

$5.84

9

SPRING, RR. BRAKE SHOE

43151-346-000

$5.90

10

ARM, RR. BRAKE This part replaces 43410-ME5-000.

43410-ME5-405

Unavailable

11

RUBBER, STOPPER ARM

43434-ME1-670

$3.47

12

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.85

13

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

14

NUT, HEX. (8MM)

94001-08000-0S

$1.49

15

PIN, SPLIT (2.0X15)

94201-20150

$1.49

16

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

16

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

16

PIN, SPLIT (2.5X30)

94201-25300

$1.49

17

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

17

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
