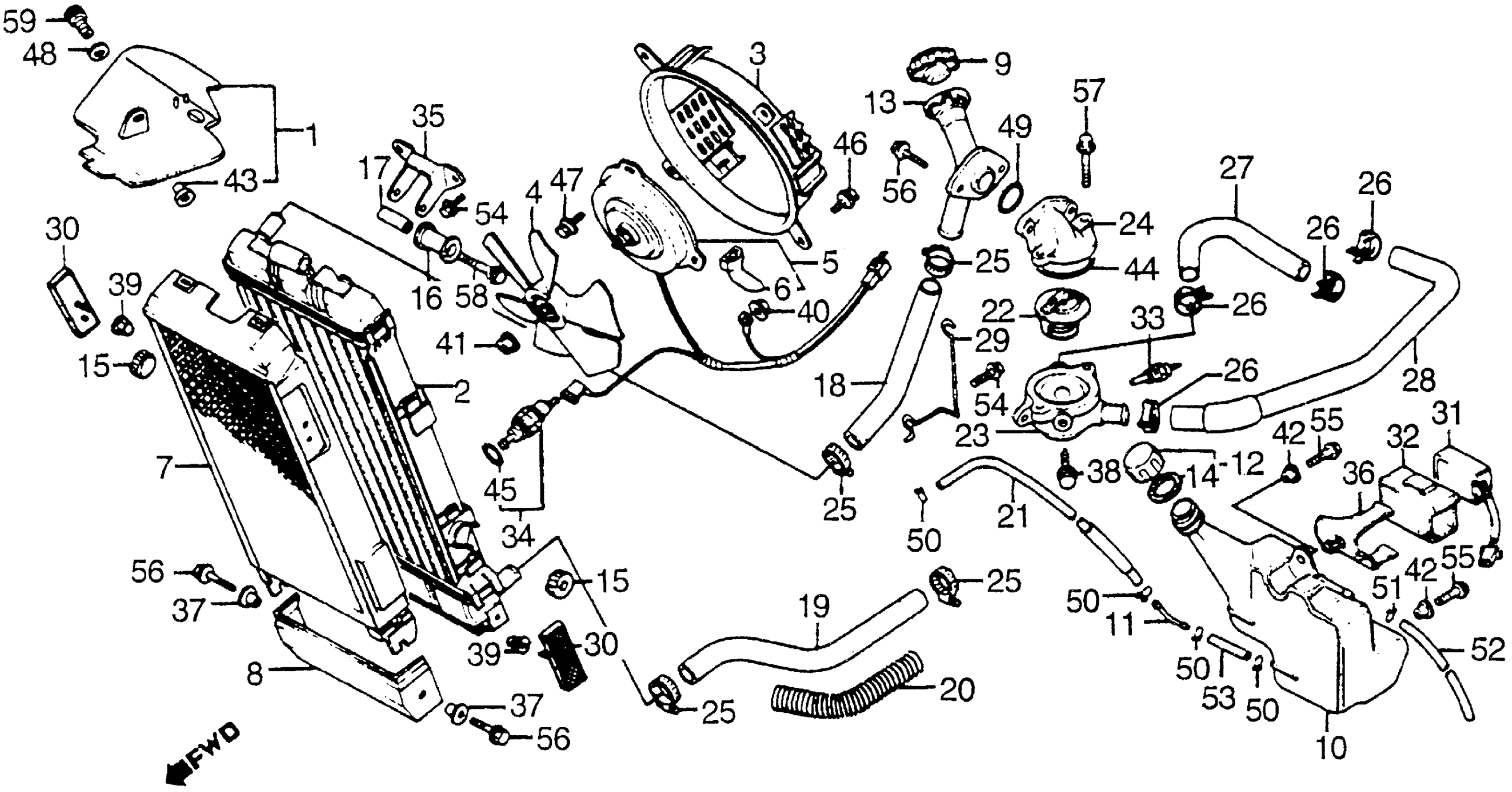

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 RADIATOR + THERMOSTAT Diagram

#

Description
Price

1

GUARD A, HEAT (NOT AVAILABLE)

17220-MG8-000

$31.03

2

RADIATOR (NOT AVAILABLE)

19010-MG8-003

Unavailable

3

SHROUD (NOT AVAILABLE)

19015-MG8-003

Unavailable

4

FAN, COOLING

19020-MG8-003

$62.31

5

MOTOR ASSY., FAN (NOT AVAILABLE) This part replaces 19030-MG8-004.

19030-MG8-024

Unavailable

5

MOTOR ASSY., FAN (NOT AVAILABLE) This part replaces 19030-MG8-014.

19030-MG8-024

Unavailable

5

MOTOR ASSY., FAN (NOT AVAILABLE)

19030-MG8-024

Unavailable

6

TUBE, RUBBER

19031-MG8-300

Unavailable

7

COVER, RADIATOR (NOT AVAILABLE)

19040-MG8-000

Unavailable

8

COVER, RADIATOR (LOWER)

19041-MG8-000

Unavailable

9

CAP, RADIATOR This part replaces 19045-MB3-000.

19045-MZ3-405

$32.49

10

TANK, RESERVE (NOT AVAILABLE)

19103-MG8-000

Unavailable

11

JOINT, TUBE (NOT AVAILABLE)

19103-463-000

Unavailable

12

CAP ASSY., RESERVE TANK

19105-MG8-000

$12.95

13

NECK, FILLER (NOT AVAILABLE)

19106-MG8-003

Unavailable

14

GASKET, RESERVE TANK

19107-MG8-000

$5.05

15

RUBBER, RADIATOR (NOT AVAILABLE)

19112-ME9-000

Unavailable

16

RUBBER, RADIATOR SETTING (NOT AVAILABLE)

19113-MB0-000

Unavailable

17

COLLAR, RADIATOR SETTING (NOT AVAILABLE)

19114-MB0-000

Unavailable

18

HOSE, RADIATOR (UPPER) (NOT AVAILABLE)

19116-MG8-000

Unavailable

19

HOSE, RADIATOR (LOWER) (NOT AVAILABLE)

19117-MG8-000

Unavailable

20

GUARD, RADIATOR HOSE (LOWER) (NOT AVAILABLE)

19120-MG8-000

Unavailable

21

TUBE, RESERVE

19206-MG8-000

Unavailable

22

THERMOSTAT

19300-MB0-003

$52.78

23

CASE, THERMOSTAT (NOT AVAILABLE)

19311-MG8-000

Unavailable

24

COVER, THERMOSTAT

19315-MG8-000

$69.39

25

CLAMP, WATER HOSE

19503-MB1-870

$12.56

25

CLAMP, WATER HOSE This part replaces 19516-MJ8-000.

19503-MB1-870

$12.56

26

CLIP, WATER HOSE

19517-KM9-000

$8.28

27

HOSE A, OUTLET WATER (NOT AVAILABLE)

19521-MG8-000

Unavailable

28

HOSE B, OUTLET WATER (NOT AVAILABLE)

19522-MG8-000

Unavailable

29

CLAMP, WIRE HARNESS (NOT AVAILABLE)

32110-MG8-000

Unavailable

30

REFLECTOR, FR. REFLEX This part replaces 33741-ME9-672.

33741-ME9-673

$17.74

30

REFLECTOR, FR. REFLEX

33741-ME9-673

$17.74

31

RELAY, FUEL CUT (NOT AVAILABLE)

36100-MG8-008

Unavailable

32

SUSPENSION, FUEL CUT RELAY (NOT AVAILABLE) This part replaces 36101-MG8-000.

36101-MG8-010

Unavailable

32

SUSPENSION, FUEL CUT RELAY (NOT AVAILABLE)

36101-MG8-010

Unavailable

33

THERMO UNIT (DENSO)

37750-PC1-004

$81.34

34

SWITCH ASSY., THERMO This part replaces 37760-MB2-901.

37760-MR1-003

$71.91

34

SWITCH ASSY., THERMO

37760-MR1-003

$71.91

35

STAY, RADIATOR SETTING (NOT AVAILABLE)

50195-MG8-000

Unavailable

36

BRACKET, FUEL CUT RELAY (NOT AVAILABLE)

50350-MG8-000

Unavailable

37

COLLAR, NUMBER PLATE

84706-KG0-000

$3.95

38

BOLT, SPECIAL (8MM)

90042-MB6-000

Unavailable

39

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

40

NUT, FLANGE (6MM) This part replaces 90203-PD1-000.

94050-06070

$1.49

40

NUT, FLANGE (6MM) This part replaces 90301-428-900.

94050-06070

$1.49

40

NUT, FLANGE (6MM)

94050-06070

$1.49

41

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

42

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

43

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

44

O-RING (54X2) (ARAI)

91307-MB0-003

$3.23

45

O-RING (13.5X1.4)

91307-PH7-660

$2.83

45

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

46

BOLT, FLANGE (6X12) This part replaces 93493-06012-07.

95701-06012-00

$1.62

46

BOLT, FLANGE (6X12) This part replaces 95700-06012.

95701-06012-00

$1.62

46

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

46

BOLT, FLANGE (6X12) This part replaces 95700-06012-10.

95701-06012-00

$1.62

46

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

46

BOLT, FLANGE (6X12) This part replaces 95800-06012.

95701-06012-00

$1.62

46

BOLT, FLANGE (6X12) This part replaces 95900-06012-02.

95701-06012-00

$1.62

47

SCREW-WASHER (5X12)

93893-05012-07

$1.49

48

WASHER, PLAIN (6MM) | Use up to Frame SN GA102990

94101-06700

$1.49

49

O-RING (23X2.4)

94608-30000

$1.49

50

CLIP, TUBE (B12)

95002-02120

$2.00

51

CLIP, TUBE (C11)

95002-70000

$1.56

52

BULK HOSE, VACUUM (7X3000) (7X330)

95005-70003-30M

$23.45

53

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

54

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

54

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

55

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

55

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

56

BOLT, FLANGE (6X14) This part replaces 96000-06014-07.

96001-06014-07

$1.49

56

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

57

BOLT, FLANGE (6X20) This part replaces 96000-06020-07.

96001-06020-07

$1.49

57

BOLT, FLANGE (6X20)

96001-06020-07

$1.49

58

BOLT, FLANGE (6X40) This part replaces 96000-06040-07.

96001-06040-07

$1.49

58

BOLT, FLANGE (6X40)

96001-06040-07

$1.49

59

BOLT, SOCKET (6X16) | Use up to Frame SN GA102989

96600-06016-07

$1.74

59

BOLT, SOCKET (6X16) | Use up to Frame SN GA102989 This part replaces 96700-06016-07.

96600-06016-07

$1.74

59

BOLT, FLANGE SOCKET (6X16) | Use from Frame SN GA102990

90010-MJ6-000

$2.99
