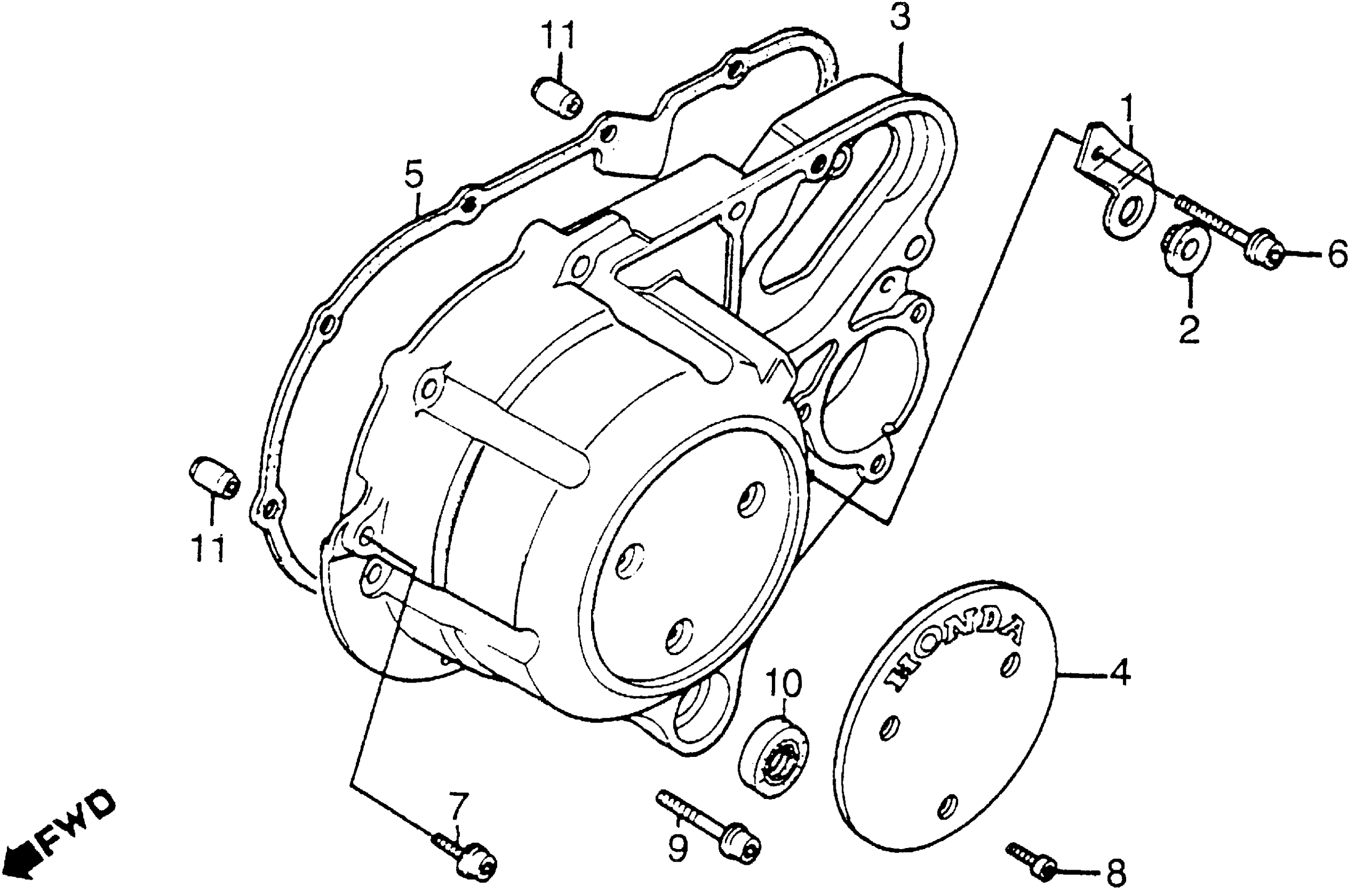

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 LEFT CRANKCASE COVER Diagram

#

Description

Price

1

STAY, L. RR. COVER (NOT AVAILABLE)

11342-MG8-010

Unavailable

2

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

3

COVER, L. CRANKCASE This part replaces 11361-MG8-000.

11361-MG8-415

Unavailable

4

BASE, EMBLEM (NOT AVAILABLE)

11362-MG8-000

Unavailable

5

GASKET, L. CRANKCASE COVER This part replaces 11395-MG8-000.

11395-MM8-880

$18.98

5

GASKET, L. CRANKCASE COVER This part replaces 11395-MG8-306.

11395-MM8-880

$18.98

5

GASKET, L. CRANKCASE COVER

11395-MM8-880

$18.98

6

BOLT, FLANGE SOCKET (6X42)

90013-ME5-000

Unavailable

7

BOLT, FLANGE SOCKET (6X16)

90071-MG8-000

$2.66

8

BOLT, SOCKET (4X10)

90073-ME9-000

$3.85

9

BOLT, FLANGE SOCKET (6X35)

90081-MG8-000

$5.11

10

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

11

PIN, DOWEL (8X14)

94301-08140

$2.25
