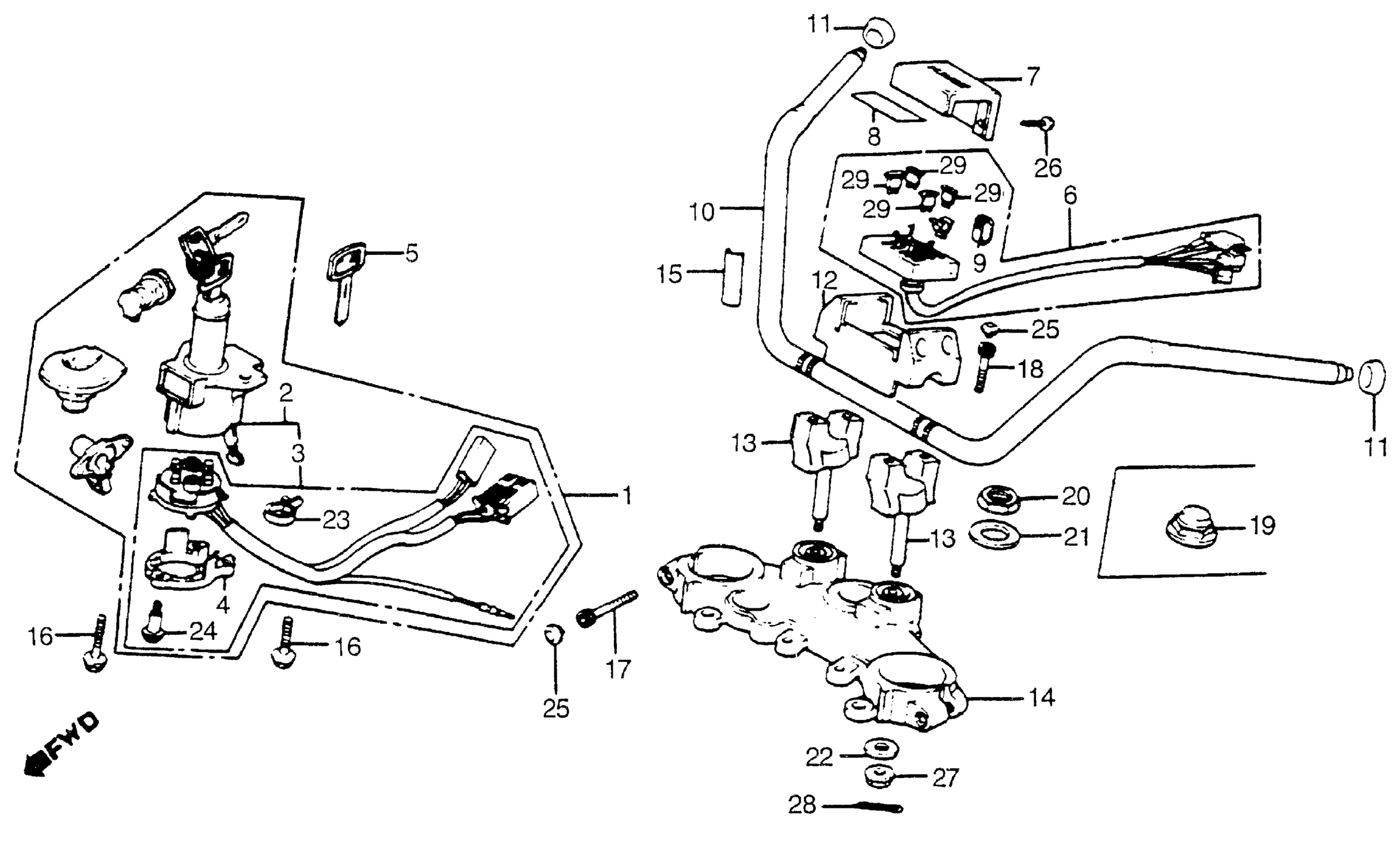

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 HANDLEBAR + TOP BRIDGE Diagram

LOCK SET (NOT AVAILABLE)

35010-MG8-000

Unavailable

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE)

35100-MG8-007

Unavailable

BASE, CONTACT (NOT AVAILABLE)

35101-MG8-007

Unavailable

COVER, SWITCH This part replaces 35105-MG9-680.

35105-MG9-681

Unavailable

COVER, SWITCH

35105-MG9-681

Unavailable

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

PLATE ASSY., FUSE (NOT AVAILABLE)

38200-MG8-005

Unavailable

COVER, FUSE (NOT AVAILABLE)

38210-MG8-000

Unavailable

LABEL, FUSE (NOT AVAILABLE)

38215-MG8-300

Unavailable

PULLER, FUSE (DAIICHI)

38235-SA5-004

Unavailable

HANDLEBAR (NOT AVAILABLE)

53101-MG8-000

Unavailable

RING, HANDLEBAR

53105-MG9-680

Unavailable

HOLDER, HANDLE (UPPER) (NOT AVAILABLE)

53131-MG8-000

Unavailable

HOLDER (LOWER) (NOT AVAILABLE)

53231-MG8-000

Unavailable

BRIDGE, FORK TOP (NOT AVAILABLE) This part replaces 53232-MG8-000.

53232-MG8-010

Unavailable

BRIDGE, FORK TOP (NOT AVAILABLE)

53232-MG8-010

Unavailable

LABEL, FR. FORK CAUTION (NOT AVAILABLE)

87517-MB1-770

Unavailable

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

BOLT, SOCKET (7X32)

90151-MB1-000

$6.52

BOLT, SOCKET (8X32)

90154-ME9-000

$5.73

NUT, STEERING STEM

90304-MK4-000

$19.56

WASHER, HANDLE CUSHION

90535-KB9-000

$6.14

BAND, SELF-LOCK

91058-MG9-681

$2.21

SCREW, TAPPING (3X16)

91059-MG9-681

$2.39

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

SCREW, FLAT (5X8)

93600-05008-0G

$1.49

NUT, FLANGE (8MM)

94050-08000

$1.49

PIN, SPLIT (2.0X12)

94201-20120

$1.49

FUSE, BLADE (10A)

98200-31000

$1.49
