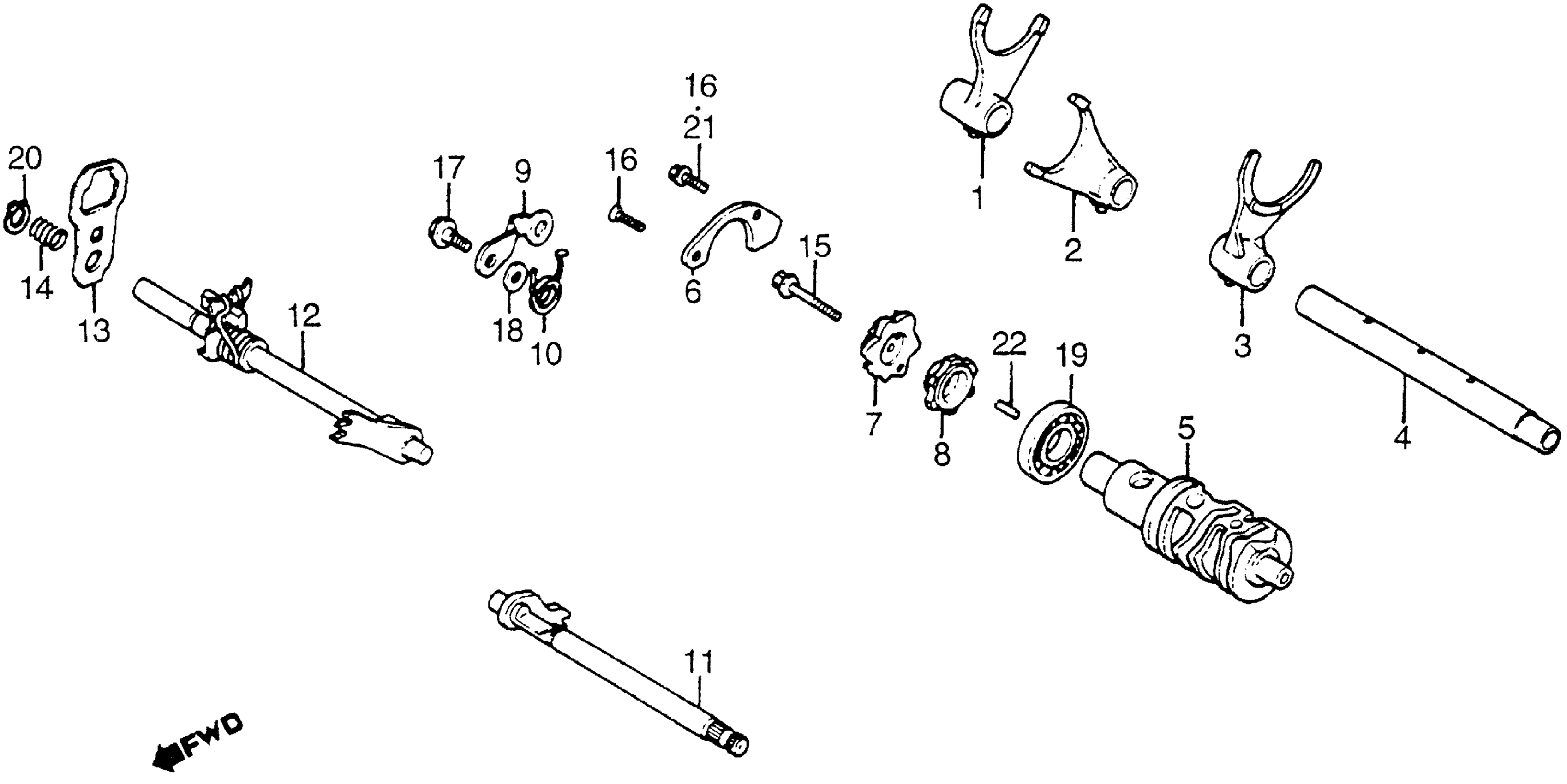

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE) This part replaces 24211-MG8-000.

24211-MM8-000

Unavailable

1

FORK, R. GEARSHIFT

24211-MM8-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-MAA-A00

Unavailable

2

FORK, CENTER GEARSHIFT This part replaces 24212-MG8-000.

24212-MAA-A00

Unavailable

3

FORK, L. GEARSHIFT

24213-MG8-000

Unavailable

4

SHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24261-MG8-770

Unavailable

5

DRUM, GEARSHIFT

24302-MG8-000

Unavailable

6

PLATE, SHIFT DRUM BEARING SETTING (NOT AVAILABLE) | Use up to Engine SN 2106849

24310-MG8-000

Unavailable

6

PLATE, SHIFT DRUM BEARING SETTING (NOT AVAILABLE) | Use from Engine SN 2106850

24310-MG8-010

Unavailable

7

CAM, GEARSHIFT (NOT AVAILABLE)

24411-MG8-771

Unavailable

8

ROTOR, POSITIVE STOPPER

24413-KA6-003

Unavailable

9

STOPPER, GEARSHIFT DRUM

24430-MG8-000

Unavailable

10

SPRING, SHIFT DRUM STOPPER

24435-MM8-000

Unavailable

10

SPRING, SHIFT DRUM STOPPER This part replaces 24435-MG8-771.

24435-MM8-000

Unavailable

11

SPINDLE, GEARSHIFT (A)

24610-MG8-000

Unavailable

12

SPINDLE B, GEARSHIFT

24615-MG8-000

Unavailable

13

PLATE, GEARSHIFT

24621-MG8-000

Unavailable

14

SPRING, GEARSHIFT PLATE

24631-362-000

Unavailable

15

BOLT, FLANGE (6X32)

90021-ME9-000

$2.93

16

SCREW, FLAT (6X16)

90022-ME9-000

$2.30

17

PIVOT, SHIFT DRUM STOPPER ARM

90022-MG8-000

$2.48

18

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.41

19

BEARING, RADIAL BALL (17X32X7)

91006-MCK-A01

Unavailable

19

BEARING, RADIAL BALL (17X32X7) This part replaces 91006-MG8-003.

91006-MCK-A01

Unavailable

20

CIRCLIP, OUTER (12MM)

94510-12000

$1.78

21

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

22

ROLLER (3X10)

96222-30100

$1.49
