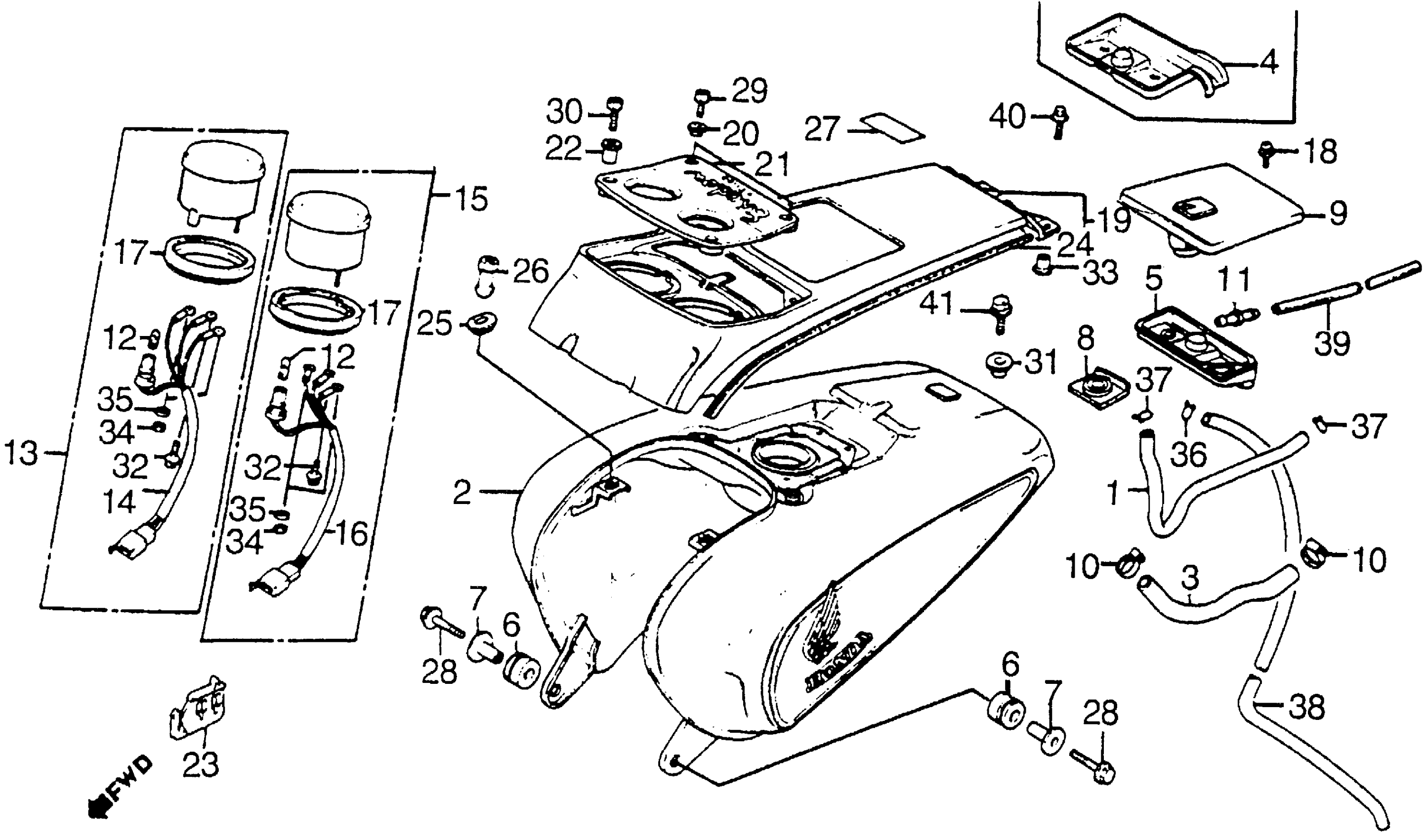

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 FUEL TANK Diagram

#

Description
Price

1

TUBE, SUB-TANK BREATHER (NOT AVAILABLE)

16957-MG8-000

Unavailable

2

TANK SET, FUEL *NH1* (TYPE1) (BLACK)

17530-MG8-770ZA

Unavailable

2

TANK SET, FUEL *NH1* (TYPE2) (BLACK)

17530-MG8-770ZB

Unavailable

3

TUBE, FUEL (NOT AVAILABLE)

17511-MG8-000

Unavailable

5

TRAY, FUEL (NOT AVAILABLE)

17520-MG8-770

Unavailable

6

RUBBER, FR. TANK

17611-449-010

$6.34

7

COLLAR, FR. TANK SETTING (NOT AVAILABLE)

17612-449-000

Unavailable

8

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-ME9-000

Unavailable

9

CAP, FUEL FILLER (NOT AVAILABLE)

17620-MG8-003

Unavailable

10

CLAMP B, WATER HOSE

19517-MB6-000

Unavailable

11

JOINT, BATTERY BREATHER (NOT AVAILABLE)

31503-190-670

Unavailable

12

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.78

13

METER ASSY., FUEL (NOT AVAILABLE)

37300-MG8-009

Unavailable

14

SOCKET, FUEL METER (NOT AVAILABLE)

37302-MG8-009

Unavailable

15

METER ASSY., TEMPERATURE (NOT AVAILABLE)

37400-MG8-009

Unavailable

16

SOCKET, TEMPERATURE METER (NOT AVAILABLE)

37402-MG8-009

Unavailable

17

RUBBER, MOUNTING (NOT AVAILABLE)

37405-MG8-009

Unavailable

18

SCREW-WASHER (4X6)

45319-634-003

$2.48

19

COVER, FUEL TANK *NH1* (BLACK) (NOT AVAILABLE)

83101-MG8-000ZA

Unavailable

20

COLLAR, METER PANEL (NOT AVAILABLE)

83103-MG8-000

Unavailable

21

PANEL, SHELTER METER (NOT AVAILABLE)

83104-MG8-000

Unavailable

22

COLLAR, METER PANEL (B) (NOT AVAILABLE)

83106-MG8-000

Unavailable

23

HOLDER, ELECTRIC (NOT AVAILABLE)

83107-MG8-000

Unavailable

24

RUBBER (NOT AVAILABLE)

83112-MG8-300

Unavailable

25

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

26

STAY, RR. COWL

83733-ME8-000

$10.51

27

MARK, DRIVE CAUTION (TYPEG)

87560-ME9-670ZA

$5.22

28

BOLT, FLANGE (8X35) This part replaces 95700-08035-02.

95701-08035-02

$1.97

28

BOLT, FLANGE (8X35)

95701-08035-02

$1.97

29

BOLT, SOCKET (6X10)

90115-MG8-000

Unavailable

30

BOLT, SOCKET (6X25) (NOT AVAILABLE)

90116-MG8-000

Unavailable

31

COLLAR, FUEL TANK SETTING (NOT AVAILABLE)

90324-MB0-700

Unavailable

32

SCREW-WASHER (3X7) (NOT AVAILABLE)

90510-MG8-009

Unavailable

33

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

34

NUT, HEX. (4MM)

94001-04000-0S

$1.49

35

WASHER, SPRING (4MM)

94111-04800

$1.49

37

CLIP, TUBE (B10)

95002-02100

$1.90

38

BULK HOSE, FUEL (4.5X3000) (4.5X680)

95001-45003-60M

$36.67

39

BULK HOSE, VACUUM (5.5X3000) (5.5X690)

95005-55003-20M

$34.09

40

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

40

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

41

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

41

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
