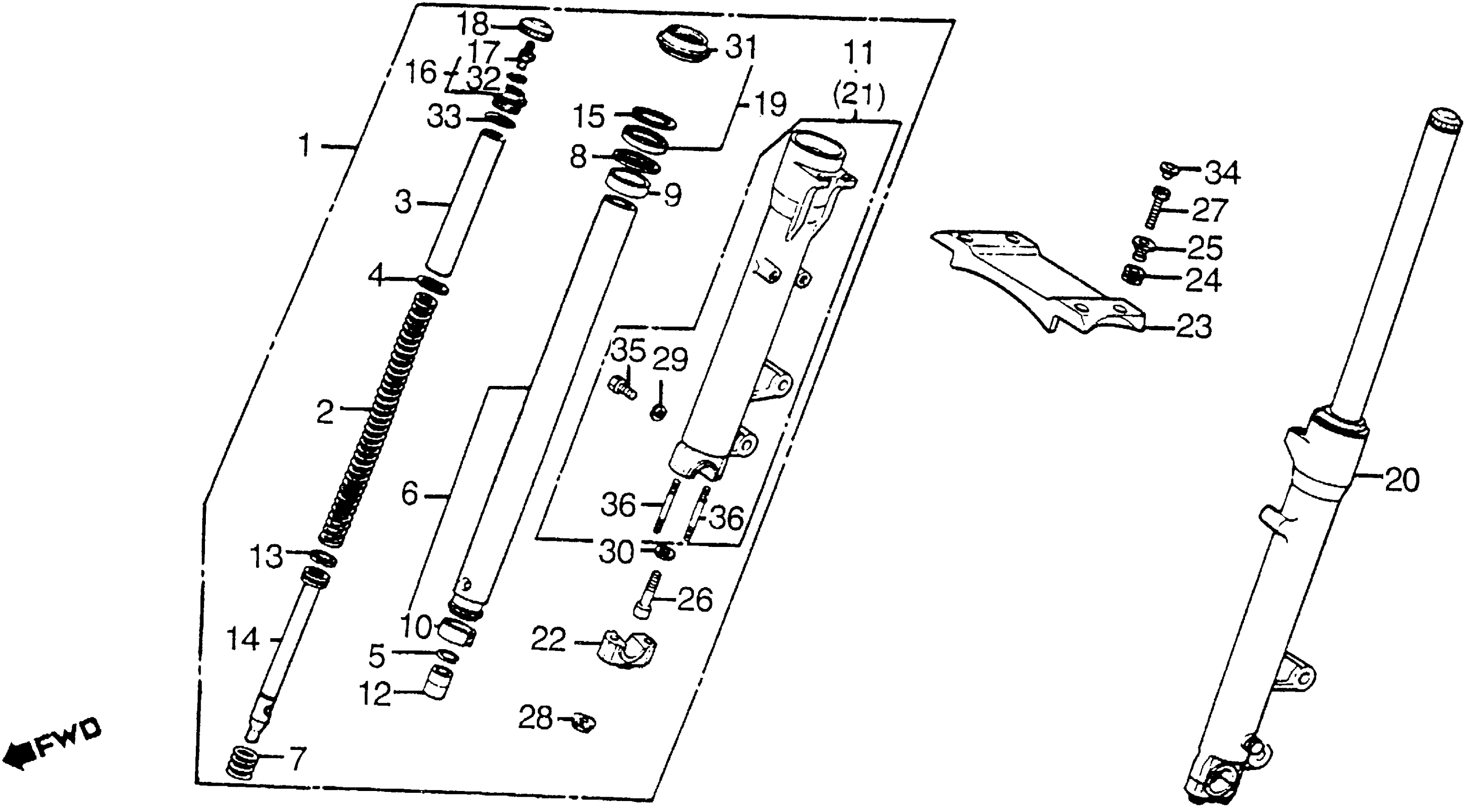

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 FRONT FORK Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., R. FR. (NOT AVAILABLE)

51400-MG8-671

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-MG8-671

Unavailable

3

COLLAR, SPRING (NOT AVAILABLE)

51402-MB6-611

Unavailable

4

PLATE, SPRING JOINT

51404-MB4-003

$4.94

5

RING, STOPPER

51405-MB7-611

$2.92

6

PIPE, FR. FORK (NOT AVAILABLE)

51410-MG8-671

Unavailable

7

SPRING, REBOUND (NOT AVAILABLE)

51411-MB4-003

Unavailable

8

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

8

RING, BACK-UP (SHOWA) This part replaces 51412-MB4-305.

51412-MB4-003

$9.65

9

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

9

BUSH, GUIDE (SHOWA) This part replaces 51414-MB4-003.

51414-KCR-003

$14.02

9

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$14.02

10

BUSH, SLIDER (A)

51415-MB4-003

Unavailable

11

CASE, R. (LOWER) (NOT AVAILABLE)

51421-MG8-003

Unavailable

12

PIECE, OIL LOCK

51432-MG8-671

Unavailable

13

RING, PISTON

51437-MB4-003

$9.57

14

PIPE, SEAT (NOT AVAILABLE)

51440-MG8-671

Unavailable

15

CIRCLIP (INNER)

51447-MB4-003

$4.66

16

BOLT ASSY., L. FR. FORK (NOT AVAILABLE) This part replaces 51450-MG8-671.

51450-MB6-631

Unavailable

17

VALVE, AIR

51456-469-013

$33.69

18

CAP, AIR VALVE

51457-MG1-003

Unavailable

19

SEAL SET, FR. FORK (SHOWA) This part replaces 51490-MB4-315.

51490-MN8-305

$35.20

19

SEAL SET, FR. FORK

51490-MN8-305

$35.20

20

SHOCK ABSORBER ASSY., L. FR. (NOT AVAILABLE)

51500-MG8-671

Unavailable

21

CASE, L. (LOWER) (NOT AVAILABLE)

51521-MG8-003

Unavailable

22

HOLDER, AXLE

51634-MG8-003

Unavailable

23

BRACE, FR. SHOCK (NOT AVAILABLE)

53240-MG8-000

Unavailable

24

GROMMET, SHOCK BRACE (NOT AVAILABLE)

53241-MG8-000

Unavailable

25

COLLAR, SHOCK BRACE (NOT AVAILABLE)

53242-MG8-000

Unavailable

26

BOLT, SOCKET (8X27)

90116-383-721

$5.13

27

BOLT, SOCKET (6X20)

90153-MG8-000

Unavailable

28

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

28

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

29

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.46

30

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

31

DUST SEAL This part replaces 91254-MB4-003.

91254-MM8-003

$17.88

31

DUST SEAL

91254-MM8-003

$17.88

32

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

32

O-RING (5.8X1.9)

91305-323-000

$2.92

32

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

33

O-RING (32.9X2.4) (NOT AVAILABLE)

91356-MG8-671

Unavailable

34

CAP, SOCKET BOLT (6MM)

91455-MG8-000

Unavailable

35

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

35

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

36

BOLT 2, STUD (8X32)

92900-08032-3E

Unavailable
