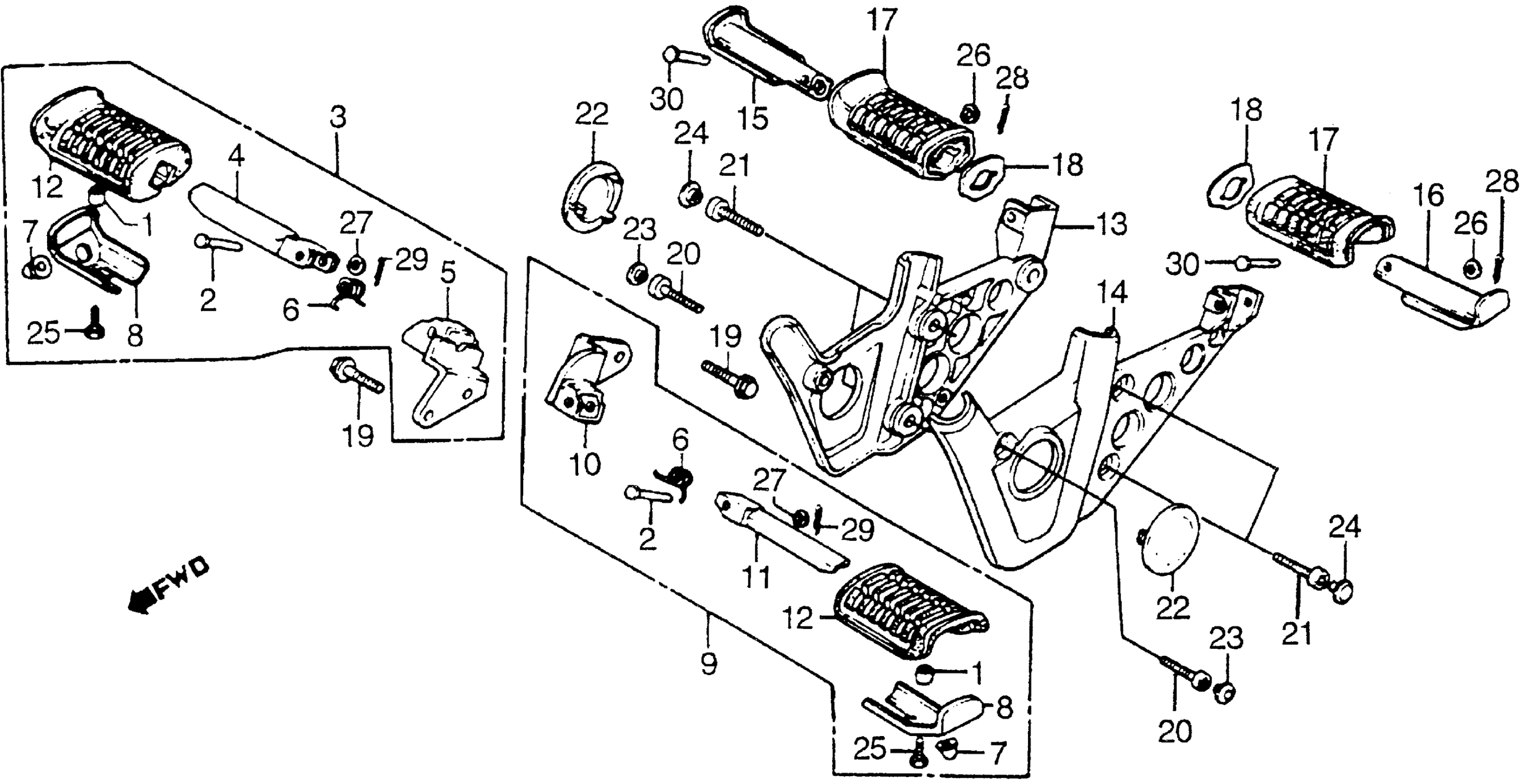

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 FOOTPEGS Diagram

#

Description
Price

1

COLLAR, CHAIN CASE

40515-413-000

$2.92

2

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

2

PIN, STEP BAR JOINT

50603-033-010

$3.30

3

FOOTPEG ASSY., R. MAIN (NOT AVAILABLE)

50610-MG8-000

Unavailable

4

BAR, R. FOOTPEG (NOT AVAILABLE)

50612-MB1-000

Unavailable

5

BRACKET, R. FOOTPEG (NOT AVAILABLE)

50615-MG8-000

Unavailable

6

SPRING, STEP RETURN

50617-MB1-700

$5.80

7

SLIDER, STEP (NOT AVAILABLE)

50618-MB1-000

$4.13

8

STOPPER, STEP RUBBER

50619-MB1-000

Unavailable

9

FOOTPEG ASSY., L. MAIN (NOT AVAILABLE)

50620-MG8-000

Unavailable

10

BRACKET, L. FOOTPEG (NOT AVAILABLE)

50625-MG8-000

Unavailable

11

BAR, L. FOOTPEG

50642-MB1-000

Unavailable

12

RUBBER, MAIN FOOTPEG (NOT AVAILABLE)

50661-ME9-000

Unavailable

13

HOLDER, R. PILLION FOOTPEG (NOT AVAILABLE) This part replaces 50680-MG8-000.

50680-MG8-010

Unavailable

13

HOLDER, R. PILLION FOOTPEG (NOT AVAILABLE)

50680-MG8-010

Unavailable

14

HOLDER, L. PILLION FOOTPEG (NOT AVAILABLE)

50690-MG8-000

Unavailable

15

BAR, R. PILLION STEP

50711-MB1-000

Unavailable

16

BAR, L. PILLION FOOTPEG (NOT AVAILABLE)

50712-MB1-000

Unavailable

17

RUBBER, PILLION STEP

50713-MB1-000

$15.82

18

WASHER, PILLION STEP

50714-MB1-000

Unavailable

19

BOLT, FLANGE (8X18) (NOT AVAILABLE)

90007-ZG0-920

Unavailable

20

BOLT, SOCKET (6X16) (NOT AVAILABLE)

90117-MJ6-000

Unavailable

21

BOLT, SOCKET (8X22)

90157-ME9-000

$5.72

22

CAP, PILLION FOOTPEG HOLDER (NOT AVAILABLE)

90312-MG8-000

Unavailable

23

CAP, SOCKET BOLT (6MM)

91455-MG8-000

Unavailable

24

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$4.15

25

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

PIN, SPLIT (1.6X10)

94201-16100

$1.49

29

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

29

PIN, COTTER (1.6X25)

94201-16250

$1.49

30

PIN C, PILLION STEP

95015-83000

$2.41
