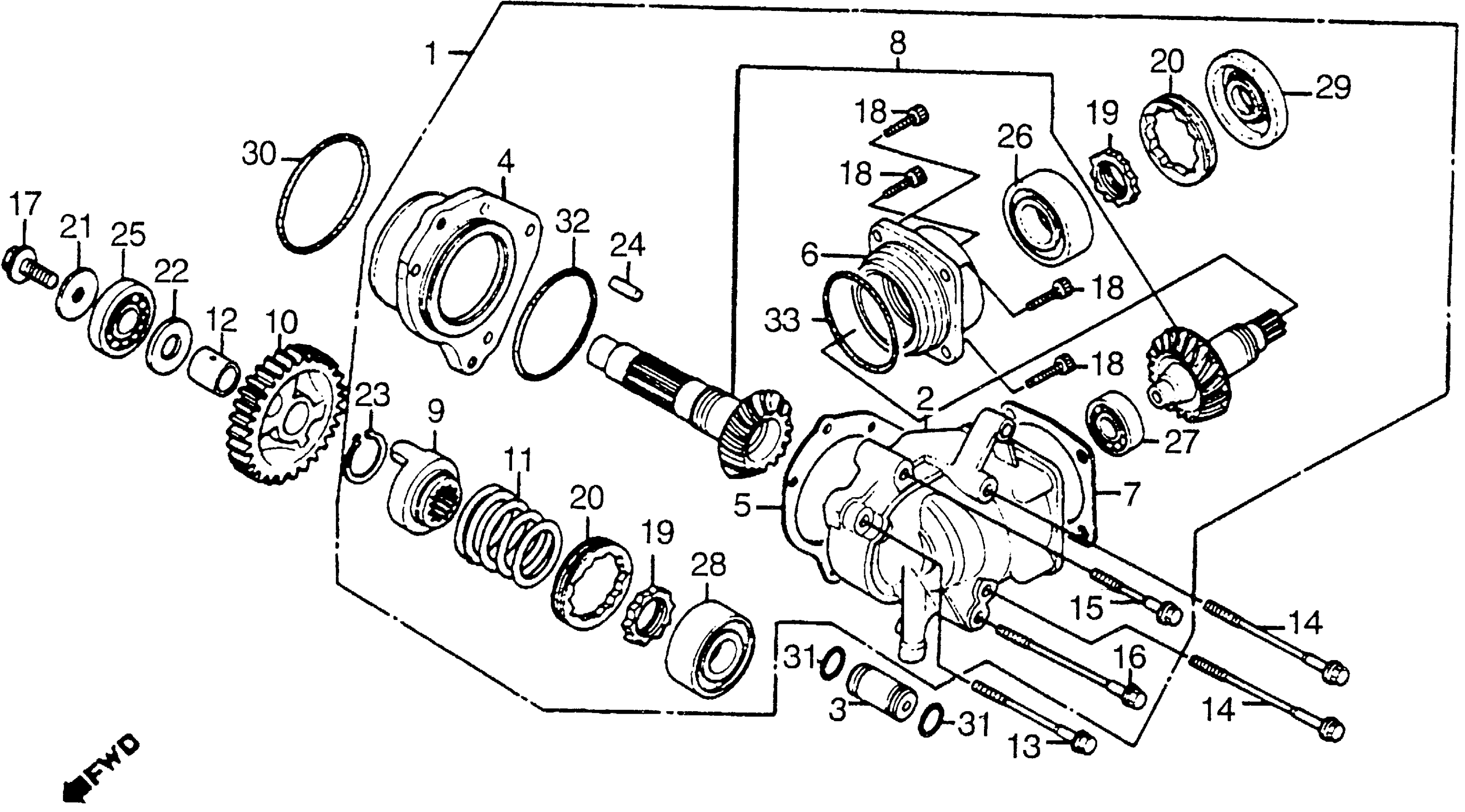

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 CROSS SHAFT Diagram

#

Description
Price

1

CASE ASSY., SIDE GEAR (NOT AVAILABLE)

21100-MG8-000

Unavailable

2

CASE, SIDE GEAR (NOT AVAILABLE)

21200-MG8-000

Unavailable

3

ORIFICE, SIDE GEAR CASE

21215-ME9-000

$8.88

4

HOLDER, FINAL DRIVESHAFT BEARING (NOT AVAILABLE)

21281-MG8-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.40)

21311-MG8-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.45)

21312-MG8-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.50)

21313-MG8-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.55)

21314-MG8-000

Unavailable

5

SHIM, FINAL DRIVESHAFT (0.60)

21315-MG8-000

Unavailable

6

HOLDER, CROSS SHAFT BEARING

21371-MB0-000

Unavailable

7

SHIM, CROSS SHAFT (0.40)

21381-MB0-770

$23.32

7

SHIM, CROSS SHAFT (0.45)

21382-MB0-770

$23.32

7

SHIM, CROSS SHAFT (0.50)

21383-MB0-770

$23.32

7

SHIM, CROSS SHAFT (0.55)

21384-MB0-770

$23.32

7

SHIM, CROSS SHAFT (0.60)

21385-MB0-770

$23.32

8

SHAFT SET, CROSS (NOT AVAILABLE)

23200-MG8-000

Unavailable

9

LIFTER, DAMPER

23721-MG8-000

$53.41

10

GEAR, DAMPER SHAFT (29T)

23726-MG8-000

$130.10

11

SPRING, DAMPER (NOT AVAILABLE)

23732-MG8-000

Unavailable

12

COLLAR (22X25X18.5)

23733-MG8-000

$16.99

13

BOLT, UBS (8X60)

90029-MG8-000

Unavailable

14

BOLT, UBS (8X105)

90030-MG8-000

$7.62

15

BOLT, UBS (8X45)

90031-MG8-000

$3.91

16

BOLT, UBS (8X85)

90032-MG8-000

Unavailable

17

BOLT, SPECIAL (10MM)

90038-ME9-000

$4.57

18

BOLT, SOCKET (8X22)

90061-MB0-000

$5.03

19

NUT, LOCK (30MM)

90241-MB0-000

$19.37

20

NUT, LOCK (64MM)

90242-MB0-000

Unavailable

21

WASHER (10MM)

90404-MG8-000

$8.28

22

WASHER, THRUST (20MM)

90451-426-000

$4.72

23

CIRCLIP (OUTER) (28MM)

90602-463-000

$3.37

24

PIN, DOWEL (10X24)

90701-MG8-000

$4.35

25

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$37.03

26

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$87.99

26

BEARING, RADIAL BALL (5206)

91012-MG7-003

$87.99

27

BEARING, BALL (6303) (KOYO)

91011-MB0-003

$28.31

27

BEARING, BALL (6303) (KOYO) This part replaces 91011-MB0-004.

91011-MB0-003

$28.31

28

BEARING, SPECIAL (30X62X25.8) (TOYO)

91012-MG8-003

$81.15

29

OIL SEAL (25X66X8.5) (ARAI)

91205-MG7-003

$17.23

30

O-RING (69.5X2.25) (ARAI)

91300-MG7-003

Unavailable

31

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000.

91313-MA6-005

$2.41

31

O-RING (4.8X1.9) (NOK)

91313-MA6-005

$2.41

32

O-RING (64.5X3) (ARAI)

91310-MG7-003

Unavailable

33

O-RING (69.5X3) (ARAI)

91314-MG7-003

$8.51
