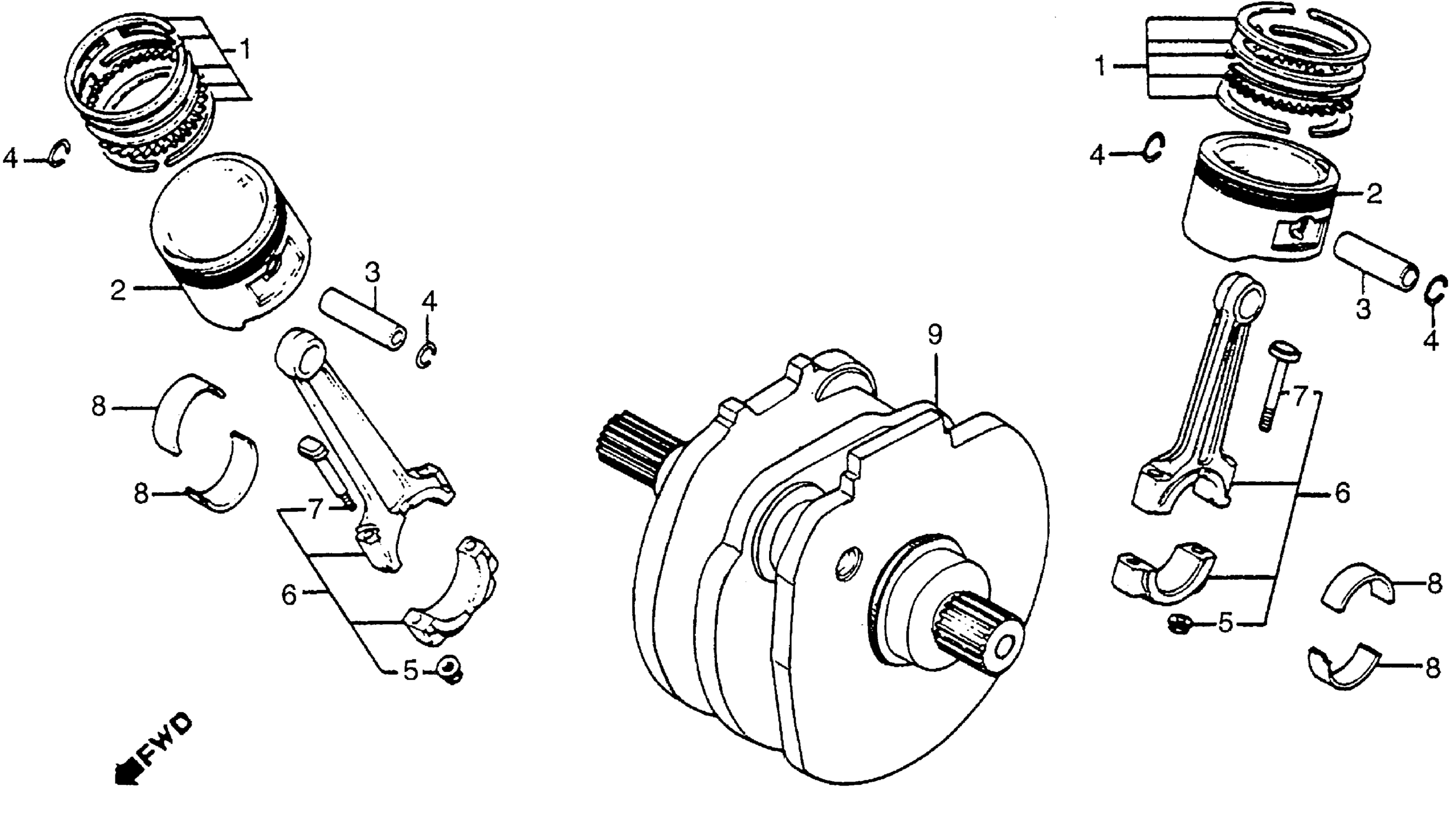

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD) This part replaces 13011-MG8-305.

13011-MG8-315

$74.21

1

RING SET, PISTON (STD)

13011-MG8-315

$74.21

1

RING SET, PISTON (OVER SIZE) (0.25) | (Optional). This part replaces 13012-MG8-305.

13012-MG8-315

$85.62

1

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13012-MG8-315

$85.62

1

RING SET, PISTON (OVER SIZE) (0.50) | (Optional). This part replaces 13013-MG8-305.

13013-MG8-315

Unavailable

1

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13013-MG8-315

Unavailable

2

PISTON (STD) (NOT AVAILABLE)

13101-MG8-000

Unavailable

2

PISTON (OVER SIZE) (0.25) (NOT AVAILABLE) | (Optional).

13102-MG8-305

Unavailable

2

PISTON (OVER SIZE) (0.50) (NOT AVAILABLE) | (Optional).

13103-MG8-305

Unavailable

3

PIN, PISTON

13111-MG8-000

$26.81

4

CLIP, PISTON PIN (22MM)

13112-MC7-000

$2.17

5

NUT, CONNECTING ROD

13205-MG8-000

$3.26

6

ROD ASSY. C, CONNECTING This part replaces 13206-MG8-000.

13208-MG8-000

$222.99

6

ROD ASSY. C, CONNECTING This part replaces 13207-MG8-000.

13208-MG8-000

$222.99

6

ROD ASSY. C, CONNECTING

13208-MG8-000

$222.99

6

ROD ASSY. C, CONNECTING This part replaces 13209-MG8-000.

13208-MG8-000

$222.99

6

ROD ASSY. C, CONNECTING This part replaces 13210-MG8-000.

13208-MG8-000

$222.99

7

BOLT, CONNECTING ROD

13213-MG8-000

$7.65

8

BEARING A, CONNECTING ROD (GREEN)

13218-MG8-003

$12.67

8

BEARING B, CONNECTING ROD (YELLOW)

13219-MG8-003

$13.74

8

BEARING C, CONNECTING ROD (PINK)

13220-MG8-003

$13.74

9

CRANKSHAFT (NOT AVAILABLE)

13300-MG8-000

Unavailable
