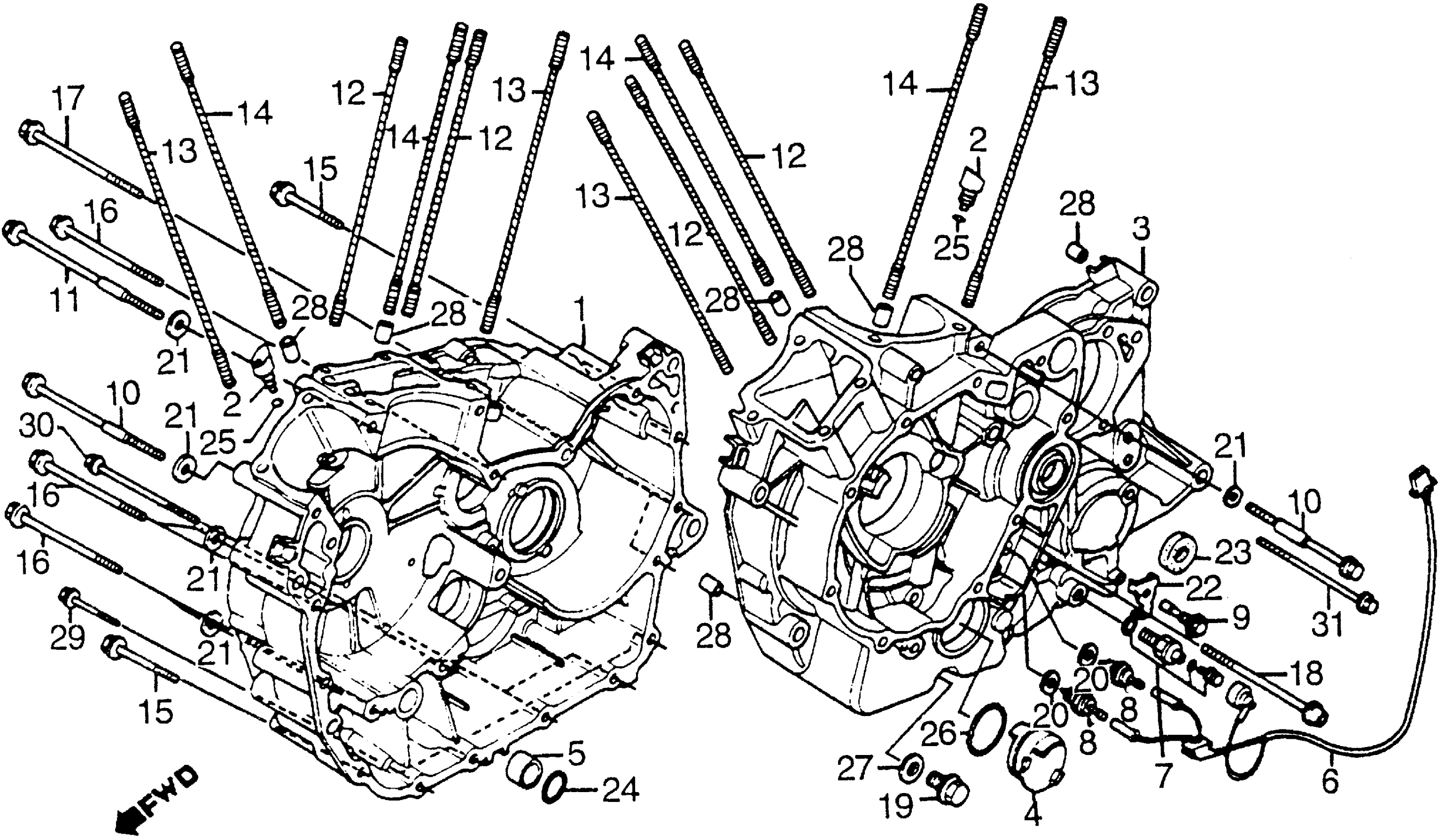

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE) | Use up to Engine SN 2106849

11100-MG8-770

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN 2106850

11100-MG8-771

Unavailable

2

JET, OIL

11146-MG8-000

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE)

11200-MG8-000

Unavailable

4

PLUG, L. CRANKCASE This part replaces 11211-ME9-010.

11211-MK7-770

$29.02

4

PLUG, L. CRANKCASE

11211-MK7-770

$29.02

5

COLLAR, O-RING

15155-300-000

$3.47

6

SUB-HARNESS A (NOT AVAILABLE)

32101-MG8-000

Unavailable

7

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

7

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

8

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-KE8-000.

35600-KE8-003

$18.90

8

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$18.90

8

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-KE8-010.

35600-KE8-003

$18.90

9

BOLT, ORIFICE (1.6MM)

90002-MG8-000

$18.00

10

BOLT, FLANGE (8X125)

90005-MG8-000

$5.71

11

BOLT, FLANGE (8X136)

90006-MG8-000

$7.03

12

BOLT, STUD (8X267)

90011-MG8-003

Unavailable

13

BOLT, STUD (10X269)

90012-MG8-003

Unavailable

14

BOLT, STUD (10X257)

90013-MG8-003

Unavailable

15

BOLT, FLANGE (8X45)

90052-MG8-000

$4.59

16

BOLT, FLANGE (8X80)

90053-MG8-000

$5.70

17

BOLT, FLANGE (8X100)

90054-MG8-000

$7.02

18

BOLT, FLANGE SOCKET (8X110)

90055-MG8-000

Unavailable

19

BOLT, PLUG

90081-MC7-000

$10.96

20

WASHER, NEUTRAL SWITCH

90405-MG8-000

Unavailable

21

WASHER, SEALING (8MM)

90441-MG8-000

$2.28

22

PLATE, SEALING (6MM)

90444-MG8-000

$4.89

23

OIL SEAL (8X25X7) (ARAI)

91204-MG8-003

$4.33

24

O-RING (13.8X2.5)

91303-MG7-003

$3.12

24

O-RING (13.8X2.5)

91303-377-000

$3.42

24

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

25

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.92

25

O-RING (5X1.7) (ARAI) This part replaces 91305-333-000.

91305-MG7-003

$2.92

26

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

27

WASHER, DRAIN PLUG (14MM)

94109-14000

$1.49

28

PIN, DOWEL (14X20)

94301-14200

$2.28

29

BOLT, FLANGE (6X50) This part replaces 95700-06050-07.

95701-06050-07

$1.49

29

BOLT, FLANGE (6X50)

95701-06050-07

$1.49

30

BOLT, FLANGE (6X90) This part replaces 95700-06090-07.

95701-06090-07

$2.39

30

BOLT, FLANGE (6X90)

95701-06090-07

$2.39

31

BOLT, FLANGE (6X100) This part replaces 96000-06100-00.

96001-06100-00

$1.95

31

BOLT, FLANGE (6X100)

96001-06100-00

$1.95
