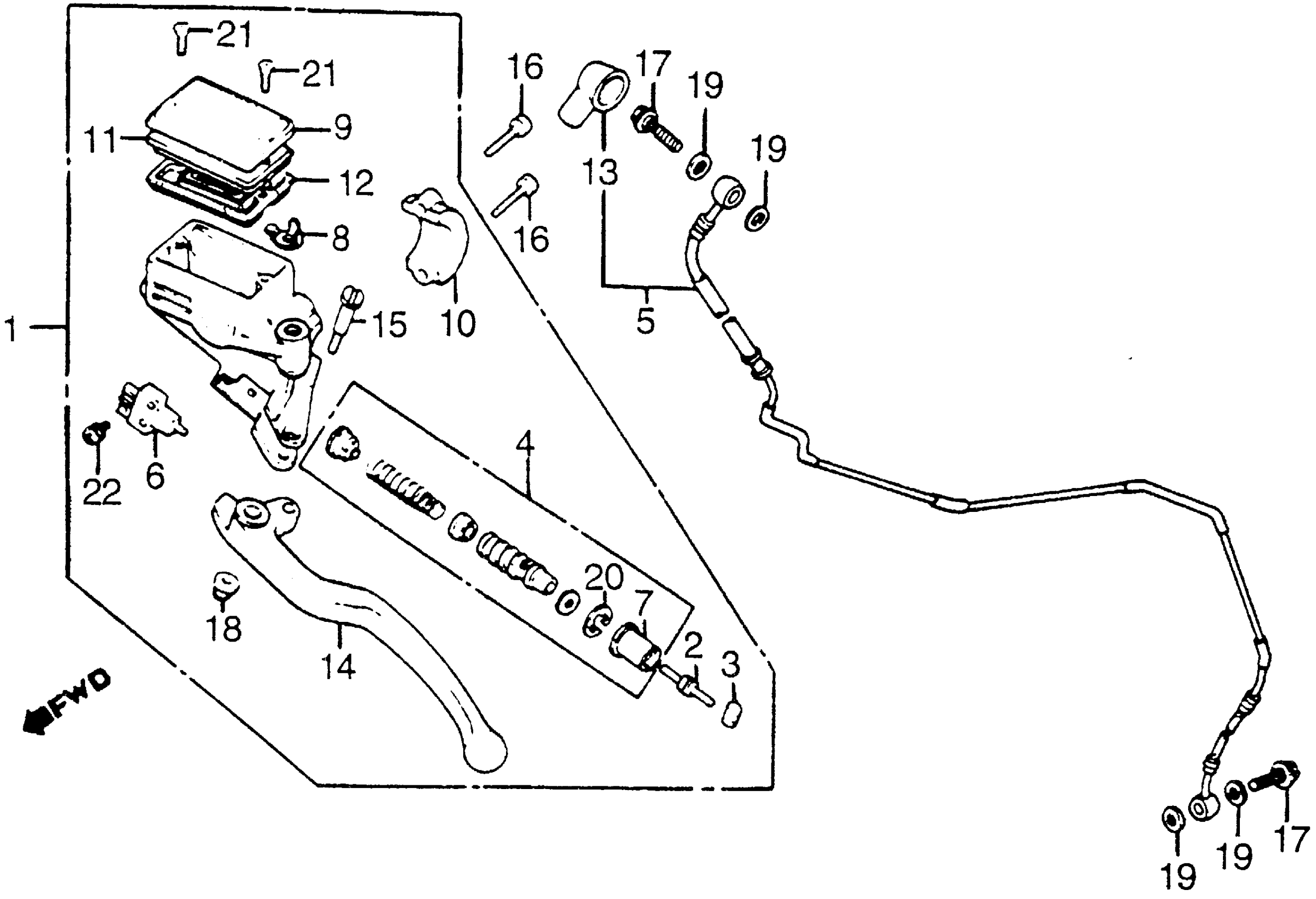

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY., CLUTCH (NOT AVAILABLE)

22880-MG8-671

Unavailable

2

ROD, PUSH

22884-MB0-006

$18.97

3

BUSH

22885-MB0-006

$11.88

4

PISTON SET, CLUTCH MASTER CYLINDER

22886-MG8-671

Unavailable

5

PIPE, CLUTCH (NOT AVAILABLE)

22900-MG8-010

Unavailable

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.71

7

BOOT

45504-410-003

$11.17

8

PROTECTOR

45512-MA6-006

$4.09

9

CAP, MASTER CYLINDER (NOT AVAILABLE)

45540-MB4-671

Unavailable

10

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-MB0-006

Unavailable

11

PLATE, DIAPHRAGM

45518-MB4-671

$11.13

12

DIAPHRAGM

45520-MA5-672

$16.64

13

BOOT, MASTER CYLINDER

45522-422-000

$7.99

14

LEVER, L. HANDLE

53178-KE8-006

$22.74

15

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

16

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

17

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$10.11

17

BOLT, OIL (10X22) (SAGA)

90145-KM3-751

$10.11

18

NUT, CAP (6MM)

90201-415-000

$1.99

19

WASHER, OIL BOLT

90545-300-000

$6.56

20

CIRCLIP (INNER) (18MM)

90651-377-003

$1.79

21

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

21

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

22

SCREW-WASHER (4X12)

93893-04012-07

$1.24

22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24
