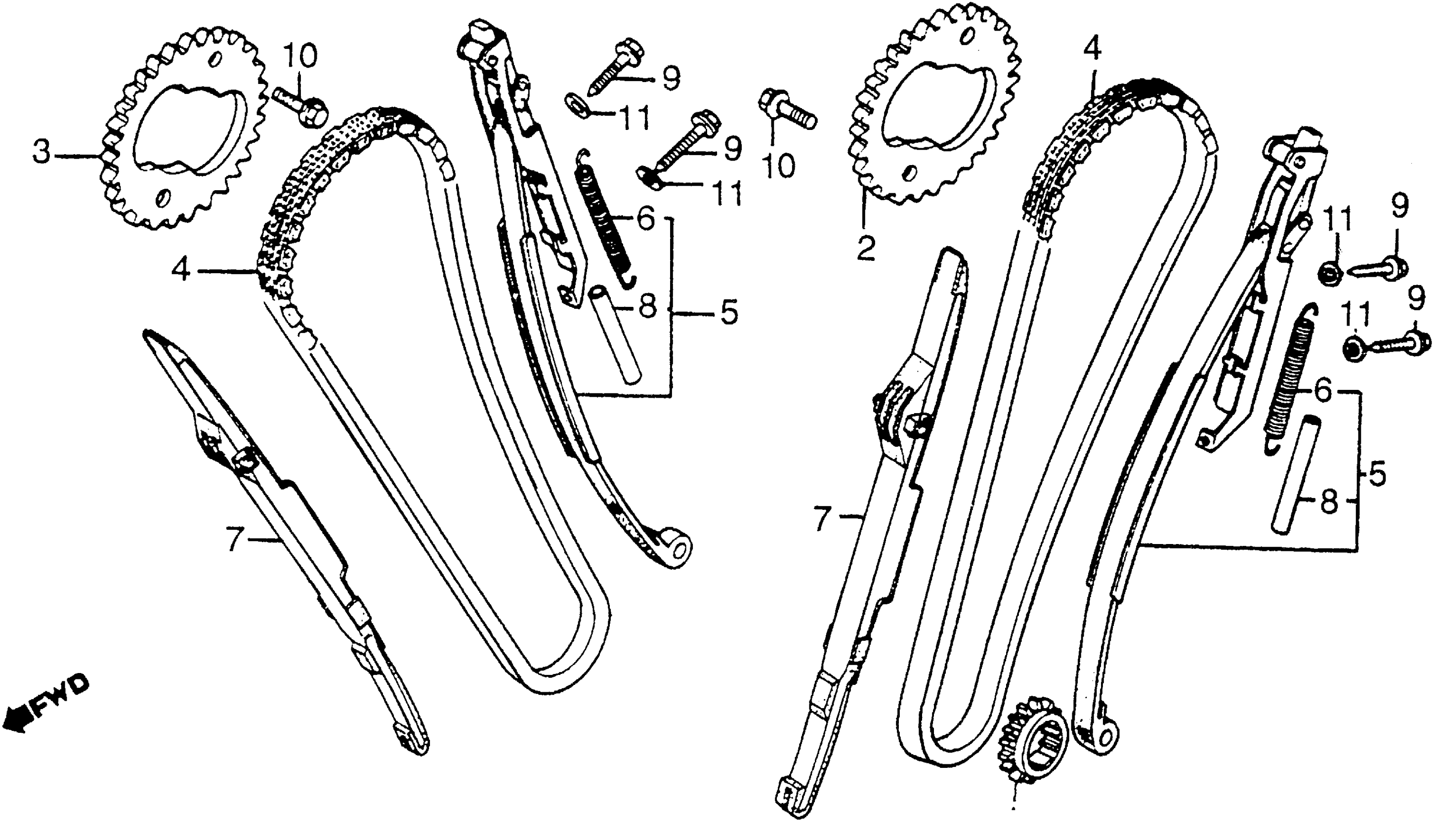

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 CAM CHAIN + TENSIONER Diagram

#

Description

Price

1

SPROCKET, CAM CHAIN DRIVE (21T)

14311-MG8-000

Unavailable

2

SPROCKET, RR. CAM CHAIN (NOT AVAILABLE)

14320-MG8-000

Unavailable

3

SPROCKET, CAM (42T)

14322-ME9-000

Unavailable

4

CHAIN, CAM (136L) (TSUBAKIMOTO)

14401-MG8-003

$199.46

5

TENSIONER, CAM CHAIN (NOT AVAILABLE) This part replaces 14510-MG8-000.

14510-MG8-010

Unavailable

5

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14510-MG8-010

Unavailable

6

SPRING, CAM CHAIN TENSIONER (NIPPON HATSUJO)

14516-MG8-003

$4.78

7

GUIDE, CAM CHAIN

14522-MG8-000

Unavailable

8

TUBE, TENSIONER SPRING This part replaces 14545-MG7-000.

14545-MG7-010

$11.28

8

TUBE, TENSIONER SPRING

14545-MG7-010

$11.28

9

BOLT, FLANGE (6X24)

90001-MEM-670

$1.80

9

BOLT, FLANGE (6X24) This part replaces 90016-MG8-000.

90001-MEM-670

$1.80

10

BOLT, UBS (7X15) This part replaces 90026-ME9-000.

90026-MM8-000

$2.92

10

BOLT, UBS (7X15)

90026-MM8-000

$2.92

11

WASHER, SEALING (6MM)

90441-706-000

$1.49
