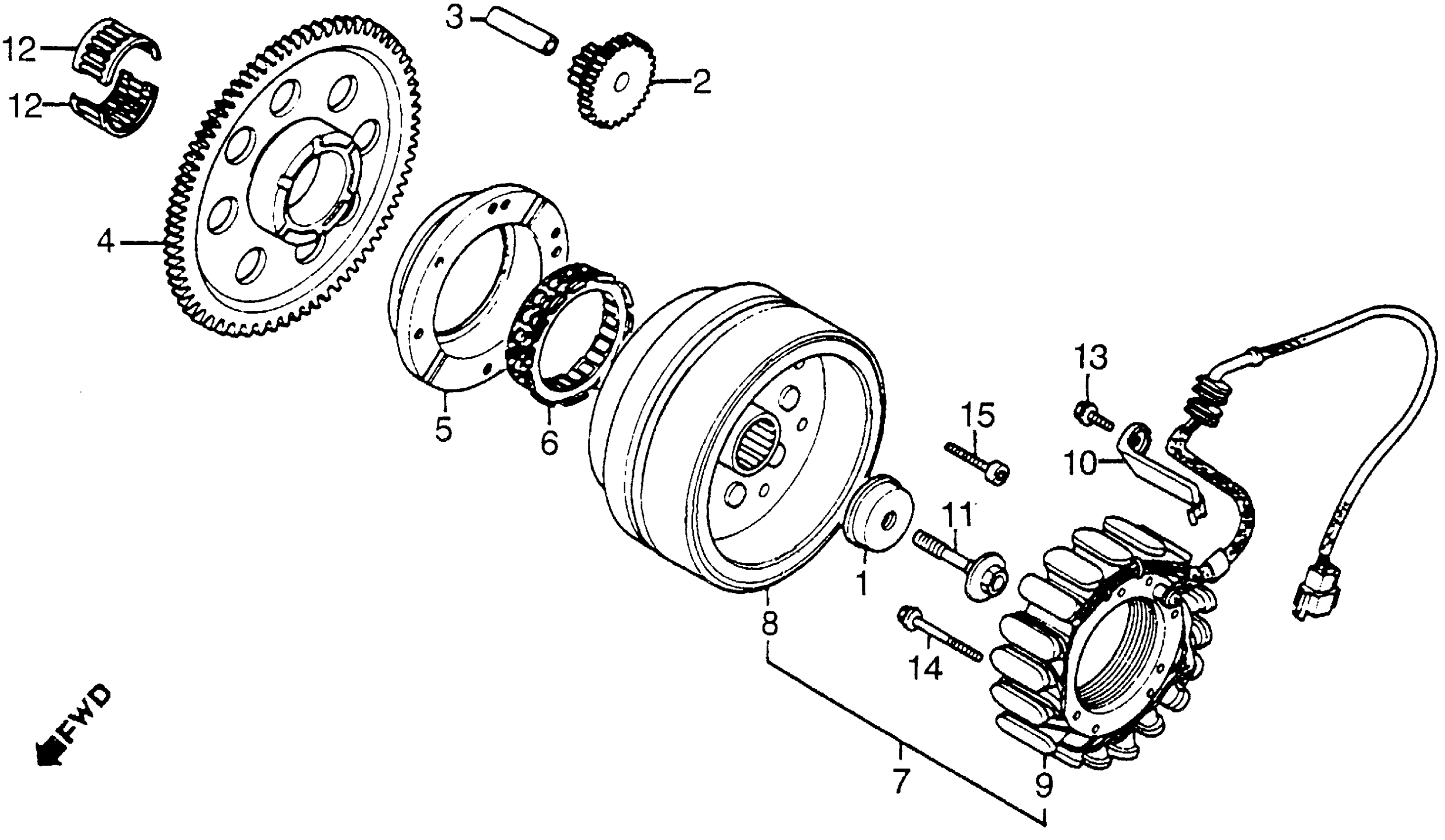

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 ALTERNATOR Diagram

#

Description
Price

1

CUP, TAPER (NOT AVAILABLE)

13330-MG8-000

Unavailable

2

GEAR, STARTER REDUCTION (50T)

28101-MG8-000

Unavailable

3

PIN (12X44)

28102-MG8-000

Unavailable

4

GEAR, STARTING DRIVEN (NOT AVAILABLE)

28110-MG8-000

Unavailable

5

CLUTCH, STARTER (OUTER) (NOT AVAILABLE)

28120-MG8-000

Unavailable

6

CLUTCH, STARTER ONE-WAY (NOT AVAILABLE)

28125-ME9-013

Unavailable

7

ALTERNATOR ASSY. (HITACHI) (NOT AVAILABLE)

31100-MG8-005

Unavailable

8

ROTOR (HITACHI) (NOT AVAILABLE)

31110-MG8-005

Unavailable

9

STATOR (HITACHI) (NOT AVAILABLE)

31120-MG8-005

Unavailable

10

CLAMP, ALTERNATOR WIRE This part replaces 32961-MG8-000.

32961-MG8-010

Unavailable

10

CLAMP, ALTERNATOR WIRE (NOT AVAILABLE)

32961-MG8-010

Unavailable

11

BOLT, FLANGE (12X68) (NOT AVAILABLE)

90023-MG8-000

Unavailable

12

BEARING, NEEDLE (32X38X27) (NOT AVAILABLE)

91013-MG8-003

Unavailable

13

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

13

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

14

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

14

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

15

BOLT, SOCKET (8X20)

96700-08020-00

$1.80

15

BOLT, SOCKET (8X20) This part replaces 96700-08020-10.

96700-08020-00

$1.80
