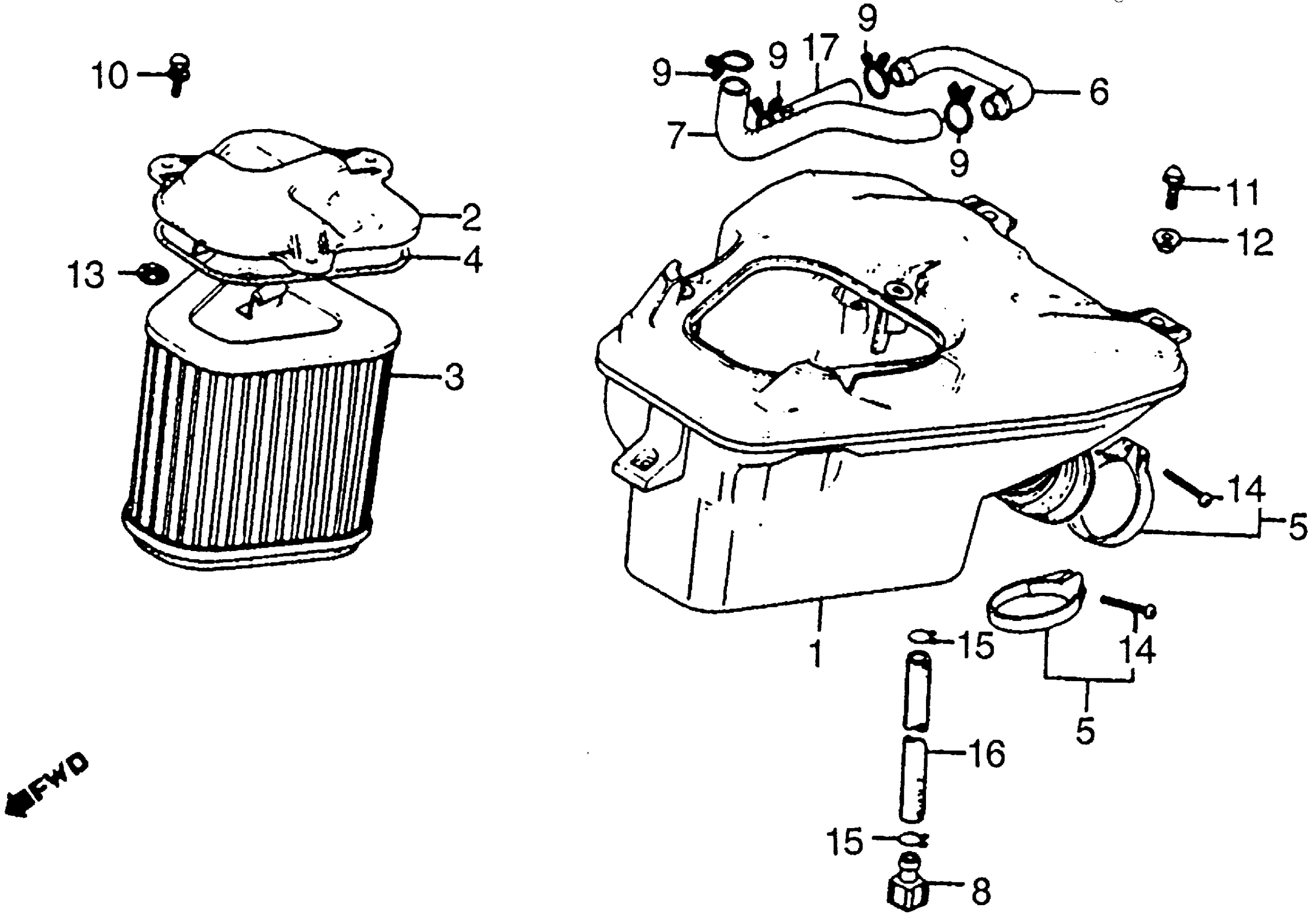

Honda VT1100CA (86) SHADOW 1100, USA, VIN# 1HFSC180-GA100101 AIR CLEANER Diagram

#

Description
Price

1

HOUSING, AIR CLEANER (NOT AVAILABLE) | Use up to Frame SN GA103801 This part replaces 17201-MG8-770.

17201-MG8-772

Unavailable

1

HOUSING, AIR CLEANER (NOT AVAILABLE) | Use from Frame SN GA103802 This part replaces 17201-MG8-771.

17201-MG8-772

Unavailable

1

HOUSING, AIR CLEANER (NOT AVAILABLE) | Use from Frame SN GA103802

17201-MG8-772

Unavailable

2

COVER, AIR CLEANER HOUSING (NOT AVAILABLE)

17212-MG8-000

Unavailable

3

ELEMENT, AIR CLEANER

17215-MG8-771

Unavailable

3

ELEMENT, AIR CLEANER This part replaces 17215-MG8-770.

17215-MG8-771

Unavailable

4

GASKET, AIR CLEANER HOUSING COVER

17217-MG8-300

$7.87

5

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17254-MG8-000.

95018-60250

$6.25

5

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

5

BAND, AIR CLEANER CONNECTING TUBE (60)

95018-60250

$6.25

6

JOINT, BREATHER (NOT AVAILABLE)

17256-MG8-000

Unavailable

7

TUBE, BREATHER (NOT AVAILABLE) This part replaces 17257-MG8-000.

17257-MG8-010

Unavailable

7

TUBE, BREATHER (NOT AVAILABLE)

17257-MG8-010

Unavailable

8

PLUG, BREATHER TUBE

17370-419-700

$3.74

9

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

10

BOLT-WASHER (5X25)

90091-PE2-000

$5.74

11

BOLT, HEX. CAP (6X16) (NOT AVAILABLE)

90103-GK4-710

Unavailable

12

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

13

RING, STOP (NOT AVAILABLE)

90651-MG8-000

Unavailable

14

SCREW, PAN (5X25)

93500-05025-0A

$1.49

15

CLIP, TUBE (B12)

95002-02120

$2.00

16

BULK HOSE, VINYL (7X11X8000) (7X11X230)

95003-19008-60M

Unavailable

17

BULK HOSE, VACUUM (14X3000) (14X45)

95005-14003-20M

Unavailable
