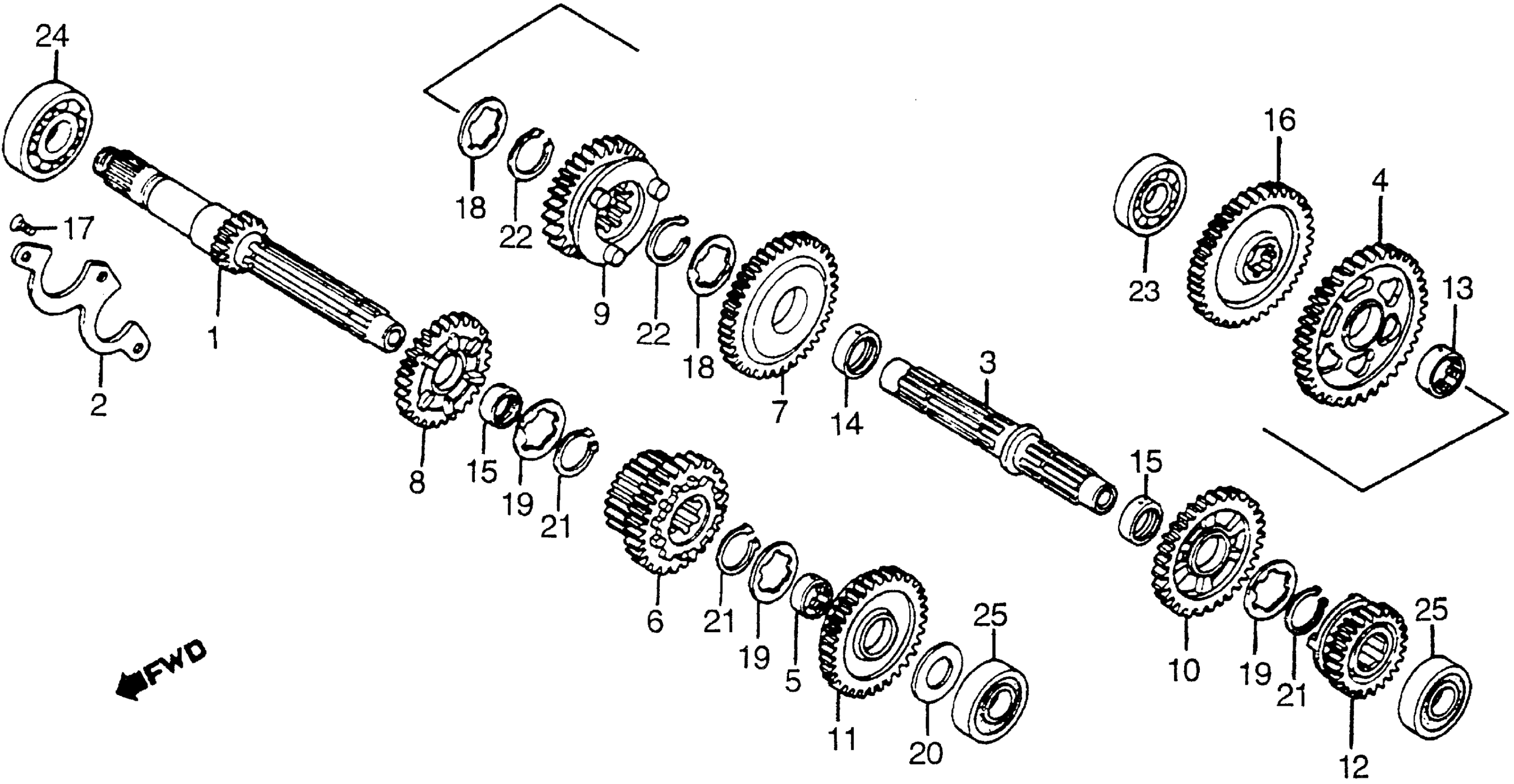

Honda VT1100CA (85) SHADOW 1100, USA, VIN# 1HFSC180-FA002276 TO 1HFSC180-FA006775 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (15T) (NOT AVAILABLE) This part replaces 23211-MG8-000.

23211-MG8-010

Unavailable

1

MAINSHAFT, TRANSMISSION (15T) (NOT AVAILABLE)

23211-MG8-010

Unavailable

2

PLATE, BEARING SETTING (NOT AVAILABLE) | Use up to Engine SN 2106849

23212-ME9-000

Unavailable

3

COUNTERSHAFT (NOT AVAILABLE)

23220-MG8-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (39T) (NOT AVAILABLE)

23421-MG8-000

Unavailable

5

COLLAR, SPLINE (28X31X7) (NOT AVAILABLE)

23422-MG8-000

Unavailable

6

GEAR, MAINSHAFT SECOND & FOURTH (21T&28T) (NOT AVAILABLE)

23431-MG8-010

Unavailable

7

GEAR, COUNTERSHAFT SECOND (34T) (NOT AVAILABLE)

23441-MG8-000

Unavailable

8

GEAR, MAINSHAFT THIRD (24T) (NOT AVAILABLE)

23451-MG8-010

Unavailable

9

GEAR, COUNTERSHAFT THIRD (29T) (NOT AVAILABLE)

23461-MG8-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (26T) (NOT AVAILABLE)

23481-MG8-000

Unavailable

11

GEAR, MAINSHAFT TOP (31T) (NOT AVAILABLE)

23491-MG8-000

Unavailable

12

GEAR, COUNTERSHAFT TOP (25T) (NOT AVAILABLE)

23501-MG8-000

Unavailable

13

COLLAR, SPLINE (30X33X11.3) (NOT AVAILABLE)

23512-MG8-000

Unavailable

14

BUSH (30X33X11.3) (NOT AVAILABLE)

23513-MG8-000

Unavailable

15

BUSH (28X31X11.3) (NOT AVAILABLE)

23514-MG8-000

Unavailable

16

GEAR, FINAL DRIVE (36T) (NOT AVAILABLE)

23725-MG8-000

Unavailable

17

SCREW, FLAT (6X16)

90022-ME9-000

$2.30

18

WASHER, THRUST (30MM)

90451-MG8-000

Unavailable

19

WASHER, THRUST (28MM)

90451-422-000

$8.36

20

WASHER, THRUST (20MM)

90454-751-000

$5.26

20

WASHER, THRUST (20MM) This part replaces 90469-081-010.

90454-751-000

$5.26

21

CIRCLIP (28MM)

90601-422-000

$2.98

22

CIRCLIP (30MM)

90604-MG8-000

$3.43

23

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$40.08

24

BEARING, RADIAL BALL (305/28) (TOYO)

91004-MG8-003

Unavailable

25

BEARING, SEALED BALL (20X52X15) (TOYO)

91005-MG8-003

Unavailable
