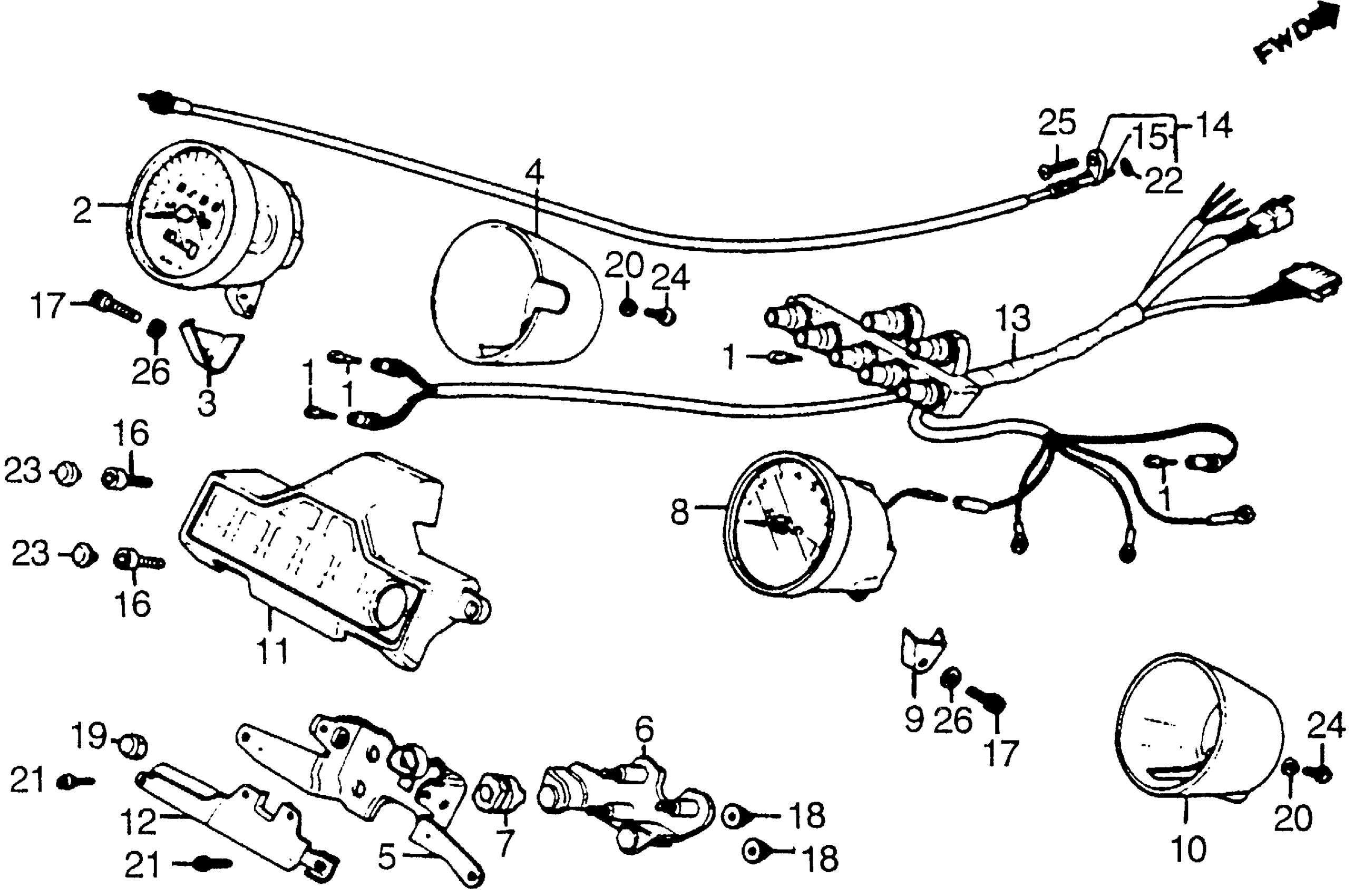

Honda VT1100CA (85) SHADOW 1100, USA, VIN# 1HFSC180-FA002276 TO 1HFSC180-FA006775 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

2

SPEEDOMETER ASSY. (MPH/KMH) (DENSO) (NOT AVAILABLE) This part replaces 37200-MG8-671.

37200-MG8-672

Unavailable

2

SPEEDOMETER ASSY. (MPH/KMH) (DENSO) (NOT AVAILABLE)

37200-MG8-672

Unavailable

3

COVER, SPEEDOMETER STAY (NOT AVAILABLE)

37203-ME9-009

Unavailable

4

CASE, SPEEDOMETER (LOWER) This part replaces 37204-ME9-009.

37204-MK7-009

Unavailable

5

BRACKET A, INSTRUMENT (NOT AVAILABLE)

37212-MG8-009

Unavailable

6

BRACKET, INSTRUMENT (B) (NOT AVAILABLE)

37213-MG8-009

Unavailable

7

RUBBER, SPEEDOMETER MOUNTING

37242-435-700

$5.90

8

TACHOMETER ASSY. This part replaces 37250-MG8-009.

37250-MG8-741

Unavailable

8

TACHOMETER ASSY. This part replaces 37250-MG8-019.

37250-MG8-741

Unavailable

9

COVER, TACHOMETER STAY (NOT AVAILABLE)

37253-ME9-009

Unavailable

10

CASE, TACHOMETER (LOWER) This part replaces 37254-ME9-009.

37254-MK7-009

Unavailable

11

CASE ASSY., PILOT (NOT AVAILABLE)

37601-MG8-671

Unavailable

12

PLATE, SOCKET SETTING (NOT AVAILABLE)

37617-MG8-009

Unavailable

13

SOCKET, INSTRUMENT (NOT AVAILABLE)

37619-MG8-671

Unavailable

14

CABLE ASSY., SPEEDOMETER

44830-MJ1-000

Unavailable

15

CABLE (INNER) (NOT AVAILABLE)

44831-MJ1-300

Unavailable

16

BOLT, SOCKET (6X8) (NOT AVAILABLE)

90102-MG8-000

Unavailable

17

BOLT, SOCKET (6X20)

90116-460-000

Unavailable

18

NUT, CAP

90201-428-900

$2.23

19

NUT, HEX. (6MM) (NOT AVAILABLE)

90207-MG8-000

Unavailable

20

WASHER, WAVE (NOT AVAILABLE)

90401-ME9-009

Unavailable

21

SCREW-WASHER (3X4) (NOT AVAILABLE)

91060-MG8-000

Unavailable

22

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

22

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

22

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

23

CAP, SOCKET BOLT (8MM)

91456-MJ1-830

Unavailable

24

SCREW, PAN (4X10)

93500-04010-1B

Unavailable

25

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

26

WASHER, SPRING (6MM)

94111-06700

$1.49
