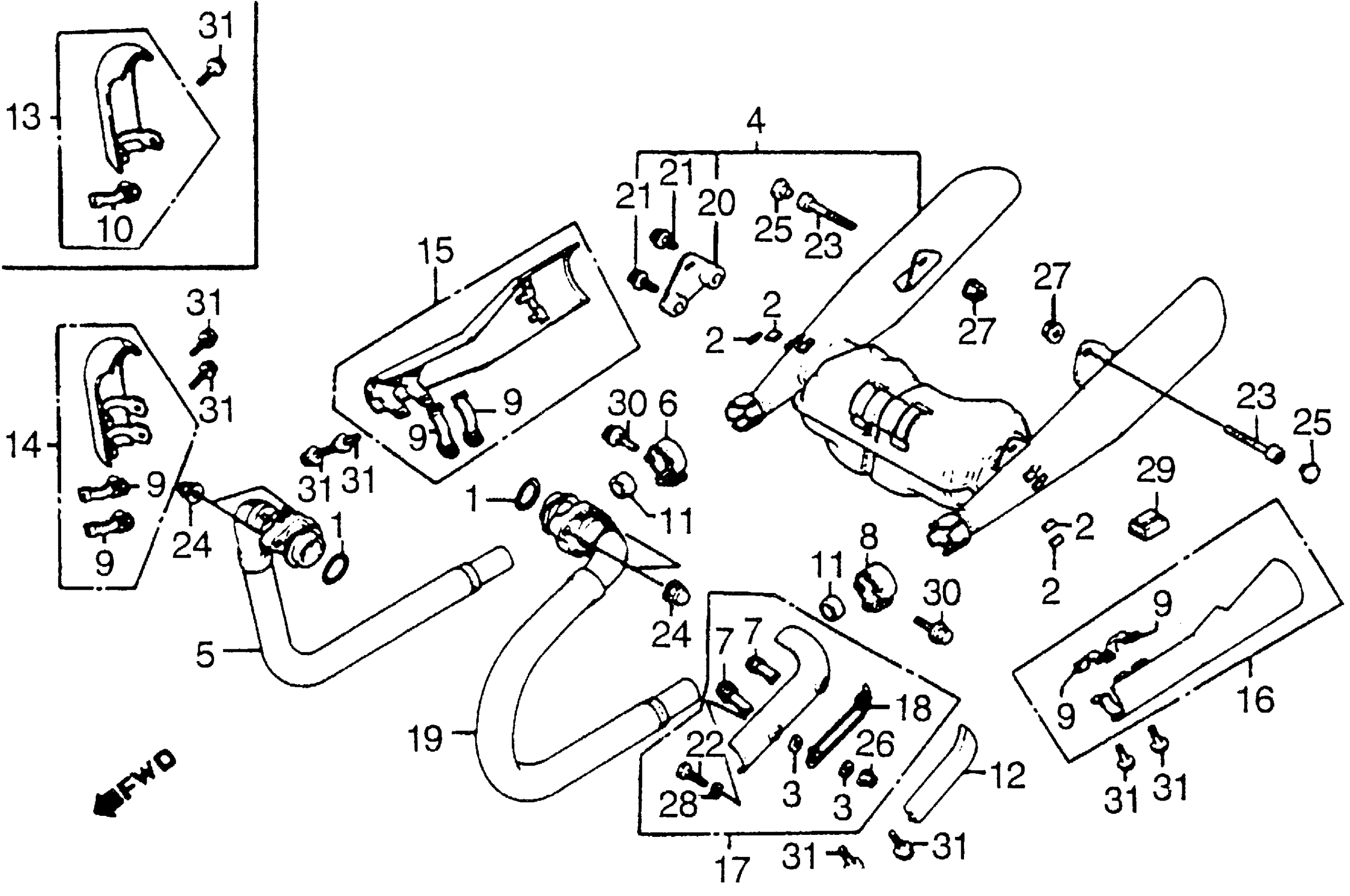

Honda VT1100CA (85) SHADOW 1100, USA, VIN# 1HFSC180-FA002276 TO 1HFSC180-FA006775 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18291-ME9-000.

18291-MM8-880

$7.16

1

GASKET, EX. PIPE This part replaces 18291-ME9-306.

18291-MM8-880

$7.16

1

GASKET, EX. PIPE

18291-MM8-880

$7.16

2

RUBBER, PROTECTOR GASKET

18293-ME9-000

$3.02

3

GASKET, PROTECTOR

18293-MCA-780

$4.85

3

GASKET, PROTECTOR This part replaces 18293-MN5-650.

18293-MCA-780

$4.85

3

GASKET, PROTECTOR This part replaces 18293-422-000.

18293-MCA-780

$4.85

4

MUFFLER, CHAMBER (NOT AVAILABLE) This part replaces 18300-MG8-671.

18300-MG8-771

Unavailable

5

PIPE, R. EX. (NOT AVAILABLE)

18320-MG8-003

Unavailable

6

BAND, R. MUFFLER

18376-MB4-003

$41.21

6

BAND, R. MUFFLER This part replaces 18376-ME9-003.

18376-MB4-003

$41.21

7

BAND B, PROTECTOR (NOT AVAILABLE)

18376-MG8-003

Unavailable

8

BAND, L. MUFFLER

18377-MB4-003

$41.16

8

BAND, L. MUFFLER This part replaces 18377-ME9-003.

18377-MB4-003

$41.16

9

BAND D, PROTECTOR (NOT AVAILABLE)

18377-MG8-003

Unavailable

10

BAND E, PROTECTOR (NOT AVAILABLE)

18378-MG8-003

Unavailable

11

GASKET, RR. MUFFLER

18392-MJ4-670

$16.06

11

GASKET, RR. MUFFLER This part replaces 18392-449-000.

18392-MJ4-670

$16.06

12

PROTECTOR, EX.

18413-MG8-000

Unavailable

13

PROTECTOR, R. EX. (NOT AVAILABLE) This part replaces 18415-MG8-003.

18415-MG8-770

Unavailable

13

PROTECTOR, R. EX. (NOT AVAILABLE)

18415-MG8-770

Unavailable

15

PROTECTOR, R. RR. EX. (NOT AVAILABLE)

18416-MG8-003

Unavailable

16

PROTECTOR, L. RR. EX. (NOT AVAILABLE)

18417-MG8-003

Unavailable

17

PROTECTOR, L. EX. (NOT AVAILABLE)

18418-MG8-003

Unavailable

18

PROTECTOR D

18419-MG8-003

Unavailable

19

PIPE, L. EX. (NOT AVAILABLE)

18420-MG8-003

Unavailable

20

BRACKET, R. CHAMBER (NOT AVAILABLE)

18455-MG8-013

Unavailable

21

BOLT, FLANGE (6X20) (NOT AVAILABLE)

90003-MB2-000

Unavailable

21

BOLT, FLANGE (6X20) This part replaces 90003-MC7-000.

90003-MB2-000

Unavailable

22

BOLT, HEX. (6X12) (NOT AVAILABLE)

90003-836-000

Unavailable

23

BOLT, SOCKET (8X22)

90157-ME9-000

$5.72

24

NUT, CAP (8MM)

90304-ME1-670

$5.94

25

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$4.15

26

NUT, FLANGE (6MM)

94050-06080

$1.49

27

NUT, FLANGE (8MM)

94050-08080

$1.49

28

WASHER, SPRING (6MM)

94111-06800

$1.49

29

RUBBER A, STAND STOPPER

95011-61000

$1.49

30

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.30

30

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

31

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

31

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
