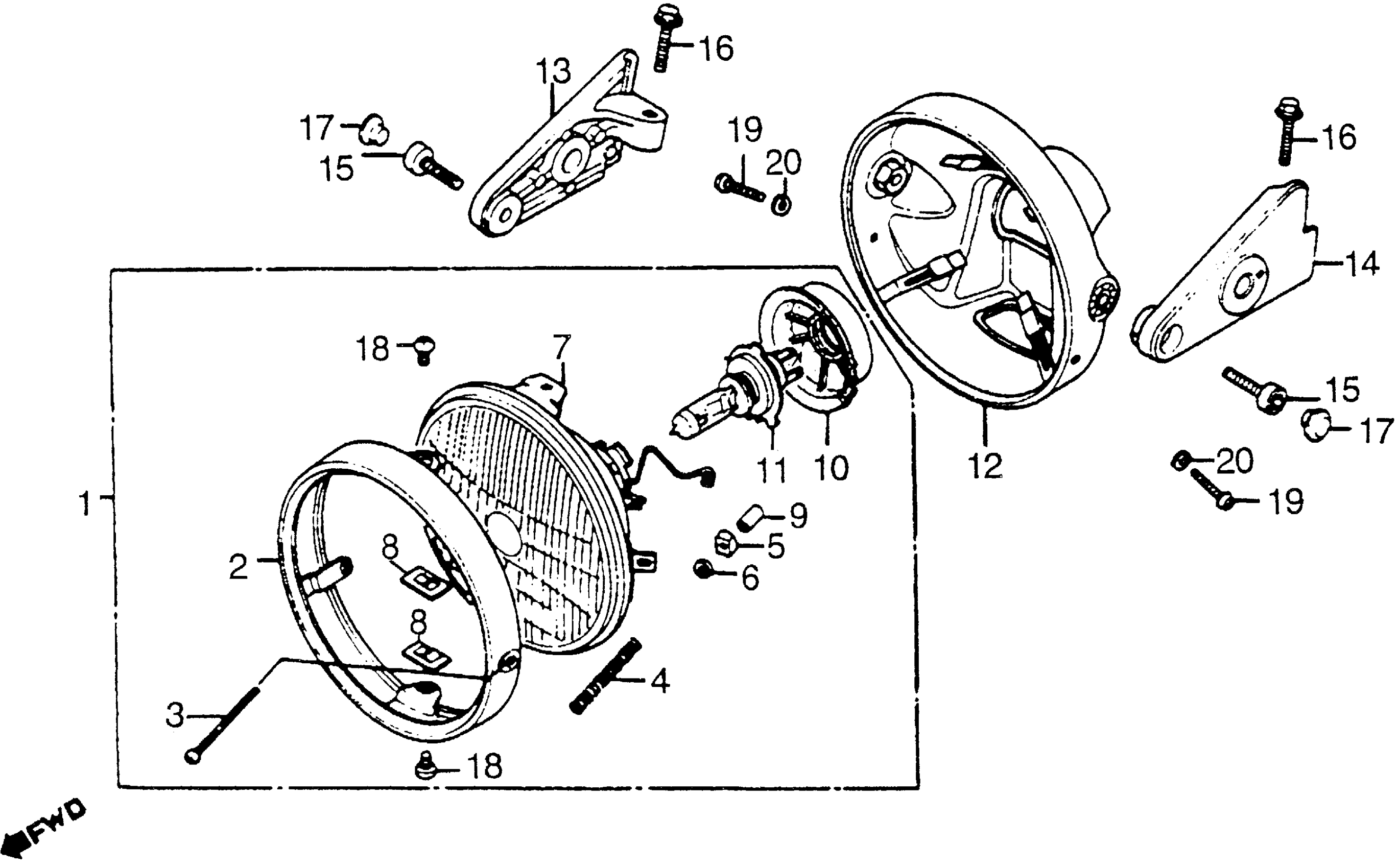

Honda VT1100CA (85) SHADOW 1100, USA, VIN# 1HFSC180-FA002276 TO 1HFSC180-FA006775 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 60/55W) This part replaces 33100-MF5-751.

33100-MF5-840

Unavailable

1

HEADLIGHT ASSY. (12V 60/55W)

33100-MF5-840

Unavailable

2

RIM, HEADLIGHT

33101-MB1-003

Unavailable

3

SCREW, BEAM ADJUSTING

33103-MW3-610

$7.90

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

NUT, BEAM ADJUSTING (STANLEY)

33117-415-003

$2.23

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

7

HEADLIGHT UNIT

33120-MF5-751

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

TUBE, SCREW (NOT AVAILABLE)

33136-MB2-000

Unavailable

10

COVER, RUBBER

33180-422-003

Unavailable

11

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

11

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

12

CASE, HEADLIGHT (NOT AVAILABLE)

61301-MG8-000

Unavailable

13

STAY, R. HEADLIGHT (NOT AVAILABLE)

61312-MG8-000

Unavailable

14

STAY, L. HEADLIGHT

61313-MG8-000

Unavailable

15

BOLT, SOCKET (8X16)

90111-MB0-820

Unavailable

16

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.85

17

CAP, SOCKET BOLT (8MM)

91456-MJ1-830

Unavailable

18

SCREW, PAN (5X8)

93500-05008-0H

$1.49

19

SCREW, PAN (5X12)

93500-05012-0B

$1.49

20

WASHER, SPRING (5MM)

94111-05000

$1.49
