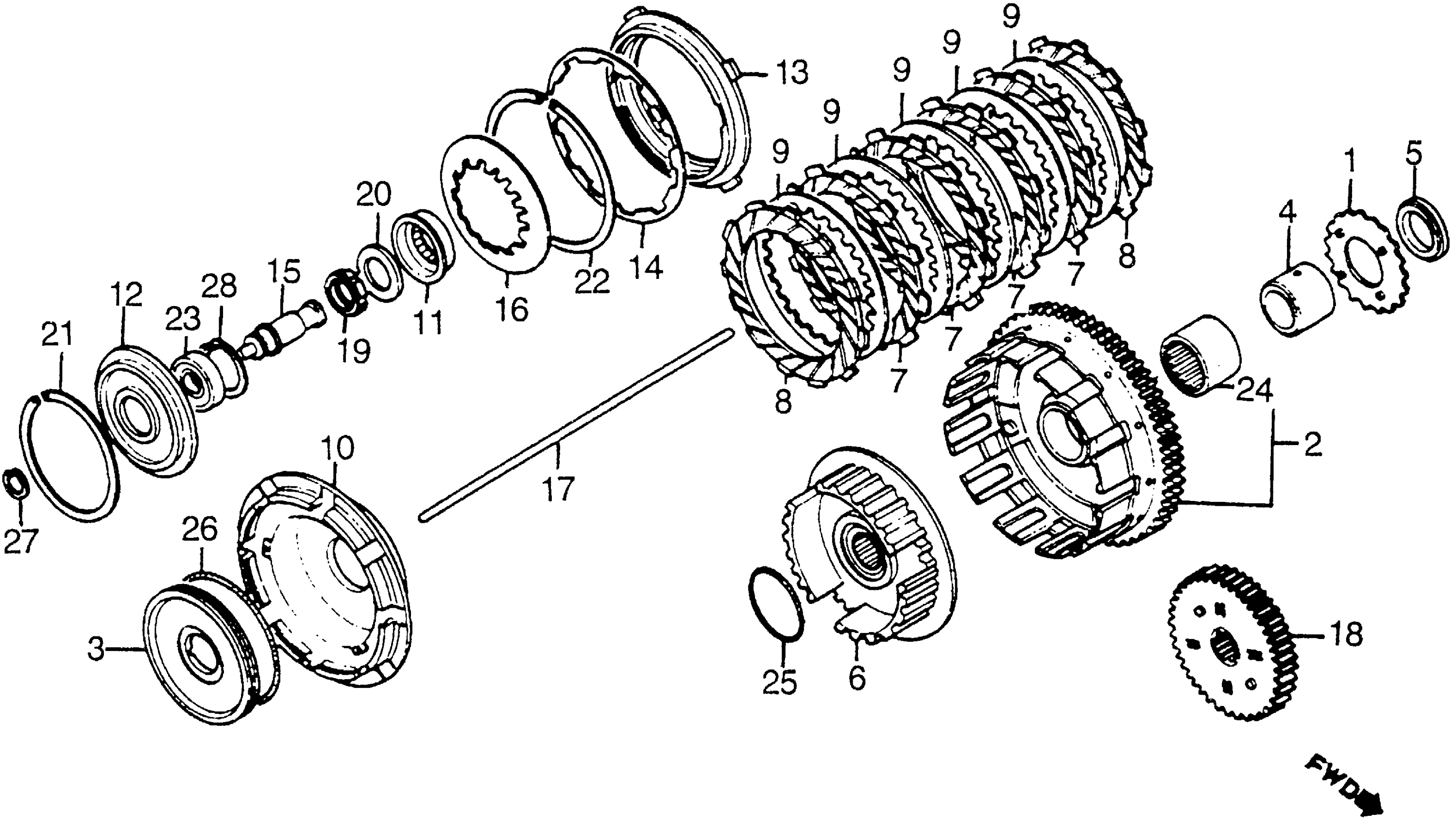

Honda VT1100CA (85) SHADOW 1100, USA, VIN# 1HFSC180-FA002276 TO 1HFSC180-FA006775 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T)

15131-MG8-000

Unavailable

2

CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22100-MG8-000.

22100-MG8-771

Unavailable

3

PISTON, CLUTCH

22111-MG8-000

Unavailable

4

GUIDE, CLUTCH (OUTER)

22116-MG8-000

Unavailable

5

COLLAR, DISTANCE

22117-MG8-000

Unavailable

6

CENTER, CLUTCH This part replaces 22120-MG8-000.

22120-MM8-000

Unavailable

6

CENTER, CLUTCH This part replaces 22120-MG8-010.

22120-MM8-000

Unavailable

7

DISK A, CLUTCH FRICTION | Use up to Engine SN 2002943 This part replaces 22201-MG8-000.

22201-MG8-010

$29.93

7

DISK A, CLUTCH FRICTION | Use up to Engine SN 2002943

22201-MG8-010

$29.93

7

DISK A, CLUTCH FRICTION

22201-MG8-010

$29.93

8

DISK, CLUTCH FRICTION | Use up to Engine SN 2002437

22201-MM5-000

$28.39

8

DISK, CLUTCH FRICTION

22201-MM5-000

$28.39

8

DISK, CLUTCH FRICTION | Use up to Engine SN 2002437 This part replaces 22202-MG8-000.

22201-MM5-000

$28.39

8

DISK, CLUTCH FRICTION | Use up to Engine SN 2002437 This part replaces 22202-MG8-010.

22201-MM5-000

$28.39

8

DISK, CLUTCH FRICTION This part replaces 22202-MG8-010.

22201-MM5-000

$28.39

9

PLATE, CLUTCH

22321-MG8-000

$15.44

10

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22351-MG8-000

Unavailable

11

GUIDE, SPRING This part replaces 22352-MG8-000.

22352-MM8-000

Unavailable

11

GUIDE, SPRING

22352-MM8-000

Unavailable

12

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22353-MG8-000

Unavailable

13

LIFTER B, CLUTCH This part replaces 22354-MG8-000.

22354-MM8-000

Unavailable

13

LIFTER B, CLUTCH

22354-MM8-000

Unavailable

14

SPRING, CLUTCH LIFTER

22355-MG8-000

Unavailable

15

PIECE, CLUTCH JOINT This part replaces 22366-MG8-000.

22366-MG8-010

Unavailable

15

PIECE, CLUTCH JOINT

22366-MG8-010

Unavailable

16

SPRING, CLUTCH

22441-MG8-000

Unavailable

17

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-MG8-000

Unavailable

18

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

23110-MG8-010

Unavailable

19

NUT, SPECIAL LOCK (25MM) (NOT AVAILABLE)

90050-MG8-003

Unavailable

20

WASHER, THRUST (25MM) (NOT AVAILABLE)

90403-MG8-000

Unavailable

21

CIRCLIP (INNER) (95MM)

90601-MB0-771

$11.30

21

CIRCLIP (INNER) (95MM) This part replaces 90601-MG8-000.

90601-MB0-771

$11.30

22

RING, SETTING (123MM)

90602-MG8-000

$15.30

23

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

23

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

23

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

23

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

24

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$86.11

24

BEARING, NEEDLE (35X42X30) (TOYO) This part replaces 91024-MB0-004.

91024-MB0-003

$86.11

25

O-RING (51.6X2.3) (ARAI)

91301-MG8-003

$2.92

26

O-RING (93.3X2.3) (ARAI)

91302-MG8-003

$5.54

27

CIRCLIP, OUTER (17MM)

94510-17000

$1.49

28

CIRCLIP (INNER) (35MM)

94520-35100

$1.72
