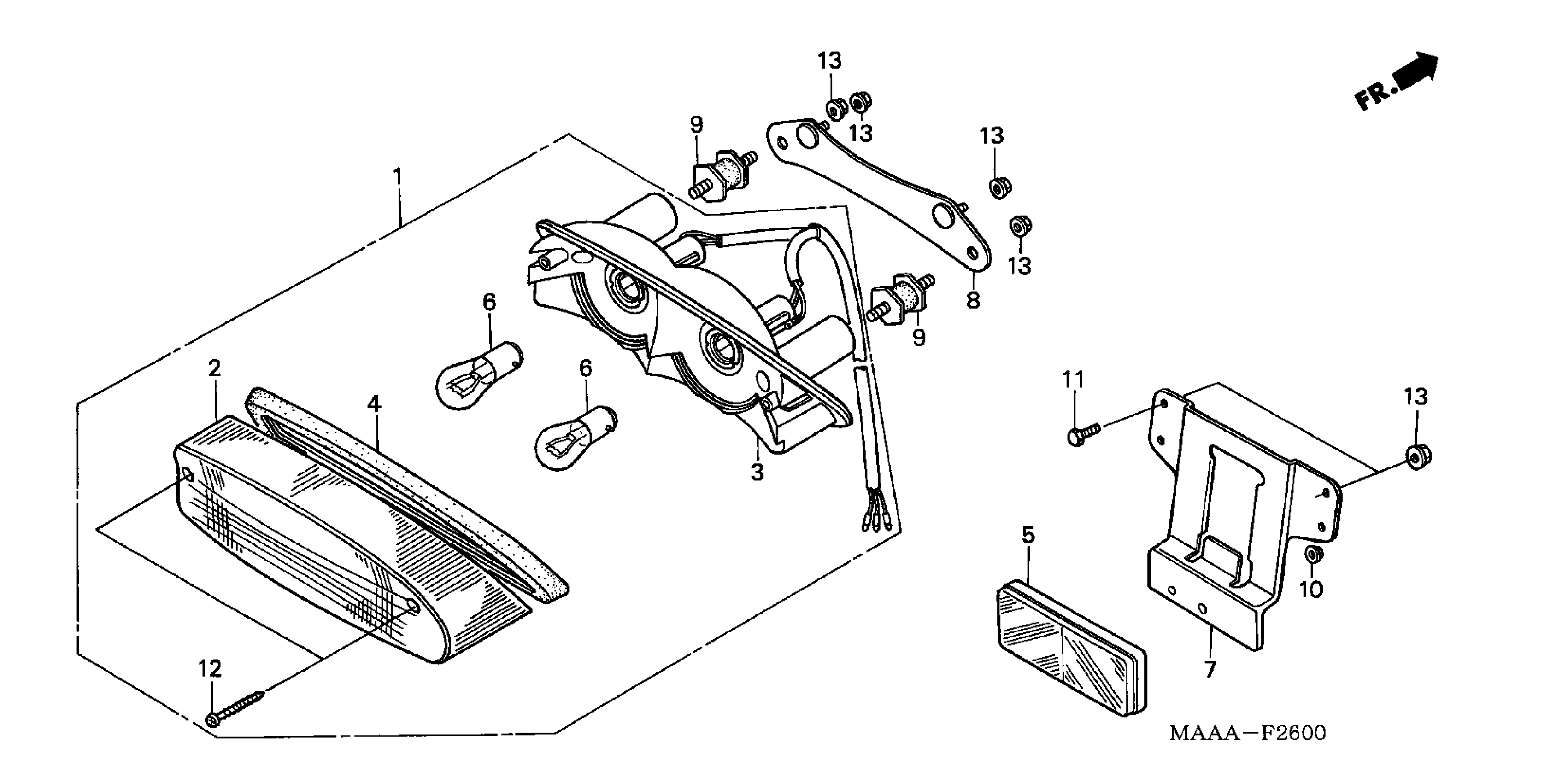

Honda VT1100CA (07) SHADOW SPIRIT, USA, VIN# 1HFSC180-7A100001 TAILLIGHT Diagram

TAILLIGHT UNIT

33701-MAA-A30

Unavailable

LENS, TAILLIGHT

33702-MM8-671

$54.30

BASE, TAILLIGHT

33704-MAA-A30

Unavailable

GASKET, TAILLIGHT

33709-MM8-671

Unavailable

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.40

STAY, RR. REFLECTOR

80102-MM8-010

Unavailable

STAY, TAILLIGHT

80103-MM8-000

Unavailable

RUBBER, OIL COOLER MOUNTING

85201-438-000

$13.73

NUT, FLANGE (5MM)

90301-MG8-000

$4.66

BOLT, HEX. (6X10)

92101-06010-0G

Unavailable

SCREW, TAPPING (4X30)

93901-34780

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49
