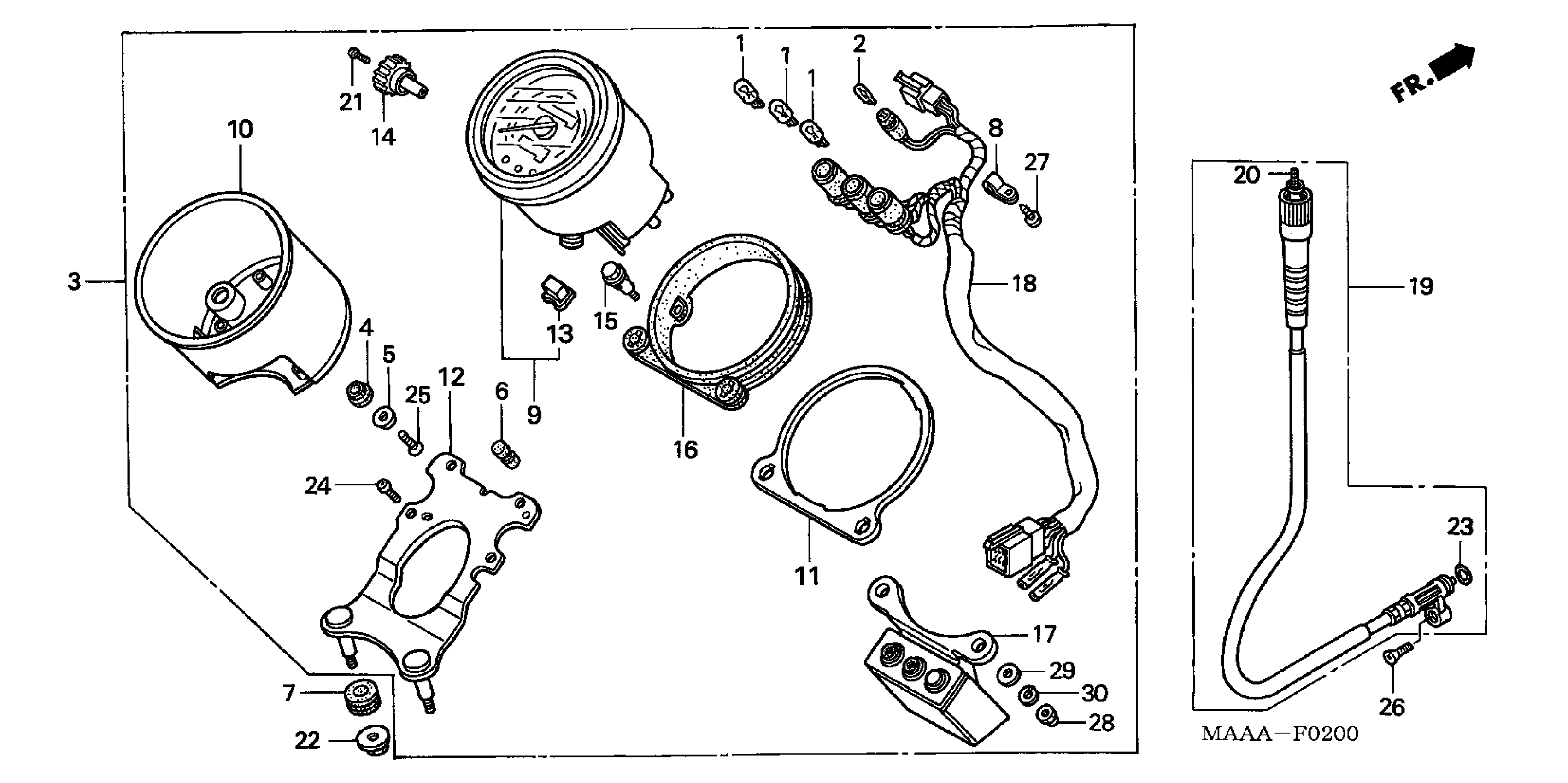

Honda VT1100CA (07) SHADOW SPIRIT, USA, VIN# 1HFSC180-7A100001 SPEEDOMETER Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

BULB, WEDGE BASE (T6.5) (12V 3W)

34908-KM1-671

$7.08

3

METER ASSY., COMBINATION

37100-MAA-A31

Unavailable

4

RUBBER, METER SETTING

37101-MB1-008

$2.92

5

WASHER

37102-MB1-008

$2.92

6

RUBBER, MOUNTING

37103-MAH-008

$4.38

7

RUBBER, METER MOUNTING

37111-MF5-000

$5.74

8

CLAMP

37121-KV3-008

$4.36

9

SPEEDOMETER ASSY.

37200-MAA-A31

Unavailable

10

COVER, METER

37204-MAH-008

$50.90

11

PLATE, SETTING

37211-MAH-A01

Unavailable

12

BRACKET

37212-MAH-008

Unavailable

13

GROMMET

37218-GE1-741

$6.70

14

KNOB, TRIP METER

37220-MB4-671

$15.48

15

BOLT, PILOT BOX SETTING

37225-MM8-008

$5.46

16

RUBBER, CUSHION

37242-MM8-008

Unavailable

17

BOX ASSY., PILOT This part replaces 37600-MAH-A01.

37600-MAH-B01

Unavailable

18

SOCKET

37619-MAA-A31

Unavailable

19

CABLE ASSY., SPEEDOMETER

44830-ME5-405

$30.35

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-ME5-850.

44830-ME5-405

$30.35

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-ME8-000.

44830-ME5-405

$30.35

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-MF5-000.

44830-ME5-405

$30.35

19

CABLE ASSY., SPEEDOMETER This part replaces 44830-MK3-000.

44830-ME5-405

$30.35

20

CABLE (INNER)

44831-KM1-000

Unavailable

20

CABLE (INNER) This part replaces 44831-MB1-300.

44831-KM1-000

Unavailable

20

CABLE (INNER) This part replaces 44831-ME1-670.

44831-KM1-000

Unavailable

21

SCREW, PAN (2X6)

90158-KM7-911

$1.92

22

NUT, FLANGE (6MM)

90302-187-000

$2.39

23

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

23

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

23

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

24

SCREW, PAN (4X8)

93500-04008-0A

$1.49

24

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

25

SCREW, OVAL (4X8)

93700-04008-0B

$1.49

26

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

27

SCREW, TAPPING (4X12)

93903-34320

$1.49

28

NUT, CAP (5MM)

94021-05020-0S

$1.49

29

WASHER, PLAIN (5MM)

94103-05000

$1.49

30

WASHER, SPRING (5MM)

94111-05000

$1.49
