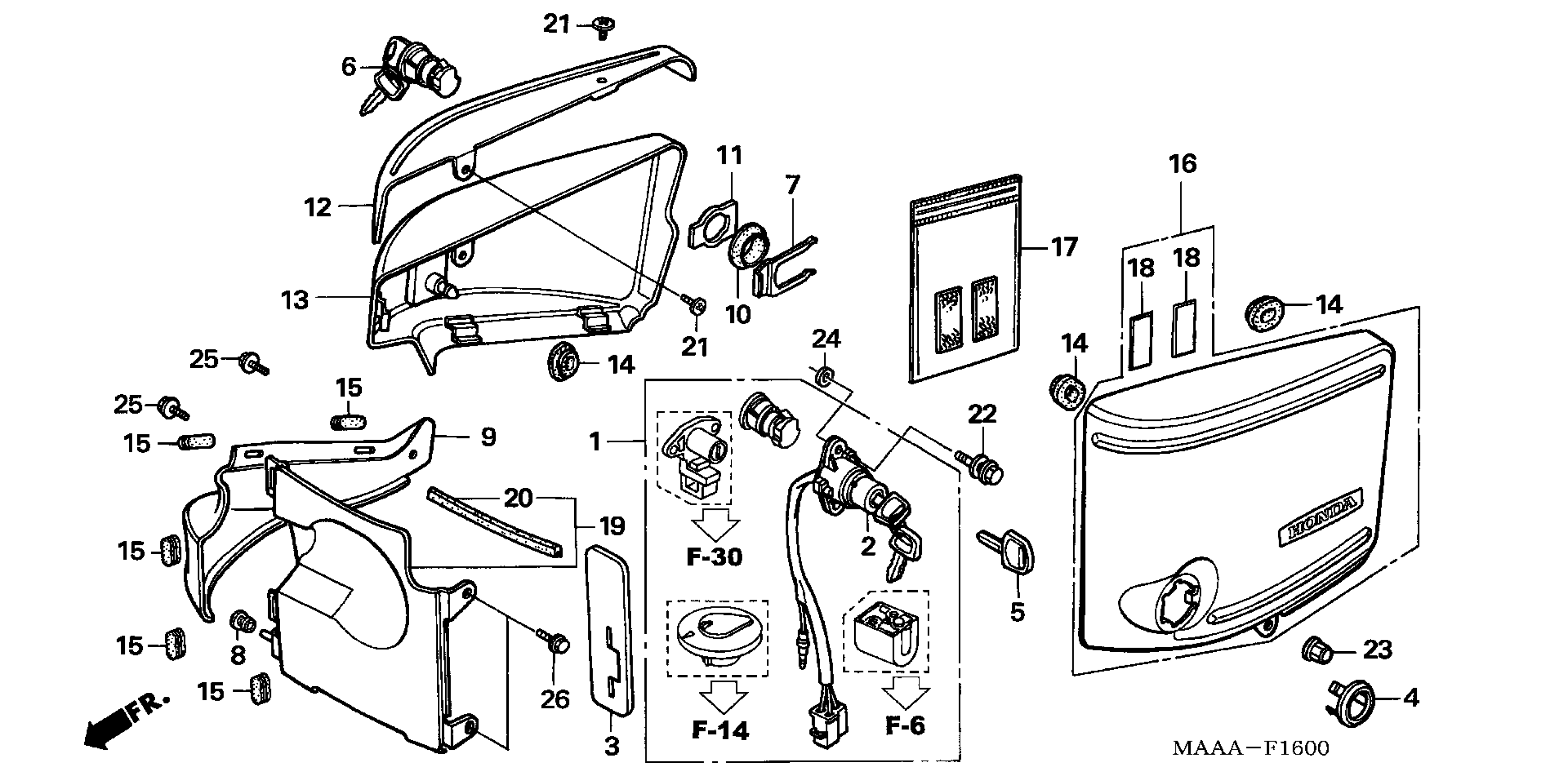

Honda VT1100CA (07) SHADOW SPIRIT, USA, VIN# 1HFSC180-7A100001 SIDE COVER Diagram

LOCK SET

35010-MAA-A30

Unavailable

SWITCH ASSY., COMBINATION

35100-MCK-A00

$69.19

COVER, IGNITION SWITCH

35104-MM8-000

Unavailable

RING, IGNITION SWITCH

35106-MM8-000

$41.42

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$9.74

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$9.74

LOCK, FILLER LID

37220-439-007

$54.29

SPRING, LOCK KEY SETTING

37222-463-000

$8.05

BUSH, ARM

52237-GJ5-003

Unavailable

COVER B, R. SIDE

83501-MM8-000

$284.30

RUBBER, SIDE COVER LOCK

83502-MM8-000

$17.90

COLLAR, LOCK SET

83503-MM8-000

$1.49

COVER, SIDE (OUTER) This part replaces 83510-MM8-880.

83510-MM8-000

Unavailable

COVER SET A, R. SIDE (WL)

83550-MAA-B00

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

GROMMET, SIDE COVER

83602-MM8-000

$4.43

COVER ASSY., L. SIDE

83610-MAA-B00

Unavailable

BAG, OWNER'S MANUAL

83642-MAH-A40

$3.13

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.92

COVER, CENTER

83700-MAA-A00

$569.05

RUBBER, PROTECTOR

83701-MAA-A00

$4.65

SCREW, SPECIAL (5X12)

90001-MG9-670

$4.94

BOLT, BREAK OFF (6MM)

90107-KR3-630

$9.89

NUT, CAP (6MM)

90304-ML0-000

Unavailable

COLLAR, SEAT

91552-763-A00

$2.65

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
