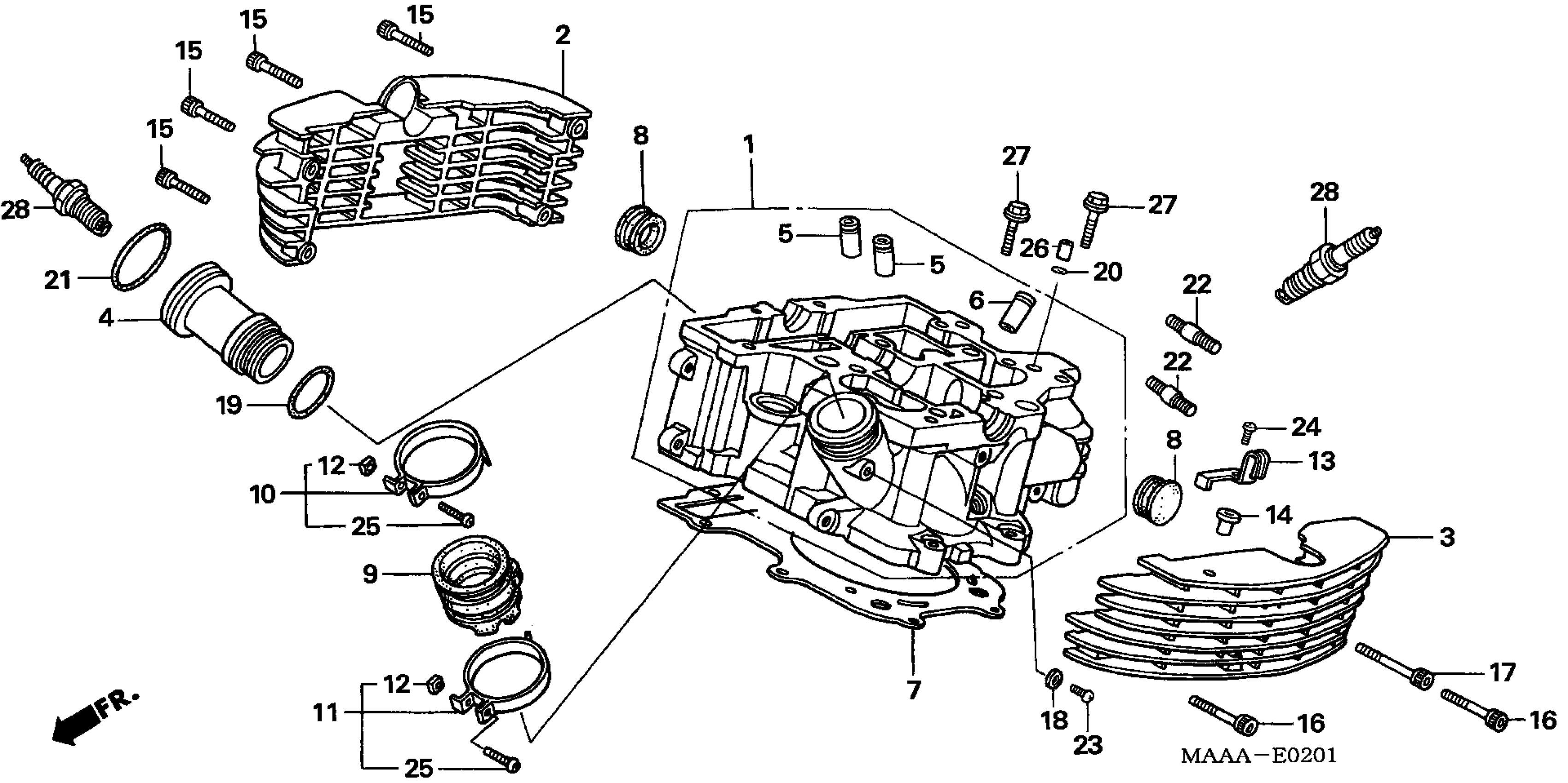

Honda VT1100CA (07) SHADOW SPIRIT, USA, VIN# 1HFSC180-7A100001 REAR CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD, RR.

12220-MAA-L80

$786.28

2

FIN A, RR. CYLINDER HEAD

12222-MAH-G40

$207.41

3

FIN B, RR. CYLINDER HEAD

12223-MAH-G40

$945.85

4

SLEEVE, PLUG

12225-MG8-000

$35.91

5

GUIDE, VALVE

12231-MG8-305

$19.68

6

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

6

GUIDE, IN VALVE

12233-MG8-405

Unavailable

7

GASKET, CYLINDER HEAD

12251-MAH-003

$35.25

8

PLUG, CAMSHAFT

12312-ME9-750

$9.33

9

INSULATOR, CARBURETOR

16211-MAH-000

$21.61

10

BAND A, INSULATOR

16218-MAH-000

$9.71

11

BAND B, INSULATOR

16219-MAH-000

Unavailable

12

NUT, SQUARE (5MM)

16222-MV4-300

$1.99

13

CLIP, IGNITION WIRE

32905-MAH-000

$15.56

14

NUT (5MM)

64528-KV3-000

$8.13

15

BOLT, SOCKET (6X20)

90001-MCK-U50

$2.09

16

BOLT, SOCKET (6X35)

90003-MCK-U50

$2.09

17

BOLT, SOCKET (6X45)

90101-MAZ-000

$2.15

18

WASHER, SEALING (5MM)

90452-323-000

$1.54

19

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.15

20

O-RING (9.8X2.7) (NOK)

91309-MJ0-005

$3.87

21

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.63

22

BOLT, STUD (8X35)

92900-08035-0B

$2.44

22

BOLT 2, STUD (8X35) This part replaces 92900-08035-0E.

92900-08035-0B

$2.44

23

SCREW, PAN (5X8)

93500-05008-0A

$0.81

24

SCREW, PAN (5X12)

93500-05012-0G

$0.84

25

SCREW, PAN (5X25)

93500-05025-0G

$0.69

26

PIN, DOWEL (10X12)

94301-10120

$2.80

27

BOLT, FLANGE (6X35)

95701-06035-00

$1.74

28

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.00

28

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.28

28

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.00

28

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.28

28

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.00

28

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.28
